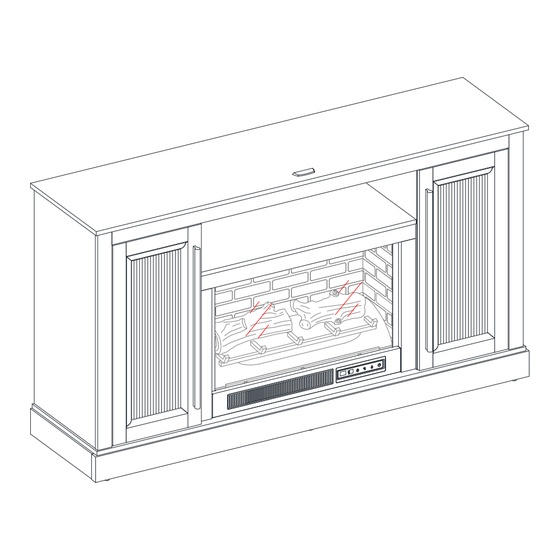

Lansing 60" Fireplace Console

If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the

store where it was purchased. Please call our toll-free customer service number and have your

instructions and parts list ready to provide the model name, part name or factory number:

Or visit our web site 24 hours a day, 7 days a week for product assistance at

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.

Model # MNFP60BD26HLABR

# MNFP60BD26HLAGY

ADULT ASSEMBLY REQUIRED

Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday

www.whalenfurniture.com

Or e-mail your request to parts@whalenfurniture.com

PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Date: 2024-06-28

1-866-942-5362

Rev. 0001-A

LOT NUMBER:

DATE PURCHASED: /

Need help?

Do you have a question about the LANSING MNFP60BD26HLABR and is the answer not in the manual?

Questions and answers

Summary of Contents for Whalen LANSING MNFP60BD26HLABR

Page 1 LOT NUMBER: DATE PURCHASED: / Lansing 60” Fireplace Console Model # MNFP60BD26HLABR # MNFP60BD26HLAGY ADULT ASSEMBLY REQUIRED If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased. Please call our toll-free customer service number and have your instructions and parts list ready to provide the model name, part name or factory number: 1-866-942-5362 Pacific Standard Time: 8:30 a.m.
Page 2 IMPORTANT Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-abrasive surface. You will need the parts identified on page 3, 4 and 5 of this instruction manuals. NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH THE DOWELS. EXCESS GLUE CAN BE WIPED OFF WITH A DAMP CLOTH.
Page 3 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Heater B- Left Upright Arm C- Right Upright Arm (Qty. 1) (Qty. 1) (Qty. 1) D- Connector Strap E- Ember Bed F- Left Log (Qty.
Page 4 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. S- Left Side Panel T- Left Partition U- Right Side Panel (Qty. 1) (Qty. 1) (Qty. 1) V- Right Partition W- Media Shelf X- Middle Crossbar...
Page 5 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. (1) M4 x 10 mm Insert Screw (2) Cam Lock (3) Cam Bolt (Qty. 10+1 extra) (Qty. 47+2 extra) (Qty.
Page 6 Assembly Instructions 1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a carpeted floor or the empty carton to avoid any scratch. 2. Securely screw fourteen Cam Bolts (3) into the designated small holes on the Top Panel (K) and both Side Panels (S and U) with a Phillips screwdriver.
Page 7 Assembly Instructions The wood dowels face upward. The cam lock housings face inward. 4. Orient and attach the Top Stretcher (L) between the Side Panels (S and U) by engaging and tightening two Cam Locks (2) with a Phillips Screwdriver. (Refer to page 2 on Cam Lock system operation supplement).
Page 8 Assembly Instructions 6. Securely screw thirteen Cam Bolts (3) into the designated small holes on both Partitions (T and V) and the Media Shelf (W) with a Phillips screwdriver. 7. Glue twelve Wood Dowels (4) into the inner holes on both Partitions (T and V) and Media Shelf (W) at both ends.
Page 9 Assembly Instructions 8. Glue six Wood Dowels (4) into the designated holes on the Middle Crossbar (X) and Middle Trims (Y). The cam lock housing face inward 9. Orient and attach one Middle Crossbar (X) to the Media Fixed Shelf (W) by engaging and tightening three Cam Locks (2) using a Phillips screwdriver.
Page 10 Assembly Instructions The cam lock housings face inward 10. Orient and attach the Middle Trims (Y) to the Partitions (T and V) respectively by engaging and tightening four Cam Locks (2) using a Phillips screwdriver. 11. Orient and attach the assembled Media Shelf (W) and Middle Crossbar (X) between the Partitions (T and V) by engaging and tightening six Cam Locks (2).
Page 11 Assembly Instructions 12. Align and attach the previous assembly to the Top Panel (K) by engaging and tightening four Cam Locks (2). 13. Securely screw sixteen Cam Bolts (3) into the designated small holes on the Bottom Panel (M) and Skirting Panels (N, P and Q) with a Phillips screwdriver.
Page 12 Assembly Instructions 14. Glue thirteen Wood Dowels (4) into the designated holes on the Skirting Panels (N, O, P and Q) and Bottom Middle Stretcher (R). The cam lock housings face inward. 15. Align and attach the Rear Skirting (O) between the Side Skirtings (P and Q) by engaging and tightening two Cam Locks (2).
Page 13 Assembly Instructions 16. Attach the Bottom Middle Stretcher (R) to the Front Skirting (N) by engaging and tightening one Cam Lock (2). 17. Attach the assembled Front Skirting (N) to both Side Skirtings (P and Q) with two Cam Locks (2). 18.
Page 14 Assembly Instructions 180° 19. Align and attach the previous assembly to the Bottom Panel (M) by engaging and tightening eleven Cam Locks (2). 180° 20. Turn the assembled right base upright. 21. Securely screw four Cam Bolts (3) into the designated small holes on the top surface of the Bottom Panel (M) using a Phillips screwdriver.
Page 15 Assembly Instructions Floor Leveler 22. Using the wood dowels as a guide, orient and attach the Bottom Panel (M) to the assembled Side Panels (S and U) by engaging and tightening four Cam Locks (2) with a Phillips screwdriver. 23. Insert four 50 mm Pan Head Screws (6) through the mounting holes on the Bottom Panel (M) and securely screw into the Partitions (T and V) with a Phillips screwdriver.
Page 16 Assembly Instructions 180° 24. Ask for assistance to flip around the previous assembly at its front edges. 25. Using the pilot holes as a guide, attach two Mending Plates (8) at the joints where the Middle Crossbar (X) meets the Middle Trims (Y) with two 12 mm Screws (7) per plate. 26.
Page 17 Assembly Instructions 90° 28. Ask for assistance to lift the assembled unit upright and position it near the final location. 29. Insert the Shelf Pins (12) into the holes at the desired height inside each side compartment. Make sure you place the four Shelf Pins (12) at the same level to level the shelf. Tilt and rest the Adjustable Shelves (Z) onto the Shelf Pins (12) properly.
Page 18 Assembly Instructions Depth Vertical Horizontal Adjustment Adjustment Adjustment 31. Pick up the Doors (A1) and attach the extended hinge arms to the hinge bases installed on the Side Panels (S and U). Loosen the bolt on the back of hinge base for an easy fit. 32.
Page 19 Assembly Instructions Figure A Figure B IMPORTANT NOTE: Use hand screwdriver, not power driver to assemble fireplace insert. See BILT for video instructions. 36. See figure A: Fasten upper 2 Insert Screws (1) through the Upright Arm (C) into the Heater (A) until tight.
Page 20 Assembly Instructions USB cable 43. Set the Ember Bed (E) onto the Heater (A) as shown. 44. Push ember bed forward against the front flange of heater. 45. Position the USB cable as shown. U-channels 46. Fold the Wall Panel (H) as shown. Then position yourself at back side of Heater (A). 47.
Page 21 Assembly Instructions 50. Fully plug the USB connector of the Ember Bed (E) into the back port of Heater (A). The warning labels on glass should face outward. 51. Slide the Glass (I) into the inner U-channels on both Upright Arms (B and C) until the glass sits onto the Heater (A).
Page 22 Assembly Instructions The bevel edge faces inside the unit. 52. Position Top Connector Strap (D) over the Glass (I) and Upright Arms (B and C). Follow orientation shown above. 53. Fasten Connector Strap (D) to both Upright Arms (B and C) using two Insert Screws (1) as shown above.
Page 23 Assembly Instructions 54. Lift the fireplace insert carefully into the back of the assembled mantel and centre it on the bottom panel in the opening. 55. Using the pilot holes as a guide, fasten two L-Shaped Metal Brackets (9) onto the Firebox Support (D1) with four 12 mm Pan Head Screws (10).
Page 24 Assembly Instructions Wooden stud Wall Long screw Wall Wall Metal bracket Short screw Connector Wall Steel cable Floor leveler Tools required (not provided): Phillips screwdriver, stud finder, tape measure, pencil, power drill and 1/8” drill bit. 59. Ask for assistance to position the assembled fireplace at the desired location against a wall. If necessary, adjust the floor levelers to correct the tilting and level the doors.
Page 25 Care and Maintenance  Use a soft, clean cloth that will not scratch the surface when dusting.  Use of furniture polishes is not necessary. Should you choose to use polishes, test first in an inconspicuous area.  Using solvents of any kind on your furniture may damage the finish. ...
Page 26 Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
