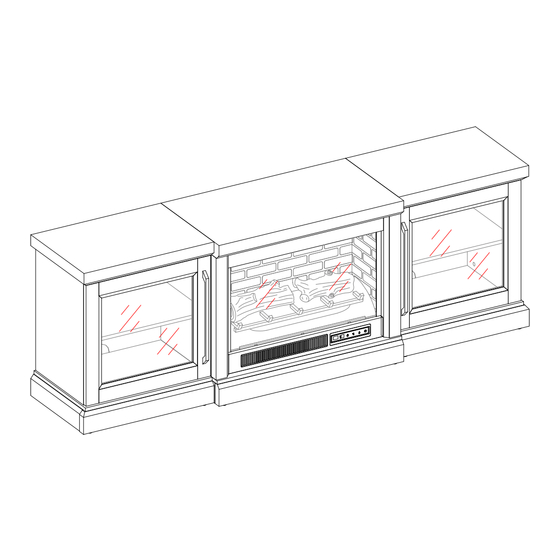

Stillwater 75" Fireplace Console
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
Model # MNFP75MPK26HLA
ADULT ASSEMBLY REQUIRED
1-866-942-5362
www.whalenfurniture.com
Or e-mail your request to parts@whalenfurniture.com
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date: 2024-08-08
LOT NUMBER:
DATE PURCHASED: /
Rev. 0001-A
/

Advertisement

loading
Need help?

Need help?

Do you have a question about the Stillwater MNFP75MPK26HLA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Whalen Stillwater MNFP75MPK26HLA

Summary of Contents for Whalen Stillwater MNFP75MPK26HLA

  • Page 1 LOT NUMBER: DATE PURCHASED: / Stillwater 75” Fireplace Console Model # MNFP75MPK26HLA ADULT ASSEMBLY REQUIRED If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased. Please call our toll-free customer service number and have your instructions and parts list ready to provide the model name, part name or factory number: 1-866-942-5362 Pacific Standard Time: 8:30 a.m.
  • Page 2 IMPORTANT Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non- abrasive surface. You will need the parts identified on page 3, 4, 5 and 6 of this instruction manual. NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH DOWELS.
  • Page 3 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Heater B- Left Upright Arm C- Right Upright Arm (Qty. 1) (Qty. 1) (Qty. 1) D-Connector Strap E- Ember Bed F- Left Log (Qty.
  • Page 4 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. S- Middle Left Bottom Stretcher T- Middle Right Bottom Stretcher U- Firebox Holder (Qty. 1) (Qty. 1) (Qty.
  • Page 5 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. K1- European Hinge L1- Handle (1) M4 x 10 mm Insert Screw (Qty. 4) (Qty. 2) (Qty. 10+1 extra) (2) Cam Lock (3) Cam Bolt (4) M8 x 30 mm Wood Dowel...
  • Page 6 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. (17) Door Stopper (18) Plastic Connector (19) Shelf Support (Qty. 2) (Qty. 8) (Qty. 8+1 extra) (20) M8 x 20 mm Wood Dowel (21) 5/32”...
  • Page 7 Assembly Instructions NOTE: Please do not fully tighten all cam locks and screws until you finish assembling all parts. Once assembled, go back and fully tighten all cam locks and screws. This will make the assembly easier. 1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a carpeted floor or the empty carton to avoid any scratch.
  • Page 8 Assembly Instructions The cam lock housings face inward. 4. Align and attach the Middle Rear Skirting (R) between the Middle Bottom Stretchers (S and T) by engaging two Cam Locks (2). Turn the cam locks with a Phillips screwdriver until securely locked onto the cam bolts.
  • Page 9 Assembly Instructions Floor leveler 180° 6. Align and attach the previous assembly to the Middle Bottom Panel (P) by engaging ten Cam Locks (2). 180° 7. Stand the assembled middle base upright. 8. Securely screw four Cam Bolts (3) into the designated small holes on the top surface of Middle Bottom Panel (P) using a Phillips screwdriver.
  • Page 10 Assembly Instructions 9. Securely screw eleven Cam Bolts (3) into the designated small holes on the Middle Top Panel (K) and Middle Trims (N) using a Phillips screwdriver. 10. Glue eighteen 30 mm Wood Dowels (4) into the designated inner holes on the Partitions (L and M), Middle Crossbar (O) and Middle Trims (N) as shown.
  • Page 11 Assembly Instructions The outer edges are even. The outer edges are even. 11. Orient and attach the Middle Trims (N) to the Partitions (L and M) respectively with four Cam Locks (2). The trims face inward and run against the middle front skirting. 12.
  • Page 12 Assembly Instructions The cam lock housings face inward. 13. Orient and attach the Middle Crossbar (O) to the Middle Top Panel (K) by engaging and tightening three Cam Locks (2). Floor leveler 14. Properly position the Middle Top Panel (K) so that the cam bolts enter the holes in the top edge of both Partitions (L and M) and fasten them into place by engaging four Cam Locks (2).
  • Page 13 Assembly Instructions 15. Using the pilot holes as a guide, attach one Door Stopper (17) to the outer side of each Partition (L and M) respectively with two 12 mm Screws (6). 16. Fit the extruding pin into the no-threaded hole and fasten four Plastic Connectors (18) to each Side Stand Bottom Stretcher (G1) with four 12 mm Bolts (8).
  • Page 14 Assembly Instructions 17. Securely screw sixteen Cam Bolts (3) into the designated small holes on both Side Bottom Panels (W and B1) and Side Skirtings (X, Z, C1 and E1) using a Phillips screwdriver. 18. Glue sixteen 30 mm Wood Dowels (4) into the designated holes on the Side Skirtings (X, Y, Z, C1, E1 and D1).
  • Page 15 Assembly Instructions 19. Align and attach the Left Side Skiring (Z) to the Left Rear Skriting (Y) by engaging one Cam Lock (2). 20. Combine the Right Side Skirting (E1) with the Right Rear Skirting (D1) with one Cam Lock (2). 21.
  • Page 16 Assembly Instructions 23. Align and attach the Side Front Skirtings (X and C1) to Side Skirtings (Z and E1) by engaging two Cam Locks (2). 24. Insert two 12 mm Bolts (8) through the Plastic Connectors installed on the Side Stand Bottom Stretchers (G1) and screw into Side Front Skirtings (X and C1).
  • Page 17 Assembly Instructions 27. Insert four 12 mm Bolts (8) through the Plastic Connectors (18) installed on the Side Stand Bottom Stretchers (G1) and securely screw into both Side Bottom Panels (W and B1). 180° 180° 28. Turn the assembled side bases upright. 29.
  • Page 18 Assembly Instructions 30. Securely screw four Cam Bolts (3) into the designated small holes on the Side Top Panels (V and A1) using a Phillips screwdriver. 31. Glue twelve 30 mm Wood Dowels (4) into the inner holes of both Side Top Panels (V and A1) and two Side Panels (F1).
  • Page 19 Assembly Instructions The hinge mounting holes The hinge mounting holes face inward and are located at face inward and are located at front side. front side. 32. Orient and attach the Side Panels (F1) to the Side Bottom Panels (W and B1) respectively by engaging and tightening four Cam Locks (2), using a Phillips Screwdriver.
  • Page 20 Assembly Instructions 35. Glue four 20 mm Wood Dowels (20) into the designated holes on the Side Stand Bottom Stretchers (G1). 36. Line up the assembled units on a level and protected surface and combine them together, using the inserted wood dowels as a guide. 37.
  • Page 21 Assembly Instructions 39. Proceed to insert four 50 mm Bolts (10) with the Washers (11 and 12) through the mounting holes on the subframe of Middle Top Panel (K) and screw into both Side Top Panels (V and A1). The countersunk holes face outward. 180°...
  • Page 22 Assembly Instructions The adhesive tapes face outward. 42. Go back and securely tighten all the fasteners. Make sure that all the parts are tight and there are no gaps between the parts. This will help keep the unit square. 43. Unfold the Back Panels (I1) and align the pre-drilled holes against the upper edges with the pilot holes on the back of Side Top Panels (V and A1).
  • Page 23 Assembly Instructions 47. Extend the European Hinges (K1) and rest two hinge cups onto the cutouts of each Door (J1). Secure the European Hinges (K1) in place by using two 15 mm Nickel Screws (7) in each. 48. Attach one Handle (L1) to the front of each Door (J1) with two 25 mm Handle Bolts (21).
  • Page 24 Assembly Instructions Depth Adjustment Vertical Adjustment Round hole Oval hole Horizontal Adjustment 49. Pick up one Door (J1) and align the hinge bases with the pilot holes on the left stand Side Panel (F1). 50. Insert two 15 mm Nickel Screws (7) through the CENTER of oval holes and move the door up or down to the desired position, then fasten the Hinge Bases (K1) into place.
  • Page 25 Assembly Instructions Figure B Figure A IMPORTANT NOTE: Use hand screwdriver, not power driver to assemble fireplace insert. See BILT for video instructions. 56. See figure A: Fasten upper 2 Insert Screws (1) through the Upright Arm (C) into the Heater (A) until tight.
  • Page 26 Assembly Instructions USB cable 63. Set the Ember Bed (E) onto the Heater (A) as shown. 64. Push ember bed forward against the front flange of heater. 65. Position the USB cable as shown. U-channels 66. Fold the Wall Panel (H) as shown. Then position yourself at back side of Heater (A). 67.
  • Page 27 Assembly Instructions 70. Fully plug the USB connector of the Ember Bed (E) into the back port of Heater (A). The warning labels on glass should face outward. 71. Slide the Glass (I) into the inner U-channels on both Upright Arms (B and C) until the glass sits onto the Heater (A).
  • Page 28 Assembly Instructions The bevel edge faces inside the unit. 72. Position Top Connector Strap (D) over the Glass (I) and Upright Arms (B and C). Follow orientation shown above. 73. Fasten Connector Strap (D) to both Upright Arms (B and C) using two Insert Screws (1) as shown above.
  • Page 29 Assembly Instructions 74. Lift the fireplace insert carefully into the back of the assembled mantel and centre it on the Middle Bottom Panel (P) in the opening. 75. Use the pilot holes as a guide, fasten two L-Shaped Metal Brackets (15) onto the Firebox Holder (U) with four 12 mm Pan Head Screws (16).
  • Page 30 Assembly Instructions Wall Wooden stud Wall Metal bracket Long screw Short screw Connector Steel cable Floor leveler Tools required (not included): Phillips screwdriver, stud finder, tape measure, pencil, power drill and 1/8” drill bit. 77. Ask assistance to position the assembled unit at the desired location and adjust the pre-attached floor levelers to correct the tilting and level the doors against a wall.
  • Page 31 Care and Maintenance  Use a soft, clean cloth that will not scratch the surface when dusting.  Use of furniture polishes is not necessary. Should you choose to use polishes, test first in an inconspicuous area.  Using solvents of any kind on your furniture may damage the finish. ...
  • Page 32 Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
