ST STM32WB07 Manual page 9

Printed antenna
RF connector
(not fitted in production)
ST morpho
(CN3)
RF shield
ARDUINO® Power
(CN5)
ARDUINO® Analog
(CN7)
VDD jumper (JP2)
5 V source selector
User push-buttons
(B1, B2, and B3)
5 V power LED (LD4)
32 MHz HSE crystal (X1)
32.768 kHz LSE crystal (X2)
(SB3, L2, L3, C13, and C14)
RF shield boundary
UM3344 - Rev 1
Figure 3.
(JP1)

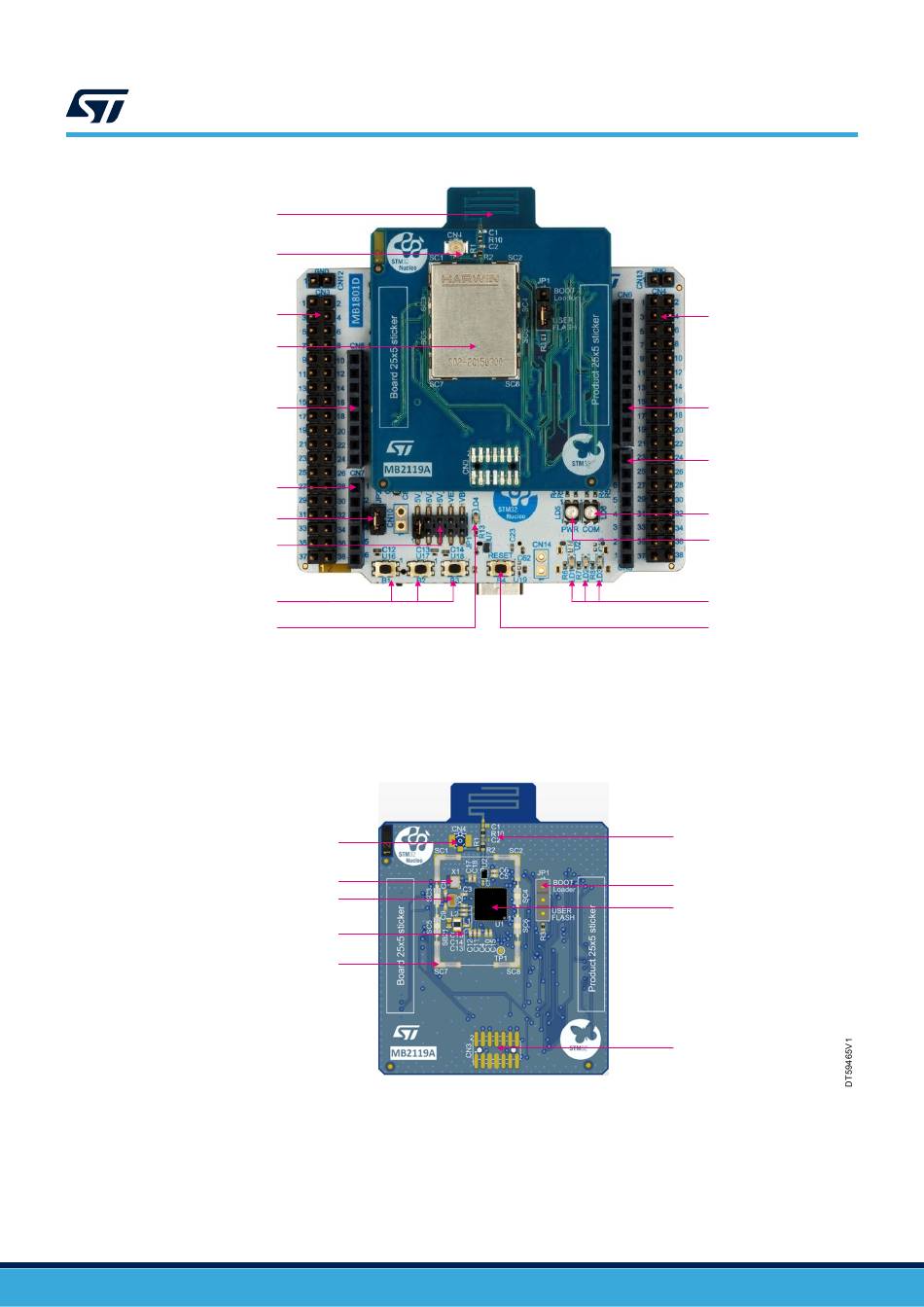

Figure 4. NUCLEO-WB07CC PCB details of the MCU RF board
RF connector
not mounted
(CN4)
SMPS block
NUCLEO-WB07CC PCB top view
UM3344
Hardware layout and configuration
ST morpho
(CN4)
ARDUINO® Digital
(CN6)
ARDUINO® Digital
(CN8)
ST-LINK
COM status LED (LD6)
ST-LINK
power status LED (LD5)
User LEDs
(LD1, LD2, and LD3)
Reset push-button (B4)
Matching network
(R2, C2, R10, and C1)
Jumper for Boot mode
selection (JP1)
STM32WB07 (U1)
MIPI10/STDC14
connector footprint
page 9/51
