Summary of Contents for All American Scoreboards MP-5298

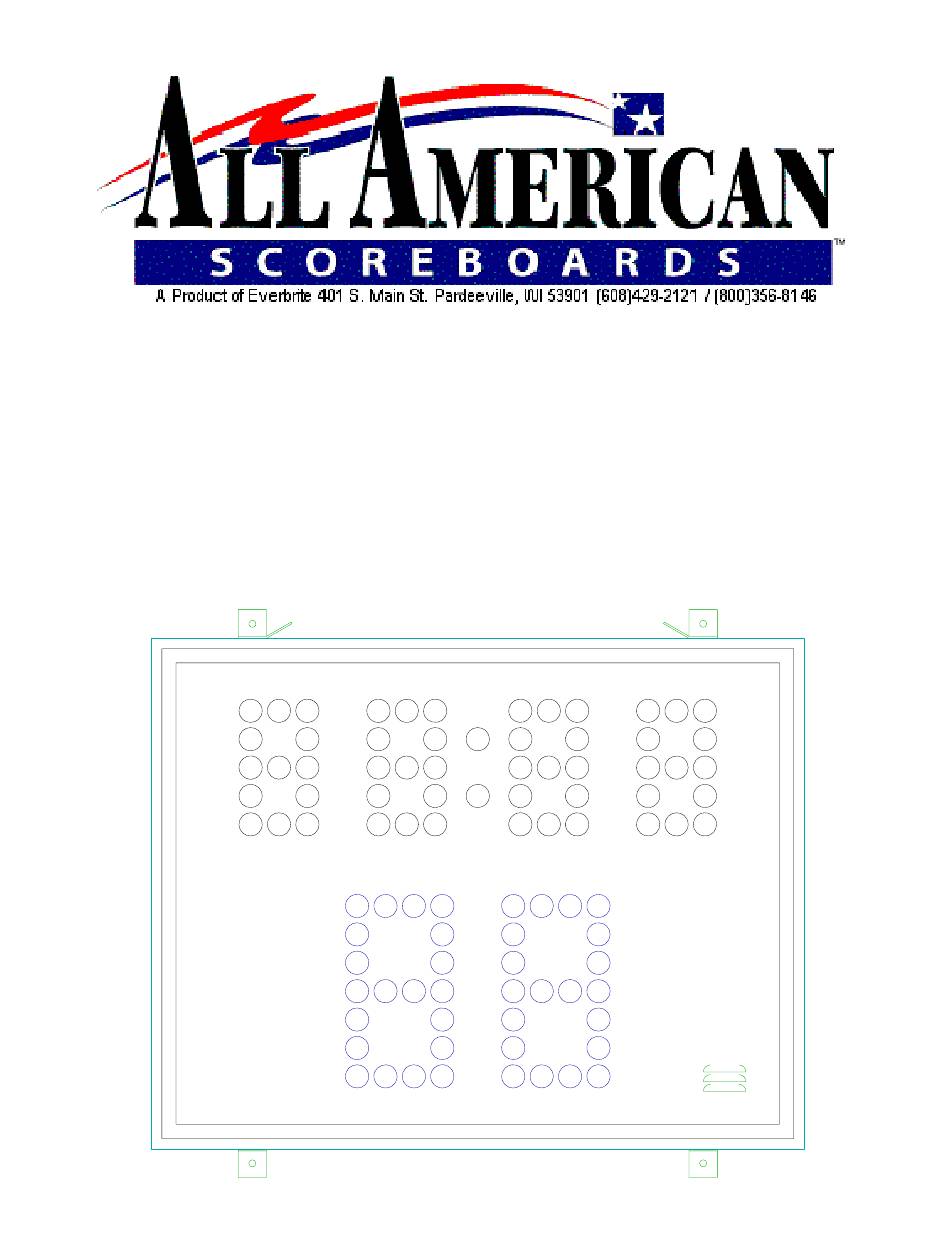

- Page 1 OPERATING INSTRUCTIONS AND SERVICE MANUAL BASKETBALL SHOTCLOCK WITH GAME TIMER MODEL MP-5298 EFFECTIVE S.N. 17200 , MAY 4, 2001...
- Page 2 TABLE OF CONTENTS General Information Description Identification Damage Damage Claim procedure Care of Equipment Installation General Information Inspection Pre-Test Data Cable Installation Electrical Connection Control Console Operation Shotclock Power Control Console Power Control Console Display Time Control Horn Operation Shotclock Goal Light Operation (OPTIONAL) Maintenance And Troubleshooting Introduction Test Equipment...
- Page 3 1. GENERAL INFORMATION Description Your All-American Scoreboard has been carefully inspected and tested before leaving the factory. It is possible, however, that components may be loosened or forced out of adjustment in transit. If this occurs, follow the troubleshooting guide (section 4). If equipment then fails to operate, contact immediately: ALL-AMERICAN Service Department EVERBRITE Corporation...
- Page 4 Damage Claim Procedure An instruction sheet is enclosed advising the Consignee in case of damage in transit. If damage is noted at time of delivery, Consignee must obtain an Inspection of Bad Order from the delivering carrier. In order to process your claim, this must be properly filled out with a complete statement of all damage and signed by the carrier.
- Page 5 2 ea Mounting Brackets ft Control Cable (If Ordered) IMPORTANT! The MP-41 cable supplied by ALL AMERICAN SCOREBOARDS for use on the Microprocessor based scoreboards is specifically designed for this system. Use of a substitute cable may void the warranty on the scoreboard!
- Page 6 IMPORTANT !!! To protect the control from damage, it is advisable to disconnect the control and store in a dry secure area when not in use. NOTE This equipment is CSA and NRTL approved and complies with the requirements in part 15 of the FCC rules for a class A computing device.
- Page 7 NOTE ! The shot clocks can be reset with the reset buttons on the main control or the hand held control. Any time up to 99 seconds may be preset in a similar manner. To start the shot clock place the toggle switch on the hand held control to the IN position.
- Page 8 Test Equipment A simple analog or digital voltmeter will be sufficient for all user repairable problems. Printed circuit boards requiring troubleshooting should be returned to the factory. Troubleshooting Whenever possible, follow the troubleshooting guides prior to contacting the customer service department. If a problem not described in the guides exists, contact the customer service department immediately.
- Page 9 (C) The scoreboard digits light, the console works, but there is no control of the scoreboard. (a) With the main power switch "off"; remove the cover over the power supply, and receiver. (b) Check all connections. (c) Turn the main power on. (d) Turn the control console on and enter the code.
- Page 10 5. REPLACEMENT PARTS LIST Shotclock Display Parts figure 1 DISPLAY ASSEMBLY...
- Page 11 REPLACEMENT PARTS LIST (MP-5298) fig.& MFG PART VENDOR index NUMBER DESCRIPTION PART # 150776 Display Assembly 150776 150820 Cluster, Red 150820 150822 Cluster, Green 150822 150840 Controller Assembly 150840 SEE FIGURE 2 151239 Face Panel 151239 703609 Horn, 350N 703609...
- Page 12 5.2 Controller Assembly Parts figure 2 CONTROLLER ASSEMBLY REPLACEMENT PARTS LIST (MP-5298) Controller Assembly fig.& MFG PART VENDOR index NUMBER DESCRIPTION PART # 150840 Controller Assembly 150840 BL00032P Power Supply, 12V 50 Watt 150635 PC Board Assy, 5000 Series Receiver 150635 ***** PROGRAM RX5.V102 *****...
- Page 13 6.1 Shotclock System Layout SYSTEM LAYOUT...
- Page 14 6.2 Junction Box Wiring JUNCTION BOX WIRING...
- Page 15 6.3 Display Wiring and Layout DISPLAY WIRING...
- Page 16 6.4 Power Supply Diagram POWER SUPPLY...
- Page 17 6.5 Receiver Board Diagram RECEIVER BOARD 6.6 Driver Board Diagram DRIVER BOARD...
- Page 18 6.7 Microprocessor LED Patterns (8 Bit) LED PATTERN...
- Page 19 6.8 Installation Diagram INSTALLATION DIAGRAM...
