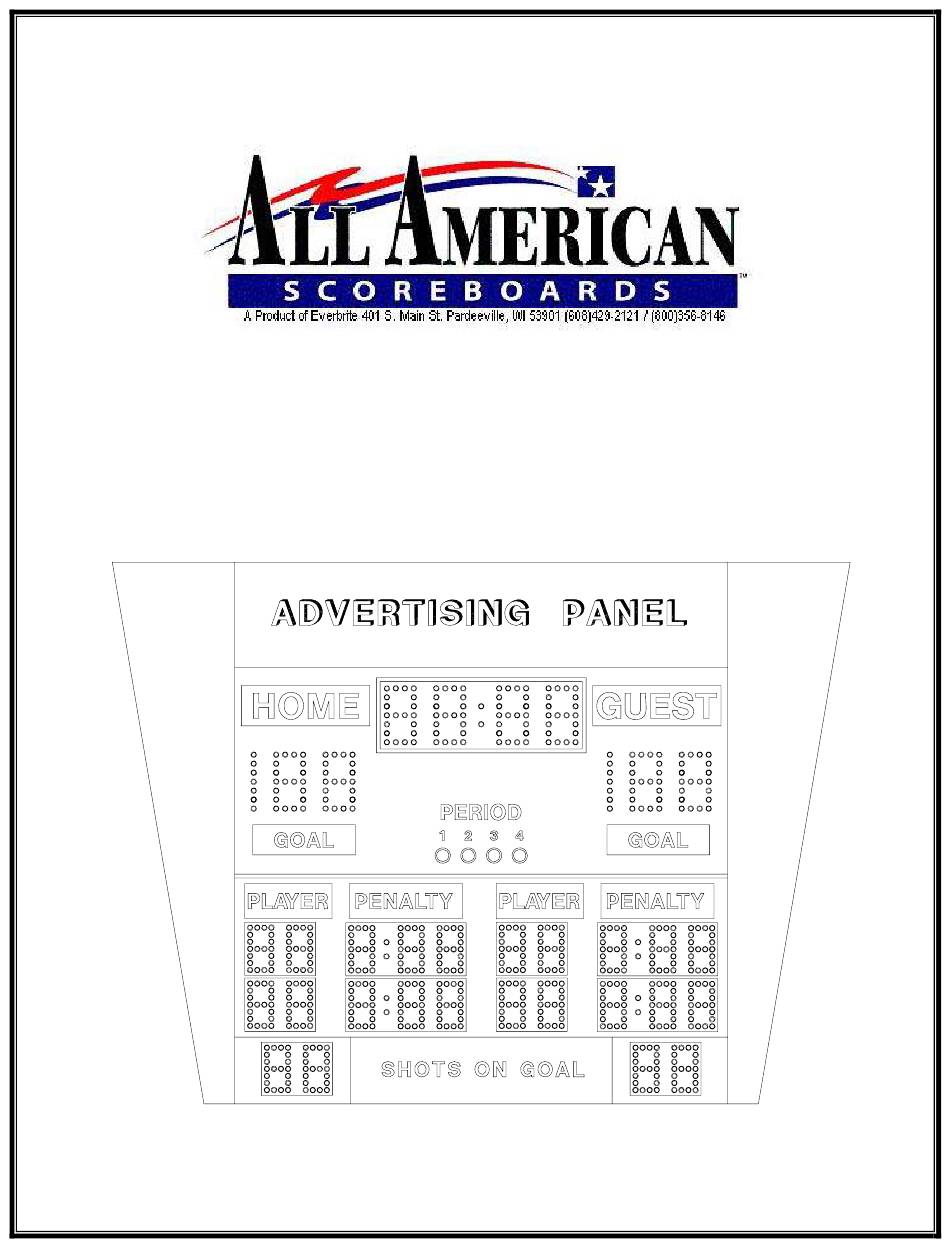

OPERATING INSTRUCTIONS AND SERVICE MANUAL
HOCKEY SCOREBOARD
MODEL MP-3589X WITH Shots On Goal Adder
And 199 Scoring
EFFECTIVE S.N.9840, JANUARY 26, 1995

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP-3589X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for All American Scoreboards MP-3589X

  • Page 1 OPERATING INSTRUCTIONS AND SERVICE MANUAL HOCKEY SCOREBOARD MODEL MP-3589X WITH Shots On Goal Adder And 199 Scoring EFFECTIVE S.N.9840, JANUARY 26, 1995...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS General Information Description Identification Damage Damage Claim procedure Installation General Information Inspection Pre-Test Data Cable Installation Electrical Connection Control Console Operation Scoreboard Power Control Console Display Control Console Power To Use Scoreboard Time Control Team Scores Goal Indicator Horn Operation Period Indicators 3.10 Time-Out Period...
  • Page 3: General Information

    1. GENERAL INFORMATION 1.1 DESCRIPTION Your All-American scoreboard has been carefully inspected and tested before leaving the factory. It is possible, however, that components may be loosened or forced out of adjustment in transit. If this occurs, follow the troubleshooting guide (section 4). If equipment then fails to operate, contact immediately: ALL-AMERICAN Service Department EVERBRITE LLC...
  • Page 4: Installation

    ? ft Control Cable (if ordered) IMPORTANT! The MP-41 cable supplied by ALL AMERICAN SCOREBOARDS for use on the Microprocessor based scoreboards is specifically designed for this system. Use of a substitute cable may void the warranty on the scoreboard! 2.2 Inspection...
  • Page 5: Pre-Test

    NOTE A small length of rubber hose may be used as a lamp extractor. Simply taper the inside of the hose with a sharp knife to fit the lamp. 2.3 Pre-Test Before installing the scoreboard, pre-test all functions. 2.4 Data Cable Installation The MP-41 data cable carries only low voltage signals and therefore can be installed with or without conduit.
  • Page 6: To Use Scoreboard

    3.3 Console Power Plug the control console cable into the wall junction box. Push ON/OFF once to turn the console on. Push ON/OFF a second time to shut the console off. When first turned on; the console display should show as follows. SCOREBOARD CONTROL 1991 VERSION 3.3 3.4 To Use Scoreboard For Hockey...
  • Page 7: Goal Indicator

    (B) To directly enter or correct a score: Push Home or Guest SCORE followed by the desired number, then ENTER . Example: Present Home Score is 15. Change the score from 15 to 23. Push: Home SCORE ENTER . (C) To clear the score: Push SCORE CLEAR .
  • Page 8 PEN ON . 3.12 Basketball Operation When using the MP-3589X scoreboard for basketball, replace the Hockey slipsheet with the Basketball slipsheet, The code is 58 for Basketball. All keyboard entries are made in the same way as for hockey, with the following exceptions: The console LCD display shows;...
  • Page 9: Maintenance And Troubleshooting

    To clear a player number/foul from memory: push, PLAYER NO. followed by the number you want to clear, then CLEAR . ENTER 3.15 Boxing Operation When using the scoreboard for Boxing, replace the console slipsheet with the boxing slipsheet. The code is 61 for boxing. Operation of all keys is similar to basketball operation. 4.
  • Page 10 (B) Scoreboard digits don't light, but the console works (a) With the main power switch "off"; remove the cover over the controller assembly. (b) Check all connections. (c) Turn the main power on. (d) If the scoreboard still doesn't light, check the transformer voltage going to the receiver PCB (printed circuit board) assembly (blue wires) using a voltmeter set on the 12 VAC or higher scale.
  • Page 11 The scoreboard works, but some lights do not come on. (a) Check for burned out lamps. IMPORTANT !!! In this scoreboard the 120 volt line is on the lamp socket all the time, and the common is switched to turn the lamps on and off. For this reason, to avoid damage to the equipment or personal injury, it is important to turn the main power off when changing lamps.
  • Page 12: Replacement Parts List

    5. REPLACEMENT PARTS LIST 5.1 Scoreboard Display Parts figure 1 DISPLAY ASSEMBLY...
  • Page 13 REPLACEMENT PARTS LIST (MP-3589X) fig.& MFG PART VENDOR index NUMBER DESCRIPTION PART # 180163X Display Assembly 180163 850000 Lamp, 7C7/125V Red 7C7/R 850001 Lamp, 7C7/125V White 7C7/W 850002 Lamp, 7C7/125V Amber 7C7/A 850024 Lamp, 25W/130V Red 25A19 RED 151362 Controller Assembly...
  • Page 14: Controller Assembly

    5.2 Scoreboard Controller Assembly Parts figure 2 CONTROLLER ASSEMBLY REPLACEMENT PARTS LIST (MP-3589X Controller Assembly) fig.& MFG PART VENDOR index NUMBER DESCRIPTION PART # 151362 Controller Assembly 151362 119323 Receiver PCB Assembly 119323 118922 Driver PCB Assy, 3 Position #1-#12...
  • Page 15: Diagrams

    6. DIAGRAMS 6.1 Control Console Keyboard and Slipsheet Layout HOCKEY BASKETBALL BOXING...
  • Page 16: Console Keyboard

    CONSOLE KEYBOARD 6.2 Scoreboard System Layout...
  • Page 17: System Layout

    SYSTEM LAYOUT 6.3 Single Wall Junction Box Wiring...
  • Page 18: Single Wall Junction Box Wiring

    SINGLE WALL JUNCTION BOX WIRING 6.5 Controller Assembly Wiring...
  • Page 19: Line Filter Wiring

    CONTROLLER ASSEMBLY 6.6 Line Filter Wiring Diagram LINE FILTER WIRING...
  • Page 20: Microprocessor 4X7 Lamp Pattern (8 Bit)

    6.7 Microprocessor 4 X 7 Lamp Pattern (8 Bit) MICROPROCESSOR 4 X 7 (8 BIT) LAMP PATTERN...
  • Page 21: Figuregram Wiring Diagram

    6.8 Figuregram Wiring 8 BIT FIGUREGRAM WIRING...
  • Page 22 6.9 Jumper Location on 3 Position System All of the 3 position drivers and receivers are identical except for the jumper on each board. Make sure the jumpers are set for the model of scoreboard you are installing them into. On the receiver board (refer to figure);...
  • Page 23: Jumper Location

    JUMPER LOCATION 6.10 Triac Placement The triac is the switch that controls the figuregram lamps. The triacs for any given figuregram are adjacent to the twelve pin connector on the driver board that controls that figuregram. Shown below is the triac placement and bit designation relative to the figuregram bit pattern.
  • Page 24 MP TRIAC PLACEMEN 6.11 Installation Drawing...
  • Page 25: Installation Drawings

    INSTALLATION DRAWING 6.11 Installation Drawing...
  • Page 26 INSTALLATION DRAWING...
