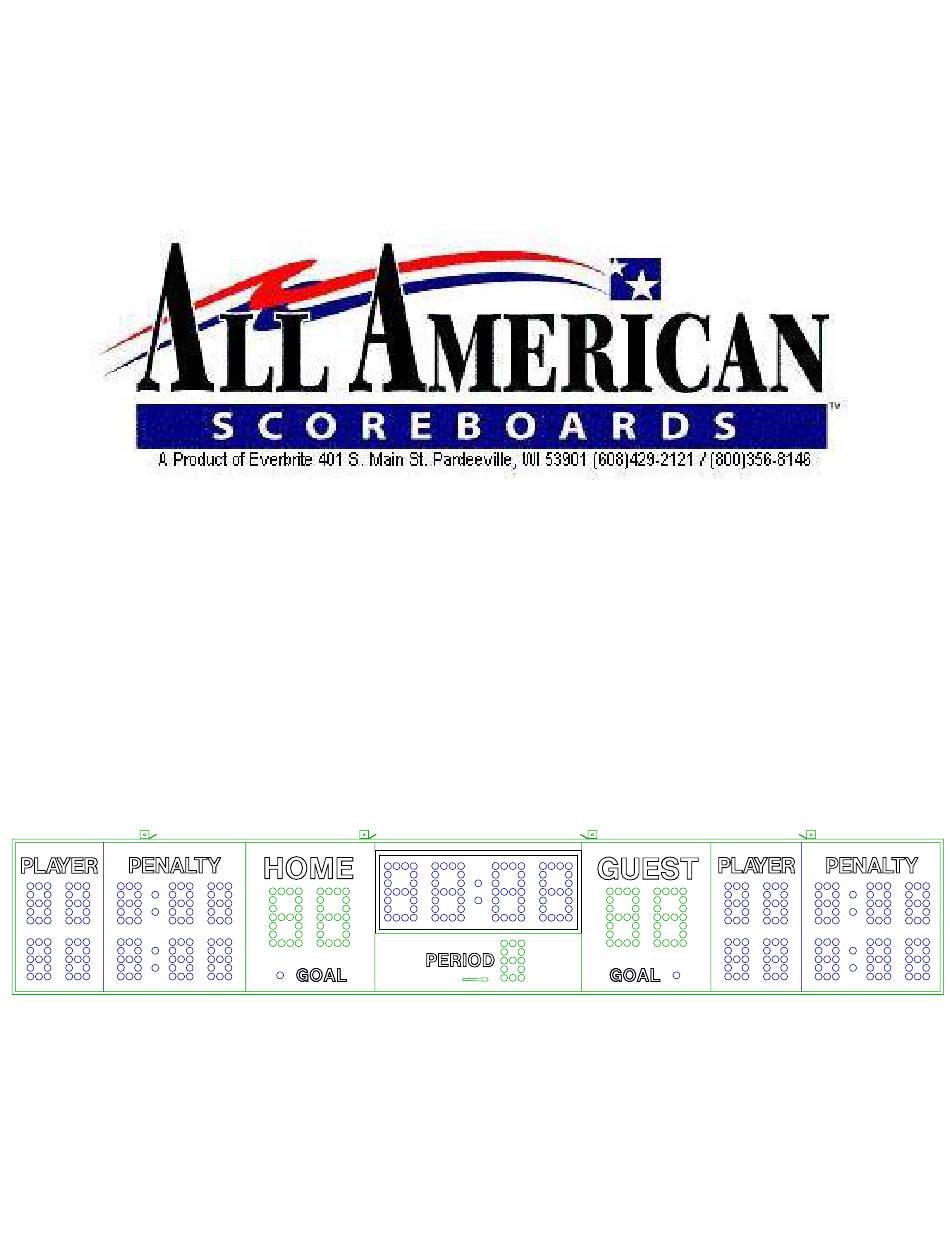

- Page 1 OPERATING INSTRUCTIONS AND SERVICE MANUAL HOCKEY SCOREBOARD MODEL MP-5549R With MP-5000R Control EFFECTIVE S.N. 18,350, November 15, 2002...
-
Page 2: Table Of Contents
TABLE OF CONTENTS GENERAL INFORMATION DESCRIPTION IDENTIFICATION DAMAGE DAMAGE CLAIM PROCEDURE INSTALLATION GENERAL INFORMATION INSPECTION PRE-TEST ELECTRICAL CONNECTIONS CONTROL CONSOLE OPERATION SCOREBOARD POWER CONSOLE DISPLAY CONSOLE POWER TIME OF DAY INITIALIZING SCOREBOARD TIME SETTING AND CONTROL TEAM SCORES HORN GOAL INDICATOR PERIOD INDICATORS 3.10 TIMEOUT PERIOD... -
Page 3: General Information
1. GENERAL INFORMATION 1.1 DESCRIPTION Your All-American scoreboard has been carefully inspected and tested before leaving the factory. It is possible, however, that components may be loosened or forced out of adjustment in transit. If this occurs, follow the troubleshooting guide (section 4). If equipment then fails to operate, contact immediately: ALL-AMERICAN Service Department EVERBRITE Corporation... -
Page 4: Damage
1.3 Damage Upon receipt, check for visible damage. If this occurs, or if damage is found after shipment has been accepted, follow the damage claim procedure. 1.4 Damage Claim Procedure An instruction sheet is enclosed advising the consignee in case of damage in transit. If damage is noted at the time of delivery, consignee must obtain an 'Inspection of Bad Order' from the delivering carrier. -
Page 5: Inspection
2.2 Inspection Inspect each unit and tighten all screws, and fittings that may have loosened in shipment. 2.3 Pre-Test Before installing the scoreboard, pre-test all functions. (A) Connect the scoreboard to a 15 AMP, 120 Volt AC service. (B) Plug the control console into the top of the scoreboard. (C) Test operate all functions on the scoreboard according to operating instructions in section 3 of this manual. -
Page 6: Control Console Operation
3. CONTROL CONSOLE OPERATION 3.1 Scoreboard Power Turn on the branch circuit to the scoreboard. The scoreboard will show zeroes in the Home and Guest scores. 3.2 Console Display The 2 line by 20 character Liquid Crystal Display module displays the scoreboard information entered from the keyboard. -
Page 7: Team Scores
3.5 Setup SETUP key will step through a list of options. Press YES/NO , or make Numeric Entries to make changes. Pushing ENTER without any other input skips to the next item. Pushing CLEAR exits setup, and all changes are kept. Accurate time will be kept without power to the scoreboard for up to 2 months. -
Page 8: Goal Indicator
The horn will blow automatically at the end of each period for 2 seconds. The automatic horn function may be disabled in Setup. An 'H' is displayed on the LCD when this function is enabled. 3.9 Goal Indicators Pushing Home or Guest GOAL to add 1 point to the score will also illuminate the appropriate goal indicator. -
Page 9: Maintenance And Troubleshooting
3.13 Shots On Goal The Home and Guest Shots On Goal can be changed in the following way. To add 1 to the existing shots: Push SOG . The LCD will show S.O.G. = and the present total. Push the number keys for the new total followed by the desired number, then ENTER . - Page 10 (a) Check that the main power switch is turned on. (b) Replace any defective or blown fuses. (c) Check the power connections and voltages at the scoreboard. (d) Check to see that the Green LED on the power supply is lit. (e) Check for 12 VDC at the power supply terminal.
- Page 11 If D5 is not on, check that the receiver board is plugged into the power supply and call the customer service department. (E) The scoreboard works, but some digits do not change. (a) Find the driver board that controls the first digit in the shift order that is not working.
-
Page 12: Replacement Parts List
5. REPLACEMENT PARTS LIST 5.1 Scoreboard Display Parts figure 1 DISPLAY ASSEMBLY... - Page 13 REPLACEMENT PARTS LIST (MP-5549R Hockey) fig.& MFG PART VENDOR index NUMBER DESCRIPTION PART # 151897 Display Assembly, MP-5549R 151897 150820 Cluster, 1.5" X Red 150820 150821 Cluster, 1.5" X Amber 150821 150822 Cluster, 1.5" X Green 150822 151620 Controller Assembly, MP-5549R W/8 Drv...
-
Page 14: Controller Assembly Parts
5.2 Controller Assembly Parts figure 2 CONTROLLER ASSEMBLY REPLACEMENT PARTS LIST (MP-5549R) Controller Assembly fig.& MFG PART VENDOR index NUMBER DESCRIPTION PART # 151620 Controller Assembly 151620 150635 PC Board Assy, 5000 Series Receiver 150635 ***** PROGRAM RX5000 V2.12 ***** 150634 PC Board Assy, 4 Pos. - Page 15 5.3 Power Supply Assembly Parts figure 3 POWER SUPPLY PLATE ASSEMBLY REPLACEMENT PARTS LIST (MP-5549R) Power Supply Plate fig.& MFG PART VENDOR index NUMBER DESCRIPTION PART # 151731 Power Supply Plate Assembly 151731 BL00054P Power Supply, 12V 150 Watt S-150-13-5...
-
Page 16: Diagrams
6. DIAGRAMS 6.1 Control Console Keyboard and Slipsheet Layout CONSOLE KEYBOARD... -
Page 17: Scoreboard System Layout
6.2 Scoreboard System Layout SYSTEM LAYOUT... -
Page 18: Controller Assembly Wiring Diagram
6.3 Controller Assembly Wiring Diagram CONTROLLER WIRING... - Page 19 6.4 Power Supply Plate Wiring POWER SUPPLY PLATE ASSEMBLY...
-
Page 20: Receiver Board Diagram
6.5 Receiver Board Diagram RECEIVER BOARD... - Page 21 6.6 Driver Board Diagram RECEIVER BOARD...
-
Page 22: Microprocessor 4 X 7 Led Pattern (8 Bit)
6.7 Microprocessor 4 X 7 LED Pattern (8 Bit) The Timers Colon Wiring ties the top to bit 8 of seconds units, and the bottom to bit 8 of seconds tens. MICROPROCESSOR 4 X 7 (8 BIT) LED PATTERN... -
Page 23: Installation Drawing
Installation Drawing INSTALLATION DRAWING...
