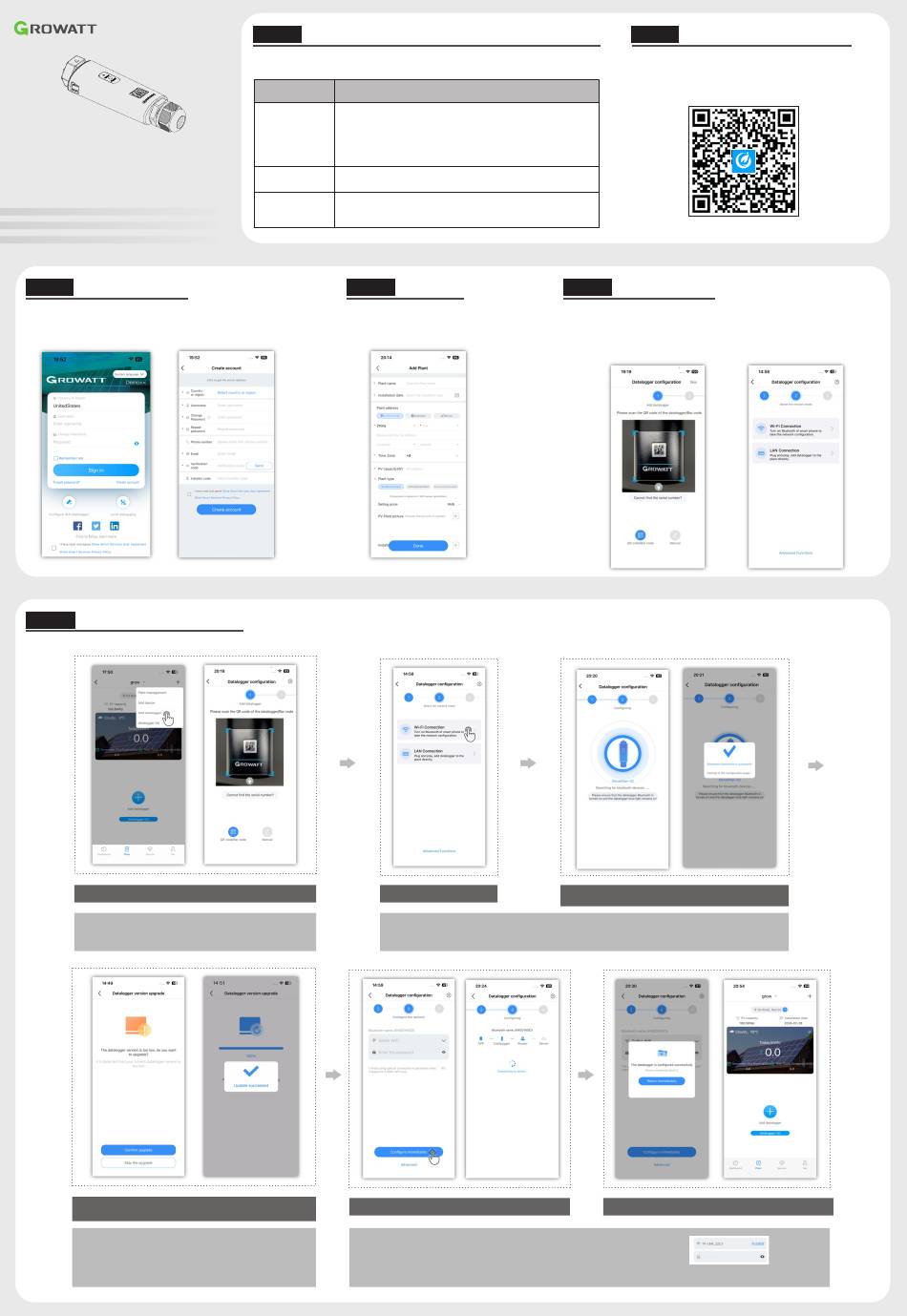

Growatt ShineWiLan-X2 Configuration Manual

ShineWiLan-X2
Configuration Guide
For the latest information, please visit http:// en.growatt.com.
T 400-931-3122 F +86 755 2747 2131
E service@ginverter.com W en.growatt.com
Step3.
Register an account
1. Connect your phone to the router via a wireless network;
2. Run the ShinePhone APP and go to the registration page;
3. Fill in the registration information and click "Create account".
Step6.
Network mode configuration
1. Connect via Wi-Fi
Configure the datalogger
Step 01: On the target Plant page, tap "+" to add the datalogger
Step 02: Scan the QR code or manually enter the serial number
(SN) and verification code
Datalogger firmware upgrade
(only perform this step when a firmware update is required)
Step 01: Choose whether to upgrade the datalogger version
Step 02: If you need to upgrade the datalogger, please wait for
about 10 minutes. The datalogger will restart
automatically once the upgrade is complete
Step 03: Reconnect to the datalogger's Bluetooth
Step1.
Turn on the PV device
Upon initial installation, ShineWiLan-X2 is steady blue light indicates that it is in Bluetooth mode.
LED status indication
LED status
The datalogger failed to communicate with the PV device.
(1) Check if the datalogger has been properly connected to the USB
port on the PV device;
Off
(2) Unplug and replug the datalogger;
(3) Connect the datalogger to another PV device to check whether the
datalogger or the PV device is faulty.
Steady white The datalogger is initializing. Please wait for about one minute.
The datalogger is in Bluetooth mode. Please continue with the network
Steady blue configuration process. If you do not need to configure the network,
you can exit this mode by pressing the button once.
Step4.
Add a plant
1. Go to the "Add plant" page;
2. Fill in the plant information;
3. Click "Done" to add the plant.
Select"Wi-Fi Connection"
Step 01: Select "Wi-Fi Connection" to enter Bluetooth mode
Step 02:The Datalogger's steady blue light indicates that it is in Bluetooth mode. Press the button briefly to
activate Bluetooth if the light is not on, then proceed with pairing.
Connect to the home router and configure the network
Step 01: After the Bluetooth connection is set up, enter the configuration page, select
your target router and enter the password
Step 02: Once the WiFi configuration is complete, please return to the "Plant" page
and check the connection status
Operating status
Step5.
1. Go to the "Add datalogger" page;
2. Scan the QR code or manually enter the serial number (SN) and verification code;
3. If you select "LAN Connection", the datalogger will be added directly. If "Wi-Fi
Connection" is selected, you need to configure the network to add the datalogger;
4. If you do not need to add a datalogger, you can skip this step and go to the "Plant"
page.
Datalogger configuration starts and it will automatically
connect to the Bluetooth with the name of the datalogger's SN
Step2.
Download the ShinePhone APP
Scan the QR code below to download the ShinePhone APP, or you
can search for ShinePhone in the Apple Store or Google Play to
download and install the APP.
1. Make sure you download the latest version.
2. For further information, please visit http://server.growatt.com.
【 Android & iOS 】
Add a datalogger
Configuration is successful, then return to the "Plant" page
