Growatt ShineWiFi Quick Installation Manualline

Growatt ShineWiFi
Quick Installation Guideline
For more info, please download from http://server.growatt.com
+86 755 2747 1942 +86 755 2747 2131
service@ginverter.com
Register and Add device
Step2.
Search "Shine Phone" in google play or app store, or scan
the picture below, download and install the app.
NOTE: 1.Please install the latest version;
2.For more details, please refer to the content on
server.growatt.com.
Android& iOS
【 】
3.Then enter the SN and check code of the
scan the QR code on it in the following page to add the
ShineWiFi into this account.
6. Login your account. Click the "+" at the top right
of the page to view the connection status of the data
logger(ShineWiFi).
Electrical Connection
Step1.
Remove the cover of the RS232 port, check if there is a DIP switch next to the port.
A If there is a DIP switch next to the RS232 port, please set DIP 1 to "ON". Then plug in the ShineWiFi and lock screws.
B If there is no DIP switch, poke the small rubber plug from the screw hole adjacent to the RS232 port. Plug into the RS232 port and
lock screws.
1.Connect your mobile phone to the WiFi of the router which ShineWiFi will connect to.
2.Run ShinePhone, and register a new account;
4.Then it will jump to the configuration page –
ShineWiFi or just
"Set ShineWiFi", enter the WiFi password in the
corresponding field. Please note, the phone must be
connected to the WiFi network of the router first.
7. Then click the "Device" tab at the bottom line to move to
"Device" page, All detailed information of the PV system
can be viewed here.
5. After entering the WiFi password, click on "Configure" to
start the configuration. A "configuration successful
acquisition" dialog window will appear if the ShineWiFi is
successfully configured. Click "OK" on the dialog window,
you'll be brought to the login page.
Remark:The connection status of the
checked by the status of the blue LED light beside the Key button
in the ShineWiFi
1. Blue LED status:
Solid on: device is initializing
Solid off: no device found on RS232 port
Flashing fast (change every 0.2s): Found inverter or SP2000 on
RS232 port
Flashing slow (change every 1s): The
successfully connected to router
2.If you need to reconfigure the ShineWiFi
hold the key button for at least 3 seconds until the blue LED
turns solid on and flash fast. Now open the ShinePhone App and
long press the ShineWiFi in the datalogger list to configure
it again.

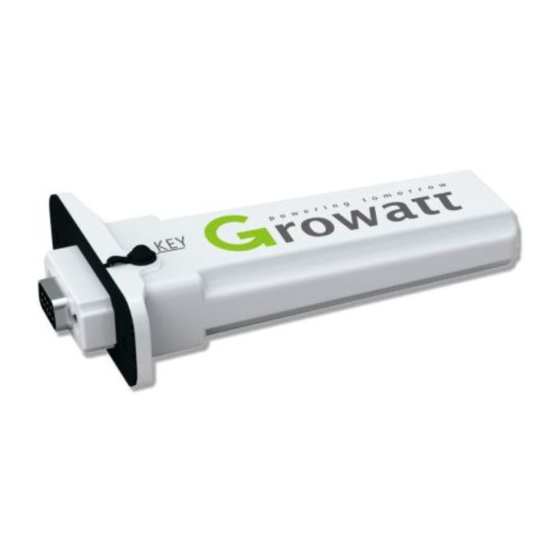

ShineWiFi can be
ShineWiFi is online and
, please press and
