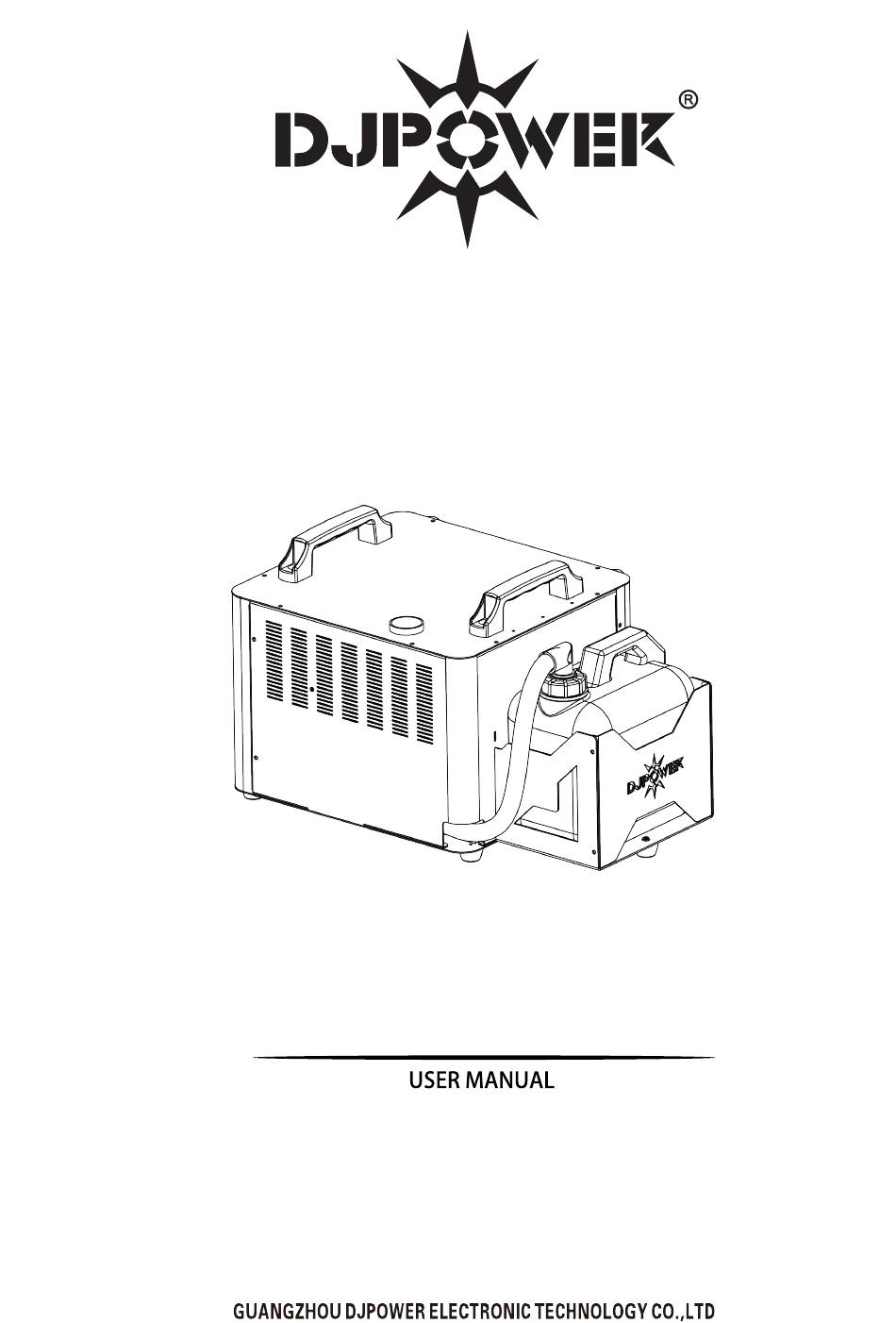

- Page 1 H-2VD DUAL OUTPUT SUPER JET...
- Page 2 The information and specifications contained in this User Manual are subject to change without notice. DJPOWER assumes no responsibility or liability for any errors or omissions and reserves the right to revise or to create this manual at any time.
- Page 3 1.5.1 Personal Safety • Always connect the product to a grounded circuit to avoid the risk of electrocution. • During heating up and operation, the housing will be scalding hot. Do not touch. • The product is very hot during operation and it remains hot for a long time after operation has stopped.
- Page 4 2 INTRODUCTION Description H-2VD is world's first dual output vertical fog machine Super-Jet, it is specially designed for professional stage, with the unique "super-jet" technology, the output speed and strength can even be comparable with CO2 jet.
- Page 5 Product Overview Control Board Breaker 3-pin DMX Socket Power Switch 5-pin DMX Socket Power Socket Handle Nozzle Fluid Tank Omega bracket with ¼ turn fastener Product Dimensions 520 mm - 4 -...
- Page 6 3 TECHNICAL SPECIFICATIONS AC Power Input Voltage & Rate 220-240 V, 50/60 Hz Current Limiter Type Breaker Current Limiter Specifications 16 A, 250 V Total Power Consumption 2,800 W Heating Heat Up Time 9.0 min Capacity Fluid Tank Capacity 3.5 L Output Duration with Fluid Tank Full 10.0 min Output...
- Page 7 Plug the product’s power cord into the power outlet and continue using as recommended. DMX Linking You can link the H-2VD to a DMX controller using a 3- or 5-pin DMX connection. If using other DMX- compatible products with this product, you can control each individually with a single DMX controller.
- Page 8 Return the tank back to its compartment in the H-2VD. • Make sure the plastic hose entering the H-2VD from the fluid tank cap is not bent or kinked. • Always connect the product to a grounded circuit. Before power on, make sure it is connected with the rated voltage.
- Page 9 Display Description Range DJPOWER Software version Version 1 Welcome Pages Initializing… Initializing… DJPOWER H-2VD Heating Up Preparing The machine is heating up Pages >>>>>> Ready to Fog Standby The machine has heated up and ready to fog Page DJPOWER H-2VD...
- Page 10 DJPOWER® H-2VD DMX set the starting address in the 001 - 512 DMX range and uses 1 DMX channels, which defines the highest configurable address to 512 to have all channels controllable.
- Page 11 5) Run the product in a well-ventilated area until the tank is empty. Do not allow the pump to run dry. 6) Refill with fog fluid to continue using the H-2VD. Run the machine briefly to clear any cleaning solution from the pump and heater.
