djpower H-SW3000 User Manual

Aqua low fog machine
Hide thumbs Also See for H-SW3000:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-SW3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for djpower H-SW3000

Summary of Contents for djpower H-SW3000

  • Page 3: Table Of Contents

    H-SW3000 USER MANUAL V1 CONTENTS BEFORE YOU BEGIN ........................................1 ............................................1 NCLUDED .......................................... 1 NPACKING NSTRUCTIONS ..............................................1 YMBOLS ..............................................1 ISCLAIMER .............................................. 1 AFETY OTES 1.5.1 Personal Safety ..........................................1 1.5.2 Mounting and Rigging ....................................... 2 1.5.3 Power and Wiring ........................................2 1.5.4...

  • Page 5: Before You Begin

    Disclaimer The information and specifications contained in this User Manual are subject to change without notice. DJPOWER assumes no responsibility or liability for any errors or omissions and reserves the right to revise or to create this manual at any time.

  • Page 6: Mounting And Rigging

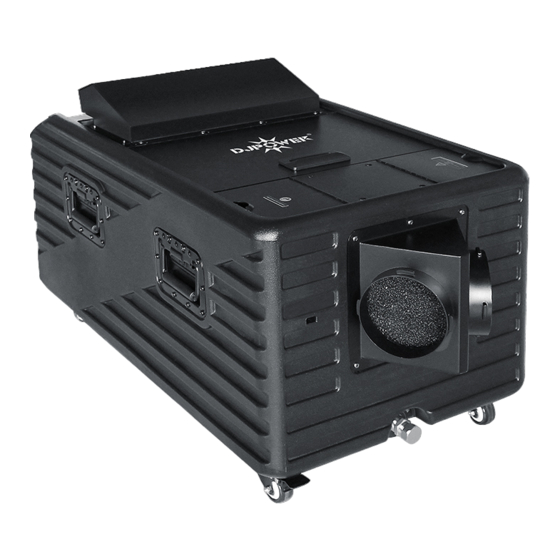

    Description World's first monocoque frame aqua low fog machine H-SW3000, creates a continuous low-lying fog hugs the floor and dissipates without rising. By using the Ultrasonic technology, needs for dry ice is eliminated. Main consumables are pure water, environment friendly, cost saving and space saving.

  • Page 7: Features

    Low fluid consumption, 3.5L fluid reservoir -2 hours on full output; • Built-in LCD control, 3-pin and 5-pin DMX control; • Please use DJPOWER professional fluid PRO-V/PRO-A/PRO-C; different fluid will show different stage effect. DJPOWER PRO-V fog fluid provides an awesome Quick Dissipation effect. Product Overview Rain-proof Shield...

  • Page 8: Product Dimensions

    H-SW3000 USER MANUAL V1 LCD Control Board 3-pin DMX Socket 5-pin DMX Socket Power Input for Power Switch Electronics Breaker Product Dimensions 885 mm 500 mm < 4 >...

  • Page 9: Technical Specifications

    H-SW3000 USER MANUAL V1 TECHNICAL SPECIFICATIONS Input Voltage & Rate 220-240 V, 50/60 Hz Current Limiter Type Breaker Current Limiter Specifications 15 A, 250 V Total Power Consumption 2,700 W AC Power Operating Current 11.7 A Power Input Connector Lockable PowerCon IP65...

  • Page 10: Ac Plug

    DMX Linking You can link the H-SW3000 to a DMX controller using a 3- or 5-pin DMX connection. If using other DMX-compatible products with this product, you can control each individually with a single DMX controller. Instructions for connecting and configuring this product for DMX operation are in the User Manual.

  • Page 11: Operation

    H-SW3000 USER MANUAL V1 OPERATION Preparing for Operation • After checking that all the parts are intact and complete, position the machine on flat. • Fill the water into water tank when power off. The capacity of water tank is 34 L.
  • Page 12 H-SW3000 USER MANUAL V1 Display Description Parameter Range H-SW3000 AC-230V 50Hz Heating Up Preparing Page The machine is heating up. >>>>>>>>>>>>>>> Finished heating up, ready to Ready 2 Low Fog Standby Page work. H-SW3000 Interval countdown of TIMER Interval 600s...

  • Page 13: Dmx Mode & Operation

    DJPOWER® H-SW3000 DMX set the starting address in the 001 - 512 DMX range and uses 3 DMX channels, which defines the highest configurable address to 510 to have all channels controllable.

  • Page 14: Auto Run Last Settings

    H-SW3000 USER MANUAL V1 Auto Run Last Settings If the machine is shut off while it is operating at standalone mode (On-device & Wireless control), the “Auto Run Last Setting” will allow the machine to recover its previous same operating status when the unit is powered on again without pressing any button.

  • Page 15: Technical Information

    Maintenance To avoid the H-SW3000 clogging, after every 40 hours of continuous operation, use a detergent composed of 35% vinegar and 65% distilled water through the system and fog 10-15 times after finish heating-up to prevent the accumulation of particulate matter in the heating element.
