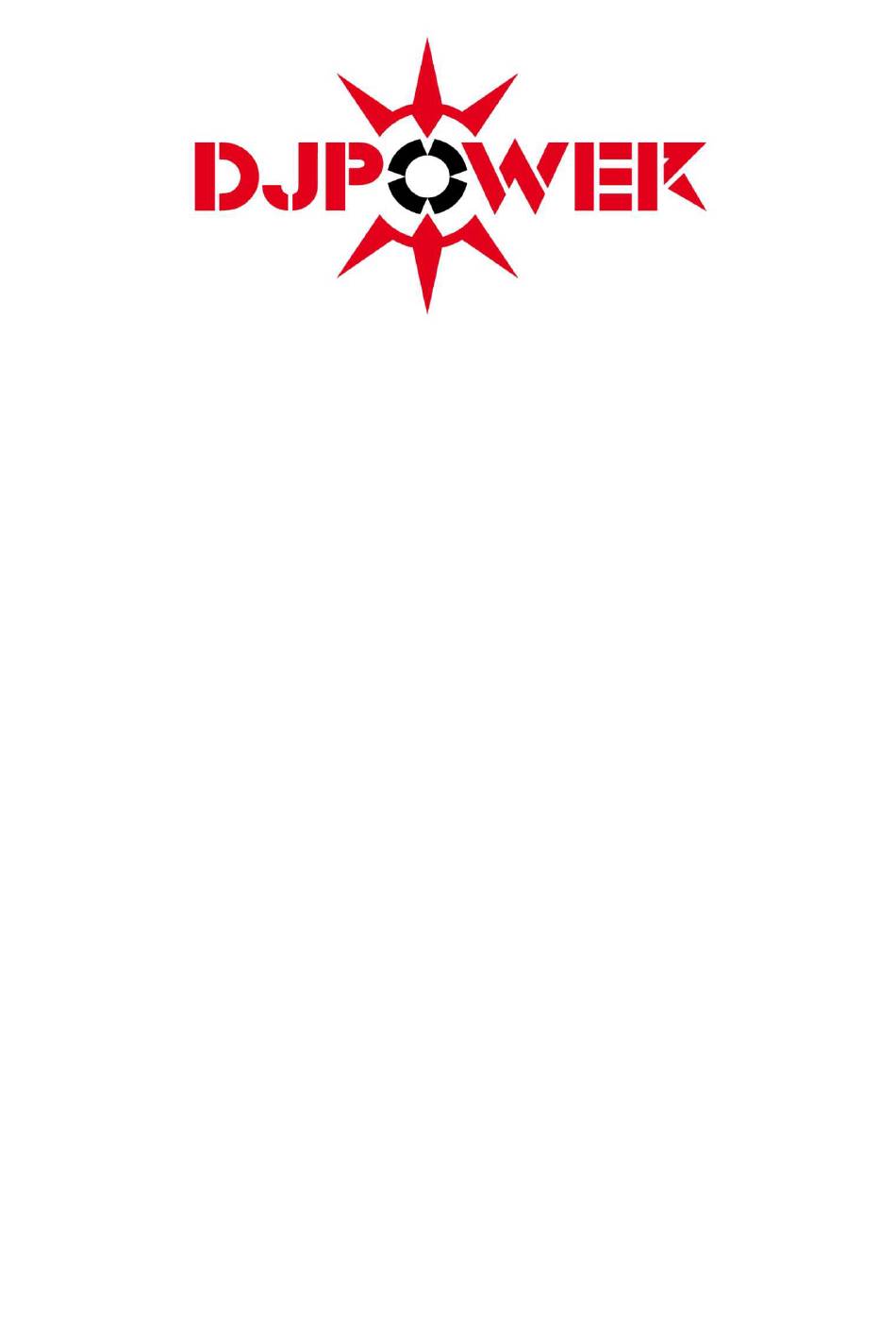

  • Page 1 Manual Fazer DFZ-800...

  • Page 2: Table Of Contents

    Table of contents Safety instructions ..........................3 1.1. Instructions for a safe and efficient operation ................3 1.2. More information on safe use ....................4 Introduction ............................4 2.1. Product description ........................4 2.2. Unpacking ..........................4 Control .............................. 5 3.1.

  • Page 3: Safety Instructions

    1. Safety instructions • This Device is suitable for indoor use only. This Device is suitable for indoor use only. • All modifications will void the warranty. All modifications will void the warranty. • Repairs have to be carried out by skilled personnel only. Repairs have to be carried out by skilled personnel only.

  • Page 4: More Information On Safe Use

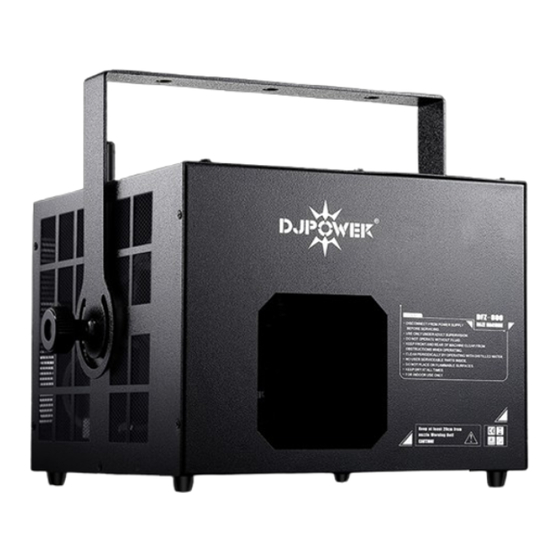

    2.1. Product description The DFZ-800 is a fazer which can be used standing on the floor or hung up. It is a very quiet fazer. The fazer can both be manually controlled by remote control and via DMX and is equipped with a low fluid sensor.

  • Page 5: Control

    3. Control 3.1. Installation • Take out the unit from the shipping package; make sure all the foams and plastic padding are removed, especially in the nozzle areas. • Place the unit on a flat surface and remove the tank cap. •...

  • Page 6: Duration

    3.3.3. Duration • Press MENU until the display shows “Duration Set” • Use the UP / DOWN keys to set the Duration between 5 – 200 seconds. This setup is required if you want to use the Timer function. 3.3.4. Amount of fog •...

  • Page 7: Dmx Setup

    3.3.8. DMX Setup • Press MENU until the Display shows “DMX512 Address”. • Use the UP / DOWN keys to set the value between 1 and 512. Consider that one machine uses 2 DMX channels! Channel 1: DMX value 0 – 5 means that the fan is deactivated. If you raise the level between 6 and 255 you will increase the speed of the fan.

  • Page 8: Use Of The Remote

    3.4. Use of the remote Activate the remote in the menu. Press and hold any key on the remote. The display flashes twice which means that the connection was successful. . The Remote has two buttons. Button A turns on the function, button B will turn off the function.

  • Page 9: Explanation Of The Hardware

    4. Explanation of the hardware 1. Bracket 2. Safety hole 3. Nozzle 4. Quick connector 5. Fluid tank 6. Fluid tank baffle 7. Air vent 8. Antenna 9. LC Display 10. DMX 3pol 11. DMX 5pol 12. Power socket 13. Power switch 9 / 12...

  • Page 10: Technical Data

    5. Technical data Power supply Voltage AC 220 – 240 V; 50/60 Hz Power consumption max. 1150 W Fuse 8A / 250 Connections Power in XLR in/out 3pol / 5pol Controlling DMX512 Number of channels Technical data Ejection volume 226 m³ / min Tank volume 3,5 l Fluid consumption...
  • Page 11 11 / 12...
  • Page 12 Importer: B & K Braun GmbH Industriestraße 2 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 12 / 12...
