  • Page 1 Fog Machine H-2VD Users Manual...
  • Page 2 Fog Machine H-2VD 2 / 18...

  • Page 3: Safety Instructions

    Fog Machine H-2VD 1. Safety Instructions • This device is only for use in • closed rooms (not outdoors). • The warranty claim expires if the device is modified by the user. • The device may only be repaired by trained specialists.
  • Page 4 Fog Machine H-2VD 1.1. Intended use of the device This device is a device that was developed for professional use on stages, in discotheques, theaters, etc. The device is only approved for connection to a maximum of 230V, 50/60 Hz AC voltage and is only intended for indoor use.

  • Page 5: Over Head Mounting

    Fog Machine H-2VD Never use solvents or aggressive cleaning agents to clean the device. Instead, use a soft, slightly damp cloth. When transporting the device, please use the original packaging or the accessories provided to prevent transport damage. Unauthorized changes to the device are prohibited for safety reasons! 1.2.
  • Page 6 Fog Machine H-2VD IMPORTANT! A high level of experience is required for overhead mounting. This includes knowledge of working load calculations, knowledge of the installation material used and knowledge of safety inspections of the material used and the equipment, but the experience required is not limited to this alone.
  • Page 7 Fog Machine H-2VD 2. Connection 2.1.1. Electrical Connection Connect the device to the mains using the supplied power cable! The protective earth must always be connected! Cable (EU) Cable (US) International Brown Black Live Blue White Neutral Green/ Yellow Green Earth 2.1.2.

  • Page 8: Scope Of Delivery

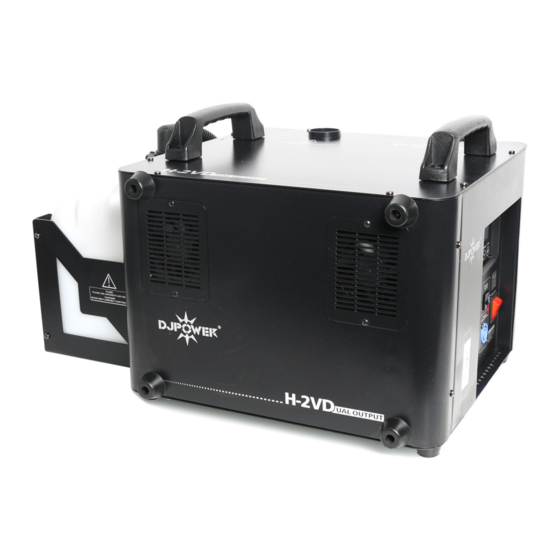

    The H-2VD is the world's first dual output super jet fog machine. This device has been specially developed for professional use. With the unique & patented Super-Jet technology, the strength of the output is comparable to that of Co2 jets.

  • Page 9: Product Description

    Fog Machine H-2VD 3.3. Product description 9 / 18...

  • Page 10: First Use

    Fog Machine H-2VD 4. First use ATTENTION! Before using the device for the first time, remove all packaging materials. 1. After checking that the device is intact and complete, please place it on a flat surface. 2. Fill the tank with fluid! Please only use the recommended fluid, otherwise the device may be damaged and the guarantee will be void.
  • Page 11 Fog Machine H-2VD 4.1.1. Menu 11 / 18...
  • Page 12 Fog Machine H-2VD 4.1.2. DMX table If the device is controlled with a DMX signal, the display shows the set DMX address. Kanal Wert von Wert bis Funktion Keine Funktion Nebelausstoß 4.1.3. Fluid Sensor This machine has a software-based fluid sensor that is designed to protect the pump from damage.

  • Page 13: Technical Data

    Fog Machine H-2VD 5. Technical data tension AC 220V-240V; 50/60Hz power consumption max. 2800W fuse 15A/250V heating capacity 2300W warm-up time 9 minutes tank volume 3.5 liters range with one filling 10 mins output volume 2209 m³/min discharge height fluid consumption...

  • Page 14: Tank Inversion

    Fog Machine H-2VD 6. Upside-Down mounting • Before installation, make sure that the machine is easily accessible for maintenance work. • Make sure the machine is installed on a structure designed for the weight. 6.1. Tank Inversion To prevent fluid from leaking out, the tank must be turned before the upside-down assembly.
  • Page 15 Fog Machine H-2VD Notes: 15 / 18...
  • Page 16 Fog Machine H-2VD Notes: 16 / 18...
  • Page 17 Fog Machine H-2VD 17 / 18...
  • Page 18 Fog Machine H-2VD B&K LUMITEC 2 rue Alfred Kastler Zone Industrielle 67850 Herrlisheim - France +33 (0) 3.88.96.80.90 +33 (0) 3.88.96.48.46 hello@bklumitec.com www.bklumitec.com 18 / 18...
