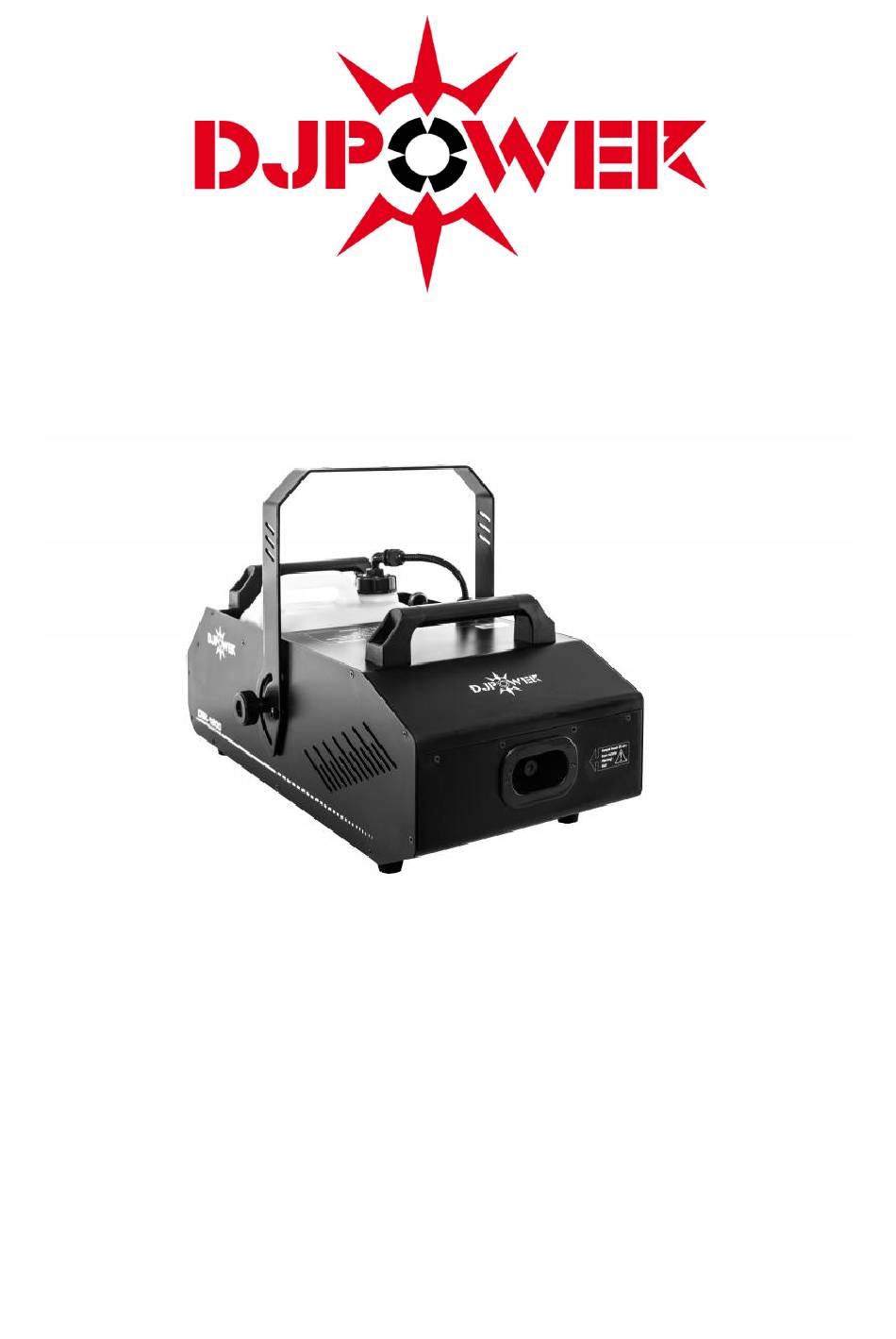

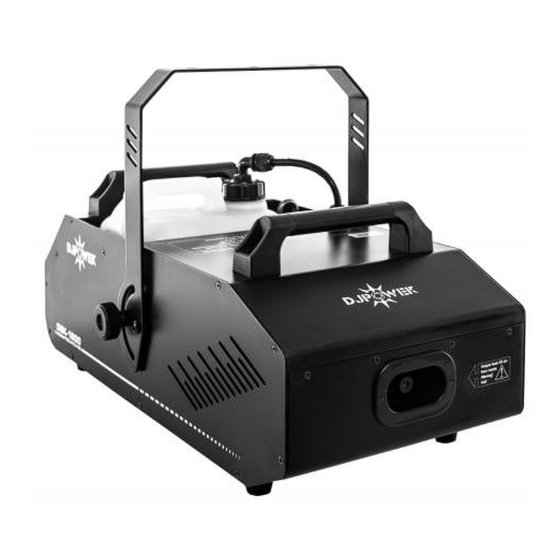

- Page 1 User manual Fog machine DSK-3000...
-
Page 2: Table Of Contents
Table of contents Safety instructions ..........................3 1.1. Instructions for a safe and efficient operation ................3 1.2. More information on safe use ....................4 Introduction ............................5 2.1. Product description ........................5 2.2. Unpacking ..........................5 Usage / Control ..........................6 3.1. -
Page 3: Safety Instructions
1. Safety instructions • This Device is suitable for indoor use only. • All modifications will void the warranty. • Repairs have to be carried out by skilled personnel only. • Only use fuses of the same type and original parts as spare parts. •... -
Page 4: More Information On Safe Use
1.2. More information on safe use Disconnect the unit from the electricity supply before refilling liquid. Only 3-prong grounded outlet is available for all the DSK models. Please make sure that the unit’s voltage is within range of rated one. Keep the unit in upright position at any time. -
Page 5: Introduction
If you can see any faulty parts do not connect the Machine to the power supply and contact your distributor soon. The shipping packing should contain the following items: DSK-3000 machine Power Cord Remote User Manual... -
Page 6: Usage / Control
3. Usage / Control 3.1. Installation Take out the unit from the shipping package; make sure all the foams and plastic padding are removed, especially in the nozzle areas. Place the unit on a flat surface and remove the tank cap. Fill the tank with high-quality, water-based fog liquid recommended by the distributor. -
Page 7: Explanation Of Menu And Display
3.3. Explanation of menu and display 3.3.1. Explanation of the buttons You will find 6 buttons on the machine: FUNCTION: Press the button to scroll through the menu Press the button to increase the value DOWN: Press the button to decrease the value TIMER: Press to start the Timer Function VOLUME:... -
Page 8: Amount Of Fog
3.4.3. Amount of Fog • Press Function until the Display shows “Timer out” • Use the UP / DOWN keys to set a Output between 1 – 100 % • This setup is required if you want to use the Timer function 3.5. -
Page 9: Explanation Of The Hardware
4. Explanation of the hardware 1. Nozzle 2. Handle 3. Body 4. Tank & tank’s cap 5. PU tube & filter 6. Tube adaptor 7. Safety ring 8. 3 pin XLR In for DMX-signal 9. 5 pin XLR In for DMX-signal 10. -
Page 10: Technical Data
5. Technical data Voltage AC 220V-240V 50/60Hz Power consumption 3000W Fog Output Ca 1132 m³/min Preheat time Ca 9min Tank Volume Controller DMX or Remote Weight 19,5kg Measures 750 x 405 x 370 mm DMX channels 10 / 12... - Page 11 11 / 12...
- Page 12 Importer: B & K Braun GmbH Industriestraße 2 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 12 / 12...
