Page 3: Before You Begin
The information and specifications contained in this User Manual are subject to change without notice. DJPOWER assumes no responsibility or liability for any errors or omissions and reserves the right to revise or to create this manual at any time. -
Page 4: Mounting And Rigging

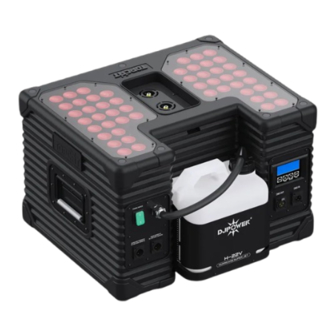

1.5.1 Personal Safety • Always connect the product to a grounded circuit to avoid the risk of electrocution. • During heating up and operation, the housing will be scalding hot. Do not touch. • The product is very hot during operation and it remains hot for a long time after operation has stopped. - Page 5 INTRODUCTION Description H-22V is a new rainproof high-speed dual nozzle super jet launched by DJPOWER. It is specially designed for outdoor use and powerful fog output up to 20 meters. With "Super-Jet" (Patent number: ZL201520934500.2) and “Immediate-stop” (Patent number: ZL201320700998.7) patent technology, the output speed and strength can be comparable with CO2 jet.
-
Page 6: Product Overview
Product Overview Product Dimensions TECHNICAL SPECIFICATIONS Input Voltage & Rate AC 100-120V, 50/60Hz AC 220-240 V, 50/60 Hz AC Power Current Limiter Type 25A/250V 15A/250V Total Power Consumption 2,700W 3,500 W Heating Heat Up Time Appr. 35 min Appr. 25 min Light Source LED color - 4 -... - Page 7 Total Power of LED 6 W × 48 pcs Tank Fluid tank Output adjustable × Max Output Volume Appr. 276,000 cuft/min Max Output Height Appr. 20 m Fluid Consumption (100% Appr. 0.72 min/L Output) Output Maximum Continuous Appr. 7 S Duration (100% Output) Continuous Output ×...
-
Page 8: Dmx Linking
Omega brackets included, or it can be placed on its rubber feet on a flat level surface. 4.4.2 Rigging DJPOWER recommends using the following general guidelines when mounting this product. • Before deciding on a location for the product, make sure there is easy access to the product for maintenance and programming purposes. -
Page 9: Preparing For Operation
OPERATION Preparing for Operation To prepare the H-22V for operation, perform the following steps.： • After checking that all the parts are intact and complete, position the machine on flat. • Refill the PRO-V fluid for machine, damage caused by the use of other fluid is not covered by the warranty •... - Page 10 • To go to the desired main level, press <MENU> repeatedly until the option shows on the display. This will take you to the first programming level for that option. • To select an option or value within the current programming level, press <TIMER> or <VOLUME> until the option shows on the display.
- Page 11 DJPOWER® H-22V DMX set the starting address in the 001 - 512 DMX range and uses 9 DMX channels, which defines the highest configurable address to 503 to have all channels controllable.
- Page 12 5.4.3 DMX Channel Assignments and Values DMX 9 Channels Channel Function Value Description 000 - 127 128 - 255 000 - 010 LED Red 011 - 255 Dim to bright 000 - 010 LED Green 011 - 255 Dim to bright 000 - 010 LED Blue 011 - 255...
-
Page 13: Technical Information
Excessive dust, fluid residue and dirt will degrade performance and cause overheating. Remove dust from air vents with air compressor, vacuum or soft brush. The casing could be cleaned by the damp cloth. Test-run your DJPOWER® H-22V on a monthly basis to achieve the best performance. - 11 -... -
Page 14: Machine Storage
Machine Storage Before storing the machine, clean it as described in the cleaning procedure above; however, only follow steps 1 through 5. Do not refill the tank with fog fluid if storing the machine. Cleaning the system prior to storage will help prevent any particles from condensing inside the pump or heater while not in use. Minor failure Error code Error...
