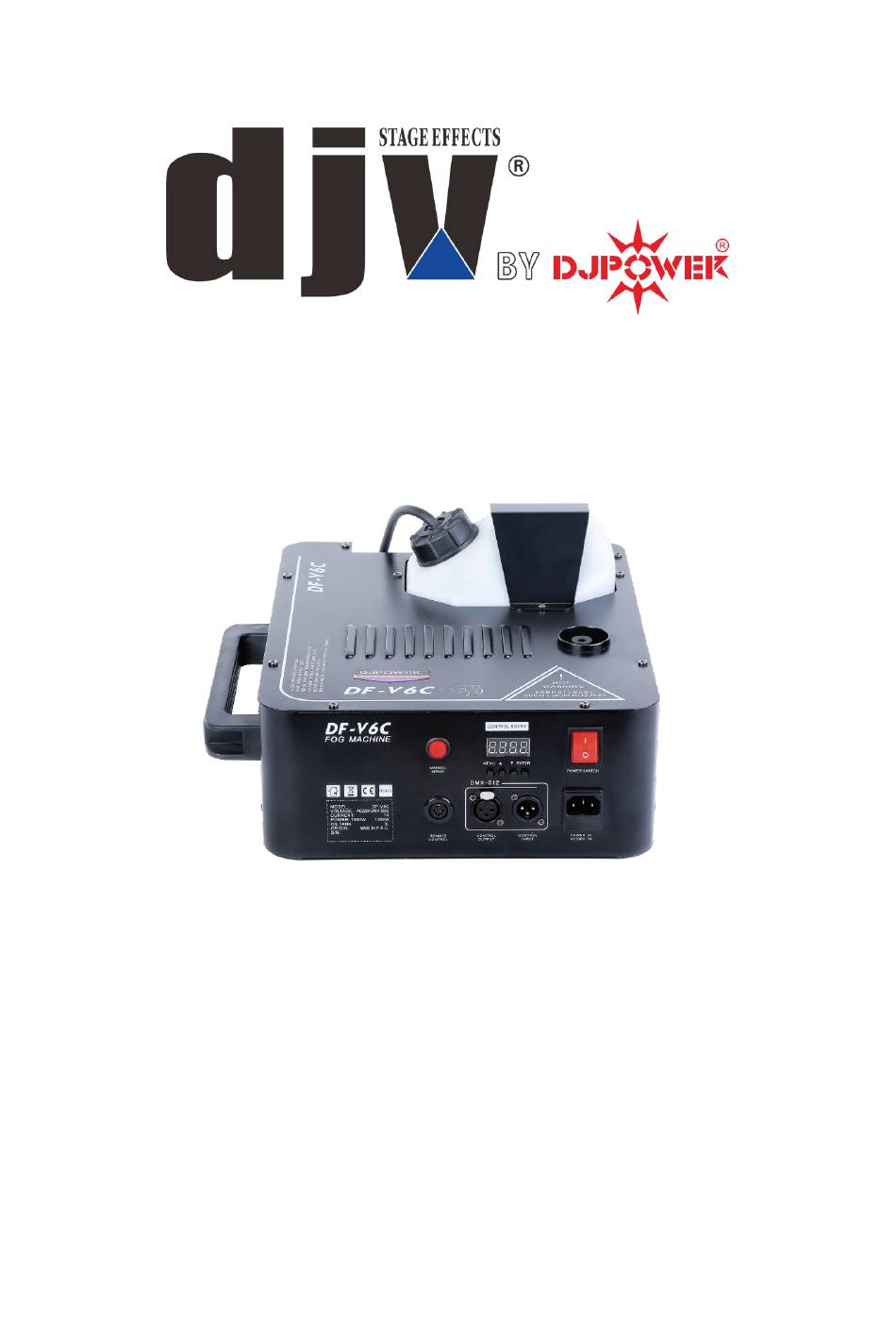

Nebelmaschine DF-V6C
USERS MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DJV DF-V6C and is the answer not in the manual?

Questions and answers

Related Manuals for djpower DJV DF-V6C

Summary of Contents for djpower DJV DF-V6C

  • Page 1 Nebelmaschine DF-V6C USERS MANUAL...

  • Page 2: Table Of Contents

    Nebelmaschine DF-V6C Art.No.: 115297 Table of contents Safety instructions ....................3 1.1. For safe and efficient operation..............3 Intended use of the device ................4 2.1. Electrical connections ................... 5 Introduction ......................6 3.1. Item deliverd ....................6 3.2. Product description ..................6 Start-up ........................

  • Page 3: Safety Instructions

    Nebelmaschine DF-V6C Art.No.: 115297 1. Safety instructions • This device is suitable for indoor use (not outdoors) only. • Unauthorized modifications will invalidate the warranty. • Repairs are to carry out by skilled workers only. • Use only fuses of the same type and original parts as spare parts. •...

  • Page 4: Intended Use Of The Device

    Nebelmaschine DF-V6C Art.No.: 115297 2. Intended use of the device This device was developed for professional use on stages, in discos, theatres etc. The device is only approved for a connection up to 230 V 50/60 Hz alternating current and only for indoor use. Regular breaks during operation increase the lifetime of your device.

  • Page 5: Electrical Connections

    Nebelmaschine DF-V6C Art.No.: 115297 Never use solvents or aggressive detergents for cleaning. Use instead of this a damped cleaning rag. To prevent damages during transport use for transport the original packing or provided accessories. For reasons of safety unauthorized changes are forbidden! A usage of the device which differs from usages which are described in this manual can cause damages of the device.

  • Page 6: Introduction

    Nebelmaschine DF-V6C Art.No.: 115297 3. Introduction Thank you for choosing a device from DJPower. Before usage please read this manual carefully. 3.1. Item deliverd 1x Fog machine DF-V6C 1x Power cord IEC 1x Remote W-2 1x Receiver KT-1 Manual (German / English) 3.2.

  • Page 7: Start-Up

    Nebelmaschine DF-V6C Art.No.: 115297 4. Start-up Attention! Remove before start-up every packing material. 1. Fill the tank with fluid. Make sure that there is always enough fluid in the tank. 2. Connect the device to the power supply and switch it on. 3.

  • Page 8: Dmx Chart

    Nebelmaschine DF-V6C Art.No.: 115297 4.1.2. DMX chart If the device is controlled by DMX the display shows the set DMX address. Channel Value from Value to Function No function Output volume low - high 4.1.3. Wireless Remote Connect the receiver with the device by using the INPUT “Wireless Controller“. If you want to use several devices you can assign up to 4 devices to one remote, by using the receivers.

  • Page 9: Technical Data

    Nebelmaschine DF-V6C Art.No.: 115297 5. Technical data Voltage AC 220 V – 240 V; 50/60 Hz Power consumption max. 1350W Fuse 8A/250 V Heating power 1350 W Heating time 4 min Tank volume 2,5 Liter Output volume 850 m³/min Fluid consumption @100% 149 ml/min DMX512 Number of DMX channels...
  • Page 10 Nebelmaschine DF-V6C Art.No.: 115297 For your notes: 10 / 13...
  • Page 11 Nebelmaschine DF-V6C Art.No.: 115297 For your notes: 11 / 13...
  • Page 12 Nebelmaschine DF-V6C Art.No.: 115297 For your notes: 12 / 13...
  • Page 13 Nebelmaschine DF-V6C Art.No.: 115297 Importer: B&K Braun GmbH Im Stockmädle 27 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 13 / 13...
