Altronix ALTV615DC8UL Quick Start Manual page 2

Terminal Identification:
AL400ULB - Power Supply Board
Terminal Legend
AC/AC
+ DC ---
PD8UL - Distribution Module
Terminal Legend
1P - 8P
1N - 8N

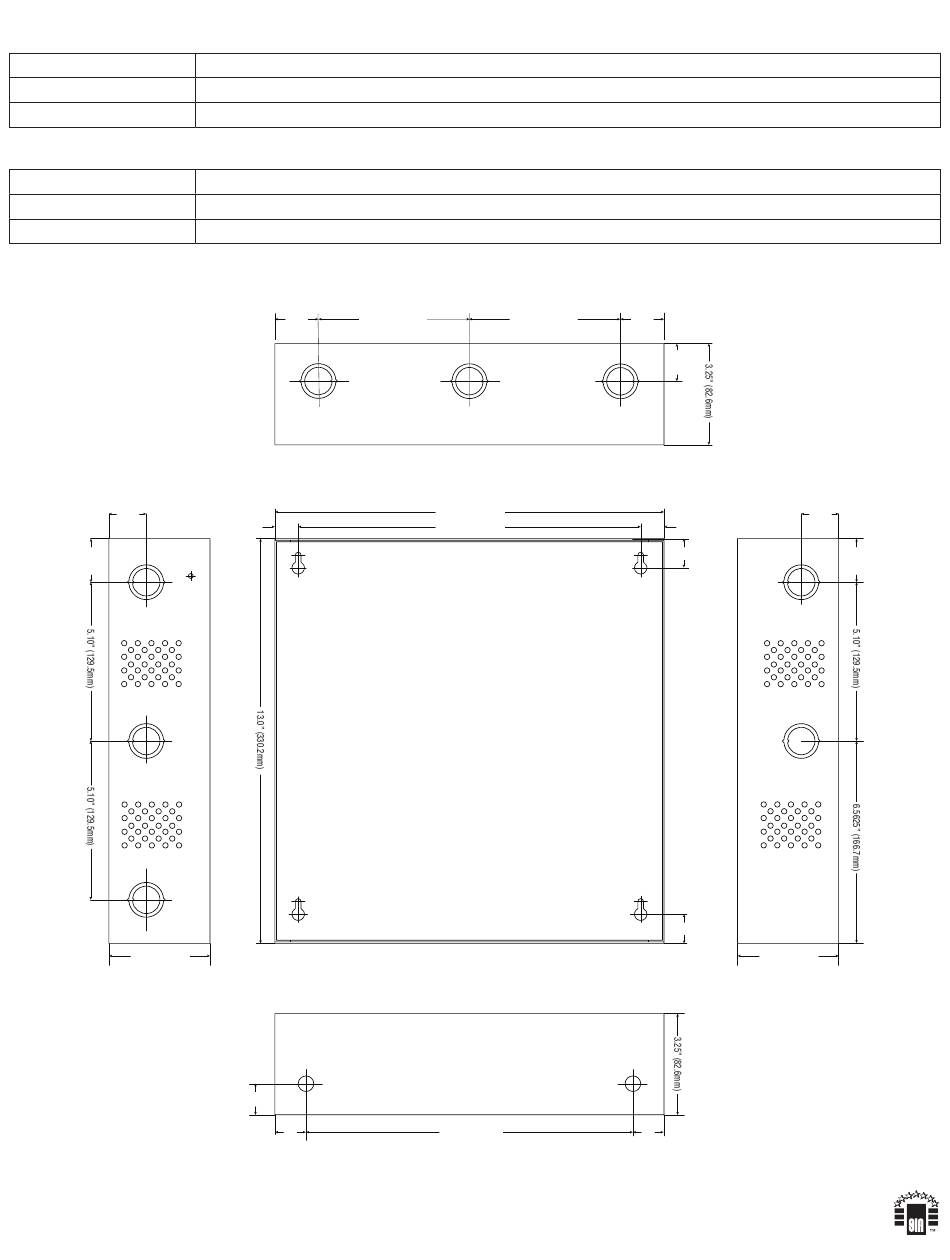

Enclosure Dimensions (H x W x D approximate):
13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.55mm)
1.20"
(30.5mm)
1.40"
(35.6mm)
3.25" (82.6mm)
Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty
IIALTV615DC8UL Rev. 042806
Function/Description
Low voltage AC input (24VAC 100VA). Altronix part #T24130.
6VDC-15VDC @ 4A total continuous output.
Function/Description
Positive DC output, Class 2, power-limited.
Negative DC output, Class 2, power-limited.
1.40"
4.85" (123.2mm)
(35.6mm)
0.75"
(19.1mm)
1.0" (25.4mm)
1.0"
(25.4mm)
4.85" (123.2mm)
12.5" (317.5mm)
11.0" (279.4mm)
10.5" (266.7mm)
K15U
1.40"
(35.6mm)
1.20"
(30.5mm)
0.75"
(19.1mm)
(30.5mm)
0.9375" (23.8mm)
0.9375" (23.8mm)
3.25" (82.6mm)
1.0"
(25.4mm)
1.20"
1.40"
(35.6mm)
