Assa Abloy SECURITRON M8 Quick Start Manual

M8 Managed
Power Control Module
Quick Start Guide

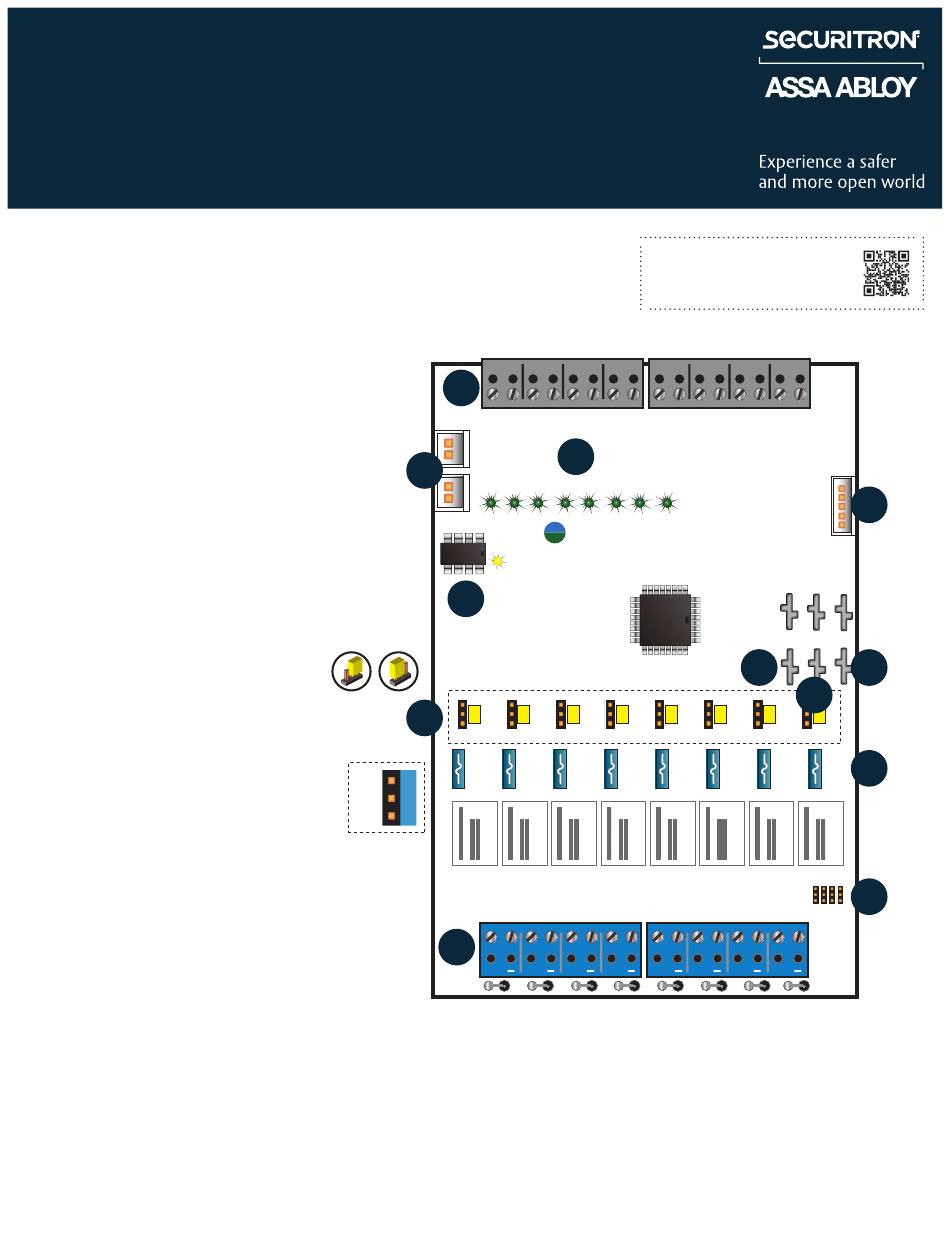

Overview
1
Zone Inputs (INPUT 1–8)
These are the zone input terminal strips.
These terminal strips are removable
and accept wire sizes from AWG12 –
AWG22. The terminals are labeled on
the PC board near the terminal strip.
See the Input Wiring section of the
full manual for more information.
• When using a dry contact input, the
contact is connected across the A and
B terminals. It is normal to measure
a voltage across these two terminals.
This voltage is current limited and will
not damage the activation contact.
• When using a voltage input, the voltage
is connected to the B terminal. The
activation voltage must be common
grounded with the system voltage. The
activation voltage must be between 12
and 24VDC nominal. Do not connect
anything to the A terminal of the input.
• When using an open collector
(transistor) input, place a jumper
across the A and B terminals and
connect the open collector to the B
terminal. Note that the input source
must be common grounded with
the M8 board's power source.
2
FlexIO Connectors
These connectors pass the FAI and
Fault signals to and from the M8 board
and pass the FlexIO buss on to other
accessory boards in the system.
3
Output LEDs
(OUTPUT STATUS 1–8) — Green/Blue
These LEDs indicate the voltage and
status of the zone's output. LED numbers
correspond with the zone number
(e.g. LED 1 is the LED for Output 1).
These LEDs are dual color and indicate
the voltage as follows:
• Blue Output is set for 24V
• Green Output is set for 12V
• Off Fuse or PTC open
A B A
1
IN1 IN2
FlexIO FlexIO
2
1 2 3
FAULT FAULT
4
5
J1
B1
3 F1
2
B2
1
OUT1 OUT2 OUT3 OUT4
6
+ +
When Powering Lock Devices:
• On Steady Door Locked
(Fuse or PTC Intact)
• Slow Flashing (1 per second)
Door Unlocked (Either due
to Zone Input or FAI)
• Fast Flashing (4 per second)
Fault Detected on Zone
Specifications and more details
found in the full manual here.
INPUT FIELD WIRING
B A B A B A B A B A B A B
IN3 IN4 IN5 IN6
3
4 5 6 7 8
Output Output
Status Status
turns blue when 24V
turns green when 12V
OUTPUT FIELD WIRING
OUT5 OUT6 OUT7 OUT8
+ + + +
When Set for Constant Output:
• On Steady Output Powered
(Fuse or PTC Intact)
• Slow Flashing (1 per second)
Output Unpowered (Due to FAI)
• Fast Flashing (4 per second)
Fault Detected on Zone
(Downloadable pdf)
IN7 IN8
12
BR B2 B1
BR B2 B1
9 11
10
J8
8
F8
Wet Wet
7
Dry Dry
+ +
