Assa Abloy Securitron NL4 Quick Start Manual

Securitron
Power Monitoring Module
Quick Start Guide
Product Description
This Securitron Netlink (NL) Quick Install manual gives the basic
information needed to install a 2nd Generation NL4 module.
The Securitron NL is used to monitor power supply system status
over a local or wide area network. When used with a Securitron AQL
DC system, the Securitron NL will allow limited control of the power
system and provide values on demand for power supply output voltage,
operational fault status, battery charging voltage, battery charging
current, and fire alarm input status. In addition, the Securitron NL's
may be used with any 8-30 VDC power supply in a limited fashion.
Specifications
Certifications
•
UL 294 Listed
•
UL603 Listed
•
UL1076 Listed
•
ULC-S318 Listed
•
ULC-S319 Listed
•
CSA C22.2 #205
Electrical
•
Input
x
Operating Voltage: 8 to 30 VDC
x
Operating Current: 60 mA nominal
•
Network Data Rate: 10/100 Mbps
•
Voltage Measurement Range: 0 to 30 VDC ±3%
•
Current Measurement Range:
0 to 20 A ± 0.1 A + 5% of reading
•
Event
x
Input: 9 to 30 VDC
x
Current: 15 mA Max
Output 1 & 2 Current: 50 mA maximum
Shipping Weight
•
.25 lbs
Dimensions
•
4" x 2.5" x 1.5" [101.6mm x 63.5mm x 38.1mm]
Mounting Power Boards
to the Enclosure
Mounting a Securitron Intelligent Power Board to an
enclosure is via the four snap-in standoffs supplied.
1
Locate the appropriate mounting holes in the enclosure
and snap the standoffs into the holes.
2
Align the board mounting holes with the standoffs (be sure the PC
board is properly oriented) and snap the board onto the standoffs.
Netlink
® ™
Manual covers Firmware Rev 8.07l-45
Older firmware revisions may not have all features
described. See the latest firmware release notes at www.
lifesafetypower.com/support/software-firmware-downloads
Resetting the Securitron Netlink
If the user name or password is unknown for a Securitron
Netlink board, press and hold the Reset button located next
to the backup battery for 10 seconds to return these values
to default. Pressing the Reset button for 30 seconds will also
reset the IP address, certificate, and Cipher Suite to default.
Upgrading Securitron Netlink Firmware
The browser history/cache should be cleared after performing
the firmware upgrade and before accessing the Securitron
Netlink again to prevent any cached pages from giving outdated
information. See page 23 for detailed steps for firmware upgrades
Consult your IT department for information on these settings.

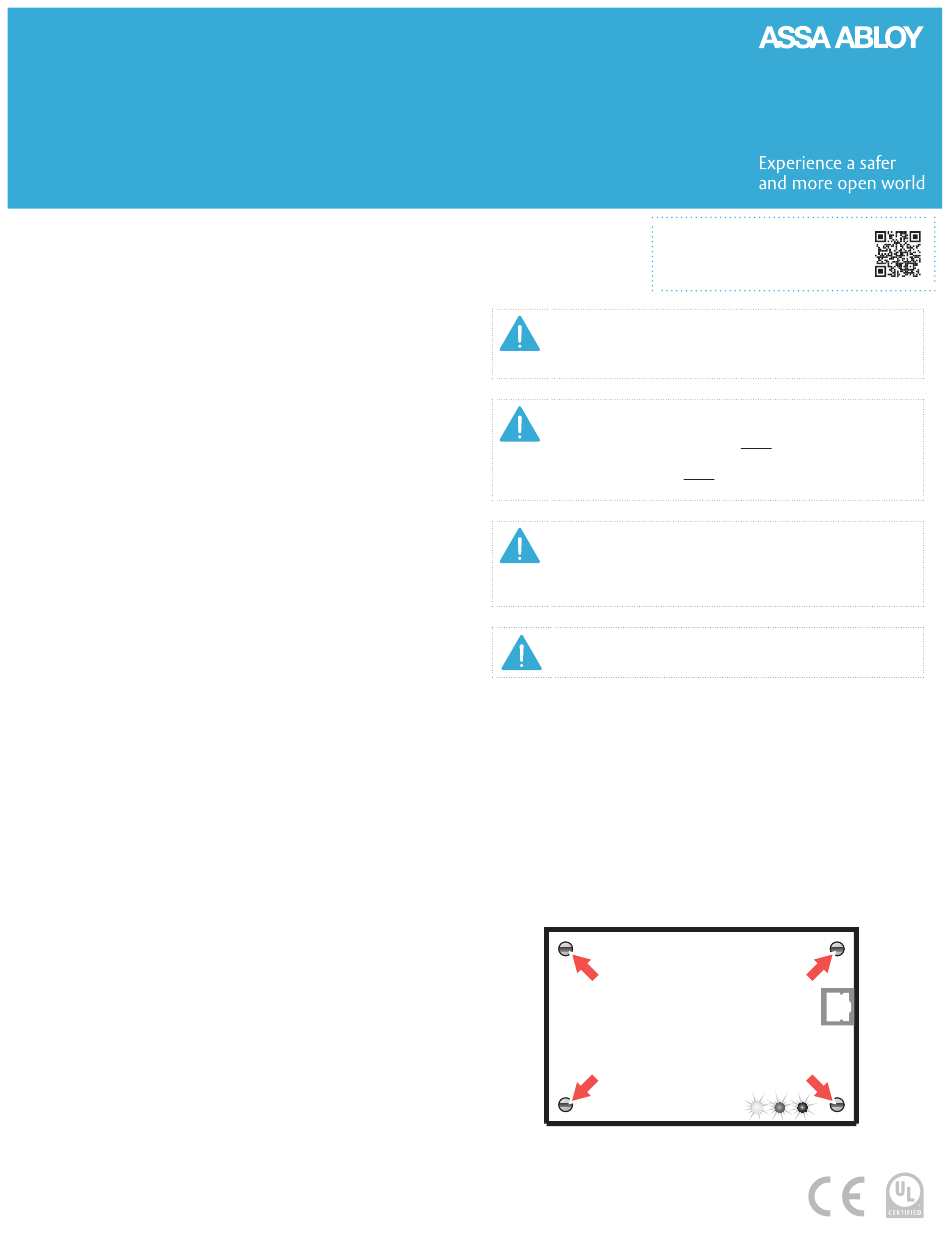

Diagram 1: Snap-in standoffs
Specifications and more details
found in the full manual here.
(Downloadable pdf)
