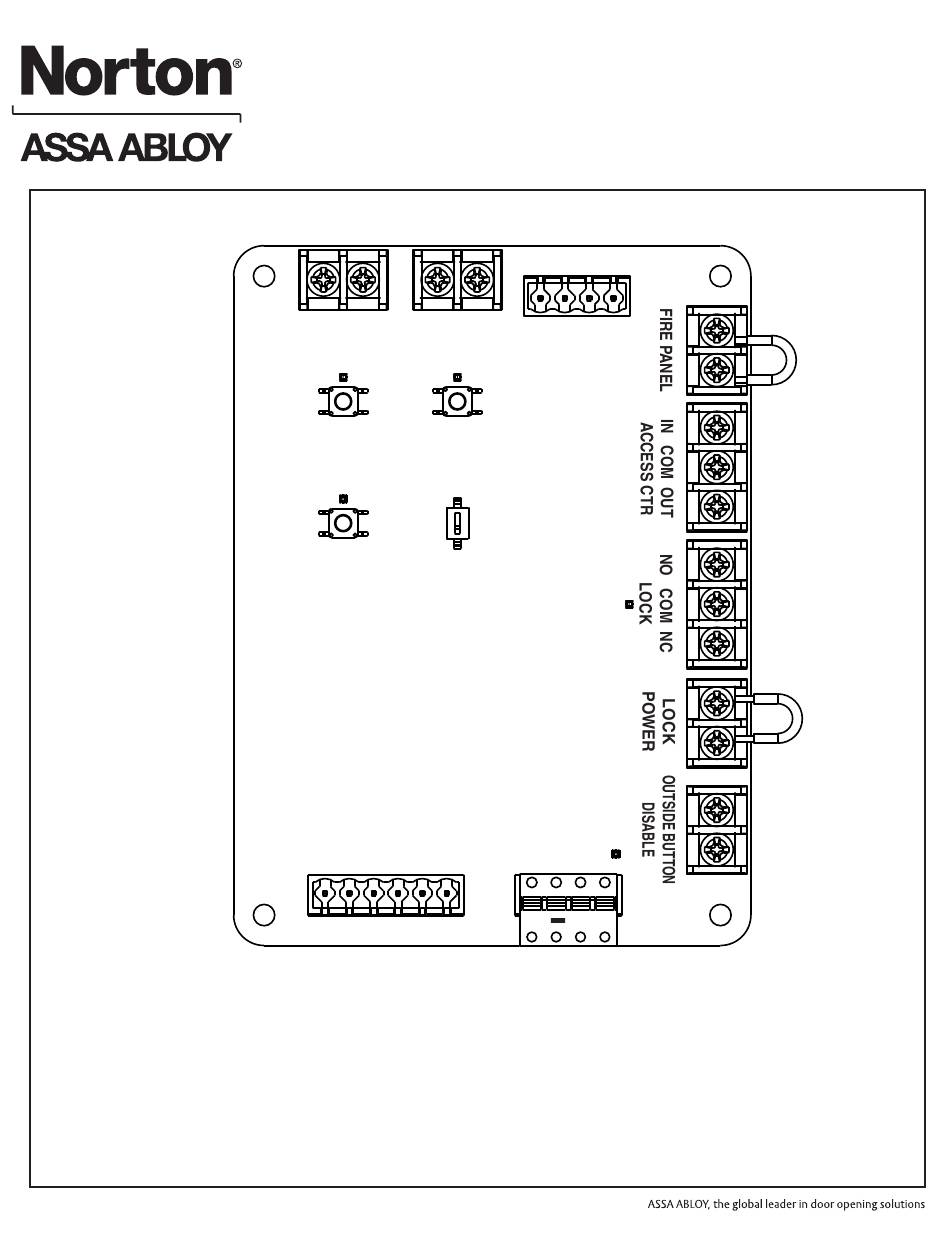

ADAEZ Wireless Interface Module
Installation and Operation Instructions
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate this device.
To obtain the latest manual and template revisions or to view installation and programming videos go to
www.nortondoorcontrols.com. For technical support call 800-438-1951 x6030, Option 4.
Copyright © 2018, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights
reserved. Reproduction in whole or in part without the express written permission of ASSA
ABLOY Accessories and Door Controls Group, Inc. is prohibited.

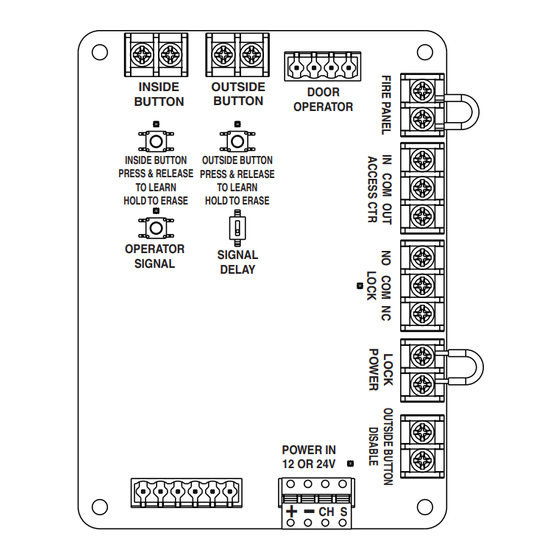

OUTSIDE
INSIDE
BUTTON
BUTTON
INSIDE BUTTON
OUTSIDE BUTTON
PRESS & RELEASE
PRESS & RELEASE
TO LEARN
TO LEARN
HOLD TO ERASE
HOLD TO ERASE
OPERATOR
SIGNAL
SIGNAL
DELAY
CAUTION
1 of 17
Wireless Interface Module
Operating Instructions
DOOR
OPERATOR
POWER IN
12 OR 24V
+
CH S
®
ADAEZ (WIM)
Installation and
700703
REV H 09/18
Advertisement
Related Manuals for Assa Abloy Norton ADAEZ WIM
Summary of Contents for Assa Abloy Norton ADAEZ WIM
- Page 1 To obtain the latest manual and template revisions or to view installation and programming videos go to www.nortondoorcontrols.com. For technical support call 800-438-1951 x6030, Option 4. Copyright © 2018, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights 1 of 17 reserved.
- Page 2 ADAEZ Wireless Interface Module Installation and Operation Instructions Purpose Discussion This manual provides system description, installation instructions, operating instructions, and troubleshooting recommendations for the ADAEZ Wireless Interface Module (referred to as the WIM). The ADAEZ WIM allows the ADAEZ swing door operator to interface with the ADAEZ wired or wireless pushbuttons, wireless remote, an electric lock, fire panel, access control, and an outside pushbutton disable contact.
- Page 3 ADAEZ Wireless Interface Module Installation and Operation Instructions System Description General The ADAEZ WIM allows the ADAEZ swing door operator to interface with: • ADAEZ wireless (RF) push buttons or • Wired push buttons • ADAEZ wireless (RF) hand held transmitter •...
- Page 4 ADAEZ Wireless Interface Module Installation and Operation Instructions Mount and Apply Power to the WIM b. If Power supply is by others, connect the power 1. Mount the WIM enclosure in a remote location supply using the provided GREEN connector. If as desired.
- Page 5 ADAEZ Wireless Interface Module Installation and Operation Instructions Erase All RF Codes from the Door Operator NOTE: 2. Refer to Figure 3. PRESS and HOLD the LEARN button and PRESS and RELEASE the RESET The ADAEZ swing door operator is shipped with wireless RF pushbuttons that are pre-programmed to button on the setup board.
- Page 6 ADAEZ Wireless Interface Module Installation and Operation Instructions Connect Pushbuttons and/or Handheld Remote to WIM NOTE: steady beep and the RED LED lights flashes 4 times rapidly the RF memory is full and must be The pushbuttons may be connected by wire or wireless connection to either the INSIDE activation or OUTSIDE reset in order to learn a new RF activation signal.
- Page 7 ADAEZ Wireless Interface Module Installation and Operation Instructions Erasing RF Codes from WIM LED D4 INSIDE OUTSIDE LED D3 DOOR BUTTON BUTTON OPERATOR INSIDE BUTTON OUTSIDE BUTTON PRESS & RELEASE PRESS & RELEASE TO LEARN TO LEARN HOLD TO ERASE HOLD TO ERASE LED D5 OPERATOR...
- Page 8 ADAEZ Wireless Interface Module Installation and Operation Instructions Connect an Electric Lock to the WIM A normally open or normally closed contact are NOTE: The electric lock contact will switch state when the provided for fail safe or fail secure lock installation.
- Page 9 ADAEZ Wireless Interface Module Installation and Operation Instructions Connect the WIM to Access Control, Alarm Panel, or Fire Panel Refer to Figure 6 and connect the optional Access NOTE: Closing the ACCESS CTRL IN contact will switch the Control Input contact, Alarm Panel Output contact, or Fire Panel Input contact.
- Page 10 ADAEZ Wireless Interface Module Installation and Operation Instructions Connect the Outside Pushbutton Disable NOTE: 1. Refer to Figure 6 and Connect the OUTSIDE PUSHBUTTON DISABLE contact to the deadbolt Closing the OUTSIDE BUTTON DISABLE contact will prevent the WIM from accepting an activation signal monitoring switch.
- Page 11 ADAEZ Wireless Interface Module Installation and Operation Instructions Electric Strike with RF or Wired Pushbuttons & Card Reader (or other access control) Wired or Wireless Pushbutton Connection Optional Handheld Remote (Not Included) CARD READER (ACCESS OUTSIDE INSIDE CONTROL) DOOR BUTTON BUTTON OPERATOR INSIDE BUTTON...
- Page 12 ADAEZ Wireless Interface Module Installation and Operation Instructions All Connections used on WIM Optional Handheld Remote Wired or Wireless (Not Included) Pushbutton Connection FIRE PANEL CARD READER (ACCESS OUTSIDE INSIDE CONTROL) DOOR BUTTON BUTTON OPERATOR INSIDE BUTTON OUTSIDE BUTTON ALARM PRESS &...
- Page 13 ADAEZ Wireless Interface Module Installation and Operation Instructions Troubleshooting Recommendations Symptom Recommended Remedy LED D8 does not light If using the ADA1015P hardwire kit verify the black wire with · Green when Operator white stripe is plugged into the “-“ terminal and the black wire is cable is plugged into WIM plugged into the “+”...
- Page 14 ADAEZ Wireless Interface Module Installation and Operation Instructions Troubleshooting Recommendations - con’t Symptom Recommended Remedy Lock does not unlock If RF buttons are used and LED D3 is NOT flashing perform · when an INSIDE activation troubleshooting steps in section “RF transmitters will not is sent.
- Page 15 ADAEZ Wireless Interface Module Installation and Operation Instructions Troubleshooting Recommendations - con’t Symptom Recommended Remedy The ADAEZ operator If RF buttons are used and LED D3 is NOT flashing · does not activate when perform troubleshooting steps in section “RF transmitters pushing the INSIDE will not Sync to WIM”...
- Page 16 1) l'appareil ne doit pas produire de brouillage; 2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Norton Door Controls ASSA ABLOY is the global 3000 Highway 74 East leader in door opening solutions, Monroe, NC 28112 dedicated to satisfying Tel: (800)-438-1951 ext.
