  • Page 1 ePED escape route technology ® www.assaabloy.de Produktname ePED ® 1386CMC central escape route control Produktname Installations- und Montageanleitung Installation and Operating Instructions The global leader in The global leader in DXXXXXNN D0122800 door opening solutions door opening solutions...
  • Page 2 ® is a registered trademark of ASSA ABLOY Sicherheitstechnik GmbH. Open Source Licenses ASSA ABLOY Sicherheitstechnik GmbH has the source code of the software used in the scope of Open Source licenses (such as FreeRTOS™, newlib, lwIP) available on request: http://www.assaabloy.com/com/global/opensourcelicense/...

  • Page 3: Table Of Contents

    Table of contents Product information ........4 ePED ®...

  • Page 4: Product Information

    Product information ePED ® escape route technology Electrical locking devices of doors along escape routes protect escape routes from misuse. The door is blocked in the escape direction in the process. In case of danger, the escape door is released with an emergency open button and an alarm is triggered.

  • Page 5: Explanation Of Terms

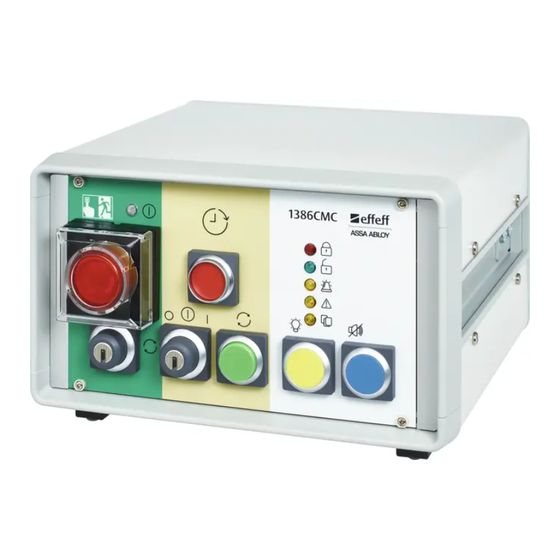

    Fig. 1 : ® ePED 1386CMC central escape route control 1386CMC Explanation of terms Term Description Release delay The release delay is the wait time until the escape door is unlocked after actuation of the Emergency Open push-button. ® Terminal The ePED 1386-00 door terminal (terminal) comprises several modules installed in a wall-mounted housing.

  • Page 6: Safety Instructions

    Safety instructions About this manual The installation and configuration of the product must be performed by a qualified expert in electromechanical equipment; assembly work must be performed by a person with expertise in the type of work to be performed or by appropriately trained personnel.
  • Page 7 Danger due to faulty commissioning: In order to ensure the safety of the product, commissioning must be performed by a qualified person. ASSA ABLOY Sicherheitstechnik GmbH offers training for qualification in the requisite skills. Danger due to faulty maintenance: The owner is responsible for correct instal- lation and functional inspection of the product and connected components.
  • Page 8 “local mode” and the functions of the central escape route control system are no longer available. · Ensure that the network connection is trouble-free. In order to exclude influ- ences by other network devices, ASSA ABLOY Sicherheitstechnik GmbH recom- mends a separate network structure for the escape route. Safety instructions...

  • Page 9: Intended Use

    It is not permissible to extend the release time or blocking without being able to see the escape door. ASSA ABLOY Sicherheitstechnik GmbH can provide the necessary planning information for approved solutions and the device combinations required for your application.

  • Page 10: Functions And Operation

    Functions and operation Operating elements Fig. 2 : ePED ® 1386CMC central escape route control 1386CMC No. Description No. Description Tab. 1: Key for Fig. 2 Emergency Open switch LED (red/ green) – status of the emergency button Push-button – activate extend- LED (red) –...

  • Page 11: Emergency Button For Central Release

    Emergency button for central release Emergency button for central release Fig. 3 : With the emergency button for central Emergency button release (Fig. 2– , Fig. 3) , all escape doors of and key switch the building or escape door groups are released from one or more central points in an emergency or panic situation.

  • Page 12: Double Release Delay

    Double release delay Note! The release delay must be activated: the release delay must be activated at the affected escape door systems (on the hardware side). There are escape door terminals on the escape doors (manual D01022xx ePED ® ePED ®...
  • Page 13 Activate extended release delay The red push-button is flashing. Authorise yourself as an authorised safety person at the key switch (Fig. 2– , Fig. 4). Press the red push-button (Fig. 2– , Fig. 4).  The extended release delay is activated. ...

  • Page 14: Monitoring Status

    Monitoring status Emergency button status The status of the central emergency button is displayed via a red/green LED (Fig. 2 – Status Description The central emergency button has been actuated – Illuminates emergency button is engaged The central emergency button has not been actuated Illuminates –...
  • Page 15 Alarm issued If one or more release requests have been triggered – the Emergency Open button on the terminals was actuated – this is displayed by a yellow LED (Fig. 2– Status No alarm At least one escape door, but not all, Flashes report alarm and release request Illuminates All escape doors report alarm and...
  • Page 16 Status of the connection to the alarm system The condition of the connection to the alarm system is displayed by a yellow LED (Fig. 2– Status The connection to the alarm system works The alarm system has been Flashes deactivated Illuminates The communication between the central escape route control system and alarm system is...

  • Page 17: Test Key

    Test key Test the central escape route control system The proper function of all indicators must be tested, in a maintenance, for example. Press the yellow push-button.  All indicators illuminate and an acoustic signal sounds. Acoustic alarm signal Switch off acoustic alarm signal (alarm horn) The alarm has been triggered.

  • Page 18: Fitting And Installation

    Fitting and installation Central 1386CMC 1386CMC escape route control 1386CMC 1 ... 32 1 ... 126 doors CMC connector 1386 CMC-CON 24 VDC 901 Hub 01 Interface for locking systems 1386S00 Escape door locking system Door terminal 1386 Fig. 5: Principle of integration of ePED ®...

  • Page 19: Circuit Board

    Circuit board Fig. 6: Circuit board Factory setting: DIP switch 1 ( DIP switch 2 ( 4 3 2 1 No. Description No. Description Tab. 2: Key for Fig. 6 Ethernet USB connection for event log- ger (“Logging via event logger”, page 32) Connection for Hi-O Technology™...

  • Page 20: Configuration

    Configuration Configuration with CMCFG software ® The CMCFG software serves to configure an ePED escape route control system made up of ® · a maximum of 32 ePED 1386CMC central escape route controls and · an ePED ® CMC connector 1386 CMC-CON for each door. An ePED ®...

  • Page 21: Notes On Configuration

    Notes on configuration Caution! Damage due to loss of configuration data: The configuration data is saved in a file. The configuration data is always required for expansions and modifications. If the configuration data is lost, the control system has to be completely reconfig- ured.

  • Page 22: Basic Sequence In Configuration

    Basic sequence in configuration Create a configuration file. 1.1 „Start software“ 1.2 „Create a new configuration“ Configure the CMC boxes. 2.1 „Configure CMC boxes“, Seite 24 Configure the doors. 3.1 „Configure doors“, Seite 25 Configure the connection between CMC boxes and doors. 4.1 „Link CMC boxes with doors“, Seite 26 Use USB cables to transfer the respective fitting locations of the data to the CMC boxes.
  • Page 23 Create a new configuration Create a new configuration table · Click or press System / New or Enter the data and confirm with · The designation is later shown via the cross-classified table for configuration (Fig. 7 – · A column is created for every CMC box (– ·...
  • Page 24 Configure CMC boxes Prerequisite The configuration to be edited is open and the cross-classified table (Fig. 7, page 23) is displayed (“Load a system configuration”, page 30). Configure doors Click column header Box <no.> .  The CMC box dialogue is displayed. Edit data Click ...
  • Page 25 Configure doors Prerequisite The configuration to be edited is open and the cross-classified table (Fig. 7, page 23) is displayed (“Load a system configuration”, page 30). Configure doors Click the row header Door .  The CMC connector dialogue is displayed. Edit data Click ...
  • Page 26 Link CMC boxes with doors Prerequisite The configuration to be edited is open and the cross-classified table(Fig. 7, page 23) is displayed (“Load a system configuration”, page 30). Configure CMC boxes and doors Assign the doors to the CMC boxes, setting / in the cross-classified table.
  • Page 27 Send data to a CMC box Prerequisite Using a USB cable, the CMC box is connected to the computer on which the CMCFG software is running. The configuration to be edited is open and the cross-classified table (Fig. 7, page 23) is displayed (“Load a system configuration”, page 30).
  • Page 28 Send data to a door Prerequisite Using a USB cable, the door to be configured is connected between the CMC connector of the door and the computer, on which the CMCFG software is running. The configuration to be edited is open and the cross-classified table (Fig. 7, page 23) is displayed (“Load a system configuration”, page 30).
  • Page 29 Test function of the door The test may have to be carried out by two people at the door and the controlling CMC box. Warning! Risk of death if a test result is incorrectly interpreted: If, during a test, a con- crete door is sent a release request from a further door at the same time, this second signal can be erroneously interpreted as a successful test result.

  • Page 30: General Operation

    General operation Load a system configuration Open a saved configuration file. · Click or press System / Load or  A cross-classified table with the entered number of doors in the rows and CMC boxes in the columns is displayed (Fig. 7, page 23). Change the designation of the configuration Prerequisite The configuration to be edited is open and the cross-classified table (Fig.
  • Page 31 Configuration...

  • Page 32: Technical Data

    Technical data Logging via event logger A standard USB stick is required for the recording of events in the system, which must be inserted into one of the four USB connections (Fig. 6, page 19) – The time is set using the CMC configuration programme. The log is recorded in the folder ERLOG/ on the USB stick;...

  • Page 33: Technical Data

    Technical data Feature Characteristic Power supply in accordance with DIN EN 60950-1 SELV 12 V (–10 %) to 24 V (+10 %) optimal voltage = 24 VDC Maximum current consumption at 24 V 200 mA at 12 V 500 mA Application site for use in indoor areas Protection rating...

  • Page 34: Maintenance

    · The safe function must be tested by a trained qualified expert at least once per year. · Requirements established by inspection authorities must be complied with. ASSA ABLOY Sicherheitstechnik GmbH offers training for qualification in the requi- site skills. In particular: ·...

  • Page 35: Warranty, Disposal

    Warranty, disposal Warranty The statutory warranty periods and Terms and Conditions of Sale and Delivery of ASSA ABLOY Sicherheitstechnik GmbH apply (www.assaabloy.de). Updated information www.assaabloy.de Updated information, such as reports on current fire testing, can be found online at: www.assabloy.de Disposal Dispose of lock in accordance with the EPD (Environmental Product Declaration).
