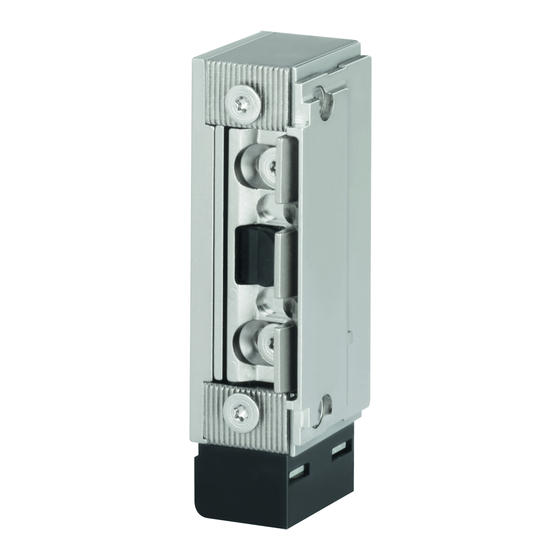

Fluchttüröffner Modell 332...
Montageanleitung
Mounting Instructions
Notice de Montage
D00418
06

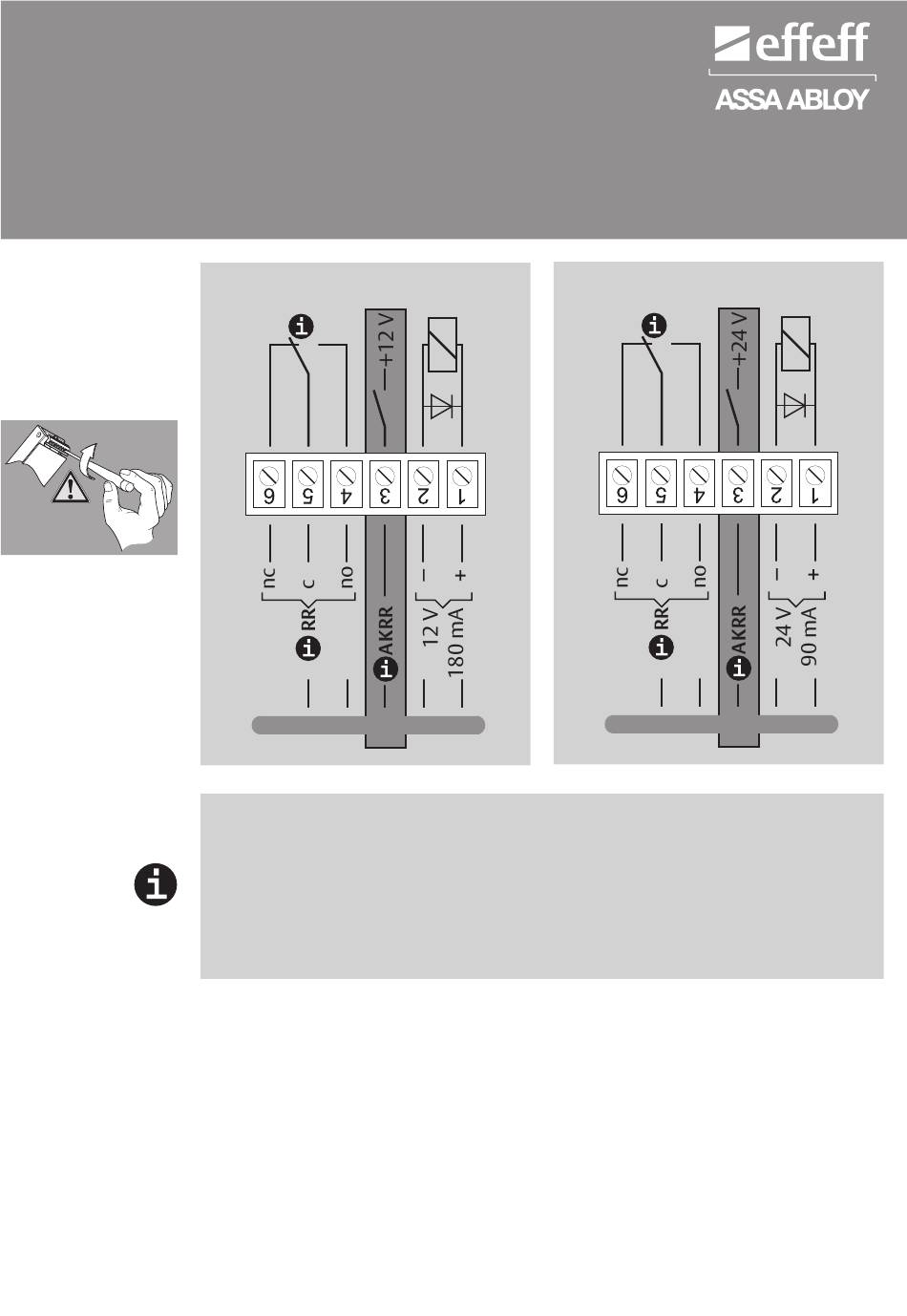

Anschlussplan
Connection
Connexion
0,2 Nm
max.
332... E91 RR (AKRR) 12 V
E
F
Kontaktstellung: Tür offen / Contact position: Door open
RR
= Rückmeldekontakt / Monitoring contact
AKRR
= Ankerrückmeldekontakt Ausgang / Amature contact output
bei verriegelt: / when locked:
332... E91:
332... F91:
Für potenzialfreien AKRR verwenden Sie das Koppelrelais 7480
For potential free AKRR use relay 7480
D
B
A
+12 V/100 mA max.
+24 V/100 mA max.
ASSA ABLOY, the global leader
in door opening solutions
332... F91 RR (AKRR) 24 V
E
F
D
B
A
