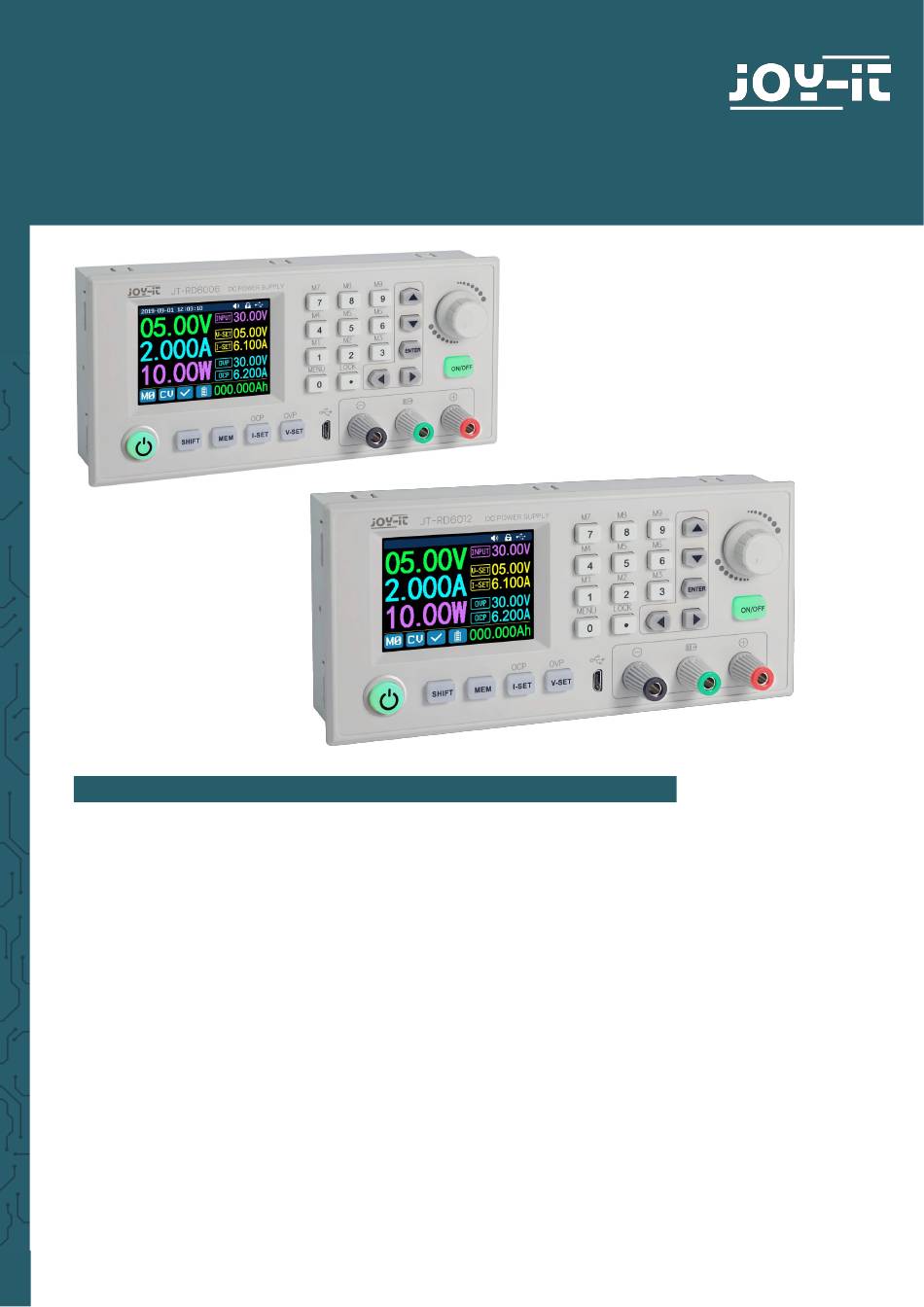

LABORATORY POWER SUPPLY
JT-RD6006 / JT-RD6012
1. GENERAL INFORMATION
Dear customer,
thank you very much for choosing our product.
In the following, we will introduce you to what to observe while starting
up and using this product.
Should you encounter any unexpected problems during use, please do
not hesitate to contact us.
The RD6006 and the RD6012 are constant voltage and constant current
DC power supplys which can convert voltages down.
They are very easy to handle and the adjustment can either be made by
keypad or by the encoder or even both.
It is easy and quick to store and recall data and the devices are connecta-
ble with a PC or via WIFI with a handheld device in addition to that you
can use an App for control. On the 2.4 " colour screen you can read out
many values and additional information.
www.joy-it.net
Pascalstr. 8 47506 Neukirchen-Vluyn

Advertisement

loading
Need help?

Need help?

Do you have a question about the JT-RD6012 and is the answer not in the manual?

Questions and answers

Summary of Contents for Joy-it JT-RD6012

  • Page 1 LABORATORY POWER SUPPLY JT-RD6006 / JT-RD6012 1. GENERAL INFORMATION Dear customer, thank you very much for choosing our product. In the following, we will introduce you to what to observe while starting up and using this product. Should you encounter any unexpected problems during use, please do not hesitate to contact us.
  • Page 2 Here it can come to the fact that if you connect an inductive load to our prod- uct that this load then continues to power our product in the switched-off mode. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
  • Page 3 Output voltage preset value Current output current Output current preset value Overvoltage protection value Current output power Overcurrent protection value Current data group Battery-related information Constant voltage/Constant current status Battery charging indication Protection status indication www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
  • Page 4 External temperature sensor interface Power Source input interface CR1220 battery socket Input fuse Fan interface Output fuse Communication module interface The input and output fuses are fast-blow 10 A fuses in the SMD, 6.1x2.7mm package. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
  • Page 5 The input and output fuses are fast-blow 20 A fuses in the SMD, 6.1x2.7mm package. The sockets next to the fuses are only approved for 10 A. When replacing the fuse, you must desolder the old fuse and re-solder the new one in the same position. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
  • Page 6 (OVP). The overcurrent protection switches off the output of the unit as soon as the current set at OCP is exceeded at the output. The overvoltage protection switches off the output of the device as soon as the voltage at the output exceeds the voltage set on OVP. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
  • Page 7 255. You can set the date and time by rotating the encoder, the setting will be saved immediately after modification. Please do not set a wrong time, it may cause the date to not be automatically accumulated. Press the encoder to return and the set value will be saved automatically. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
  • Page 8 You can press 'SHIFT' + '0' to enter the system setting menu, then press the right button three times to enter the system information menu as shown above. You can view the SN number, firmware version and system temperature here. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
  • Page 9 Simac GmbH, Pascalstr. 8, D-47506 Neukirchen-Vluyn, Germany Possibility of return in your area: We will send you a parcel stamp with which you can return the device to us free of charge. Please contact us by e-mail at Service@joy-it.net or by telephone. Information on packaging: If you do not have suitable packaging material or do not wish to use your own, please contact us and we will send you suitable packaging.
