1. GENERAL INFORMATIONS

Dear customer,
thank you for purchasing our product. In the following, we will show you
how to use your product.
Should you encounter any unexpected problems during use, please do not
hesitate to contact us.

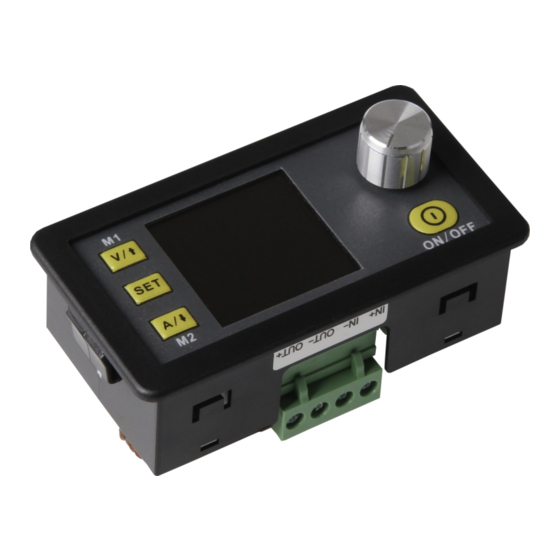

This power supply unit is characterized by its outstanding precision and
accuracy and combines analog and digital technologies in an advanced de-
sign. The adjustable output reaches up to 50V or 5A and can be precisely
configured in 0.001A steps. The power supply is additionally equipped with a
switch-off parameter memory and ten programmable data memories. The
operation of the device has been optimized for particularly easy operation
and the colour display offers particularly detailed and comprehensive infor-
mation. Among other things, the current voltage and current values, preset-
tings and output powers can be displayed here. Dynamic notification sym-
bols also facilitate clarity. The additional settings menu offers maximum
control of overcurrent and overvoltage values as well as other parameters.
The DPS5005 offers modern design and advanced technology in a compact
package, making it the ideal power supply.
www.joy-it.net
Pascalstr. 8 47506 Neukirchen-Vluyn

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DPS5005 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Joy-it DPS5005

  • Page 1 The additional settings menu offers maximum control of overcurrent and overvoltage values as well as other parameters. The DPS5005 offers modern design and advanced technology in a compact package, making it the ideal power supply. www.joy-it.net...
  • Page 2 The non-observance can cause substan- tial damage at your device. Operate the device exclusively with direct current! Operating the device with alternating current can lead to fatal electric shocks and irreparable damage to the device. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
  • Page 3 Output current (current value) Output power (current value) Input voltage Limit of output current Lock / enlock keys Normal / abnormal status Constant voltage / current Number of data group Active / inactive output Preset output voltage www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
  • Page 4 Turn the Rotary encoder to adjust the brightness from 0 to 5. O defines the darkest and 5 the brightest setting. Press the SET button to return to the menu options. Press the SET button again to exit the menu. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
  • Page 5 Hold down SET for more than 3 seconds to show M0 on the right side of the screen. Through rotating the rotary switch is it possible to choose the requested data group (M0 - M9). To activate the chosen data group, press SET. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
  • Page 6 3 seconds to block the keys or to unlock them again at any time . The status of the key lock is shown with the lock symbol on the right side of the screen. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
  • Page 7 We send you a parcel stamp with which you can send us your old appli- ance free of charge. For this possibility, you must contact us via e-mail at service@joy-it.net or via telephone. Information about packaging: Please package your old appliance safe during transport. Should you not...
