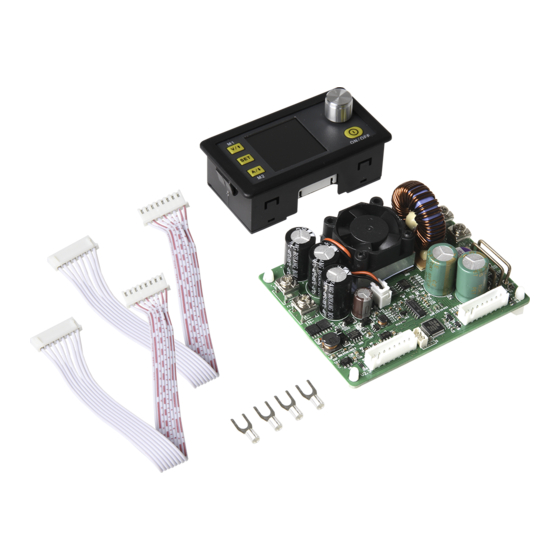

DPS5015
Programmable power supply
1. GENERAL INFORMATION
Dear customer,
thank you for purchasing our product. In the following, we will show you
how to use your product.
Should you encounter any unexpected problems during use, please do not
hesitate to contact us.
This power supply unit is characterized by its outstanding precision and
accuracy and combines analog and digital technologies in an advanced
design. The adjustable output reaches up to 50V or 15A and can be
precisely configured in 0.01A steps. The power supply is additionally
equipped with a switch-off parameter memory and ten programmable data
memories. The operation of the device has been optimized for particularly
easy operation and the colour display offers particularly detailed and
comprehensive information. Among other things, the current voltage
and current values, presettings and output powers can be displayed
here. Dynamic notification symbols also facilitate clarity. The additional
settings menu offers maximum control of overcurrent and overvoltage
values as well as other parameters. The DPS5005 offers modern design
and advanced technology in a compact package, making it the ideal power
supply.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Joy-it DPS5015
Summary of Contents for Joy-it DPS5015
- Page 1 DPS5015 Programmable power supply 1. GENERAL INFORMATION Dear customer, thank you for purchasing our product. In the following, we will show you how to use your product. Should you encounter any unexpected problems during use, please do not hesitate to contact us.
- Page 2 2. TECHNICAL DETAILS Input voltage 6 - 60 V Output voltage 0 - 50 V Output current 0 - 15 A Output power 0 - 750 W Weight 152 g Display size 1,44“ Display module size 80 x 42 x 45 mm Power module size 40 x 67 x 91 mm Accuracy of...
- Page 3 Attention! Make sure that the input voltage is always at least 1.1 times the output voltage. In addition, always ensure sufficient ventilation of the device for heat dissipation. The permissible range of the input voltage is 6 - 60 V (DC). Always ensure a sufficient safety distance and never exceed the maximum permissible input voltage.
- Page 4 Main menu Settings Output voltage (default) Output voltage (current value) Output current (current value) Output power (current value) Input voltage Limit of output current Lock / enlock keys Normal / abnormal status Constant voltage / current Number of data group Active / inactive output Preset output voltage Preset limit of output current...
- Page 5 5. USE OF DEVICE Output voltage and current limit Press V/↑ to enter the voltage setting mode. Press the Rotary encoder to move the cursor to the numeric value you want to change. Turning the knob clockwise increases the value and counterclockwise decreases the value.
- Page 6 Configuration of the data groups Data group M0 The M0 data group is a special case. It is the standard data group. Each time an alternative data group is selected or changes are made to the existing settings, M0 is immediately overwritten with the newly selected data.
- Page 7 Editing the chosen data group To edit the chosen data group press V/↑ or A/↓ to navigate upwards or downwards through the menu options. Press the rotary switch and the selected numerical value will be highlighted with the cursor. More actuations of the rotary switch will lead to scrolling through the possible characters.
- Page 8 We send you a parcel stamp with which you can send us your old appli- ance free of charge. For this possibility, you must contact us via e-mail at service@joy-it.net or via telephone. Information about packaging: Please package your old appliance safe during transport. Should you not have a suitable packaging material or you do not want to use your own material, you can contact us and we will send you an appropriate package.
