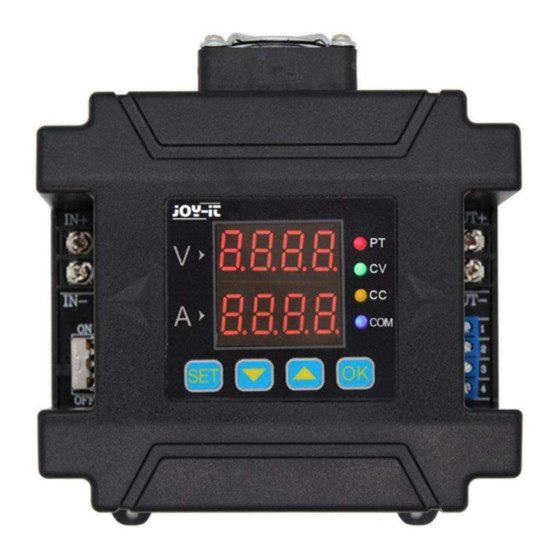

JT-DPM8605
Programmable lab power supply
The JT-DPM8624 is a programmable
Buck power supply. It has both a con-
stant voltage and a constant current
mode. With its TTL interface, it is pos-
sible to manage any setting comforta-
bly via your PC with a free software.
As optional equipment for this power
supply, a wireless control panel is
available, which enables remote con-
trol of up to 10 meter (without obsta-
cle) to any setting and data.
Published: 05.06.2020
MAIN FEATURES
Interface
Voltage supply
Voltage output
Current output
Power output
Voltage resolution
Current resolution
Output ripple
Response time
Size
Items delivered
FURTHER SPECIFICATIONS
Voltage display accuracy
Current display accuracy
Voltage fault tolerance
Current fault tolerance
Operating temperature
TTL
10 - 75 V DC
0 - 60 V DC
0 – 5 A
0 - 300 W
10 mV
1 mA
< 50 mVpp
< 50 ms
131 x 112 x 55 mm
JT-DPM8605
10 mV
1 mA
0,2 % + 1 digit
0,5 % + 1 digit
-10°C - 45°C
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Joy-it JT-DPM8605
Summary of Contents for Joy-it JT-DPM8605
- Page 1 JT-DPM8605 Programmable lab power supply MAIN FEATURES Interface Voltage supply 10 - 75 V DC Voltage output 0 - 60 V DC Current output 0 – 5 A Power output 0 - 300 W Voltage resolution 10 mV Current resolution...
-
Page 2: Safety Instructions
JT-DPM8600 Programmable lab power supplies 1. SAFETY INSTRUCTIONS Our product is suitable for up to 75 Volt DC. Working with voltage over 60 V DC is re-served for trained electricians, because of the hazard of an electric shock which may cause serious injuries or death. -
Page 3: Technical Parameters
The DPM8600 series are programmable power supplies which have a large output power, are compact and are well structured. At the same time, it is equipped with TTL serial communication interface or RS485 communication interface, which provides a serial communication protocol. It can also be applied to modbus-RTU communication protocol and supports further development from users. - Page 4 4. MODULE Working status indicator LED digital tube Positive output Negative output Positive input Communication interface Negative input Function Power Switch buttons 5. DISPLAY shows voltage values Activates quick response 05 . 00 4-Fd shows current values __1_ 03 . 00 Sets upper limit of voltage and current Simple communication 5-CS...
- Page 5 6. INDICATOR Overheat protection indicator If the temperature is greater than 80 °C, the light is activated to indicate the overheat protection. Constant voltage indicator The CV indicator light indicates constant voltage output. Constant current indicator The CC indicator light indicates constant current output.
- Page 6 Press “SET“ that this value lights up. If you press this button again the selected digit will move one further. The value can be changed with the buttons Press “OK“ to turn on and off the output. If the load current is below the set current, the output is a cons- tant voltage.
- Page 7 If you press , you can adjust the loaded memory. The different locations can be selected with . With you confirm your settings. Press to exit the temperature display. Press to return to the menu. To calibrate the device press .
- Page 8 Temperature display The temperature display shows the temperature of the device which is con- trolled by the fan speed and overheat protection. If the temperature is higher than 40°C then the fan starts working. With each 5 °C the fan speed increases by one level.
- Page 9 This menu point declares the response time of the interface when it is decharging. In that case “0“ means slow and “1“ fast. This menu point declares the communication protrocol. Here the “0“ is for the simple communication protocol and “1“...
- Page 10 8. SOFTWARE We provide a software, which can be downloaded from our webiste: www.joy-it.de After the installation, connect the lab power supply to your PC with a TTL or rather a RS485 adapter.
- Page 11 RS485 not connected not connected RX (white) TX (green) GND (black) not connected After the cable is connected with the power supply like in the picture and the chart, the device can be connected with the PC via USB. In the de- vice-manager in point “connections (COM &...
- Page 12 If the “Connect“ - button glows green, the device is connected with your PC. The further operation is as follows: communication address baud- port Connect status rate type of selection - button display device end program dislay of temperature refresh-button for temperature data group ...
