LARGE CASE FOR RD6006
JT-RD6006-Case02

1. GENERAL INFORMATION

Dear customer,
Thank you for purchasing our product. In the following, we will show you
which things should be noted during the use.
Should you encounter any unexpected problems, do not hesitate to
contact us.

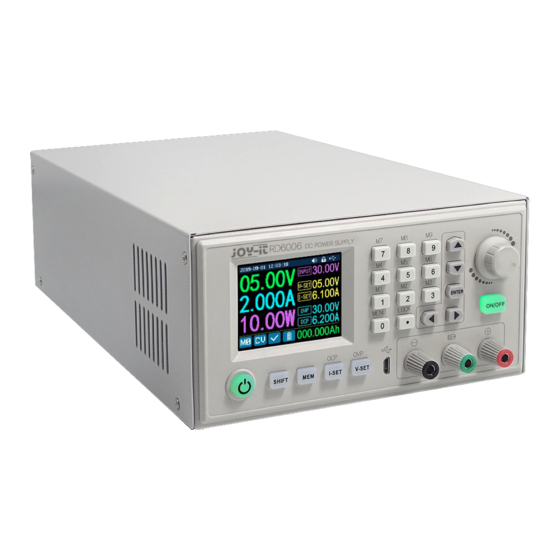

This case is made for an additional power supply which allows
you to connect this lab power supply directly to alternating
current.
Therefore, this safety instruction is necessary:
!
For your own safety, this product may only be
installed by a qualified electrician! Working on
electric devices / systems implies the hazard of
electric shocks which may cause serious injuries or
even death!
www.joy-it.net
Pascalstr. 8 47506 Neukirchen-Vluyn

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JT-RD6006-Case02 and is the answer not in the manual?

Questions and answers

Summary of Contents for Joy-it JT-RD6006-Case02

  • Page 1 LARGE CASE FOR RD6006 JT-RD6006-Case02 1. GENERAL INFORMATION Dear customer, Thank you for purchasing our product. In the following, we will show you which things should be noted during the use. Should you encounter any unexpected problems, do not hesitate to contact us.
  • Page 2 Screw the feet onto the case with the black screws. Now insert the connections like the switch, the power connector and the fan into the case and if necessary srew them tight with the silver screws and nuts. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
  • Page 3 N of the power supply and the middle connector of the power connection. The yellow green cable is connected with the upper connector as a fuse with the power supply (marked as the symbol for grounding). www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
  • Page 4 V- and the red cable with one of the V+ terminals. Now you have to connect the last loose cable with the RD6006. Therefore, the black cable will be connected in IN- and red with IN+. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
  • Page 5 RD6006-NT. You can see your adjustment at the input voltage of your RD6006. Ideally, the RD6006 has a input voltage of 65 V to be able to issue the complete 60 V. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
  • Page 6 We will send you a parcel stamp with which you can send us your old appliance free of charge. For this possibility, please contact us via e-mail at service@joy-it.net or via telephone. Information about Package: Please package your old appliance safe for transport. Should you not...
