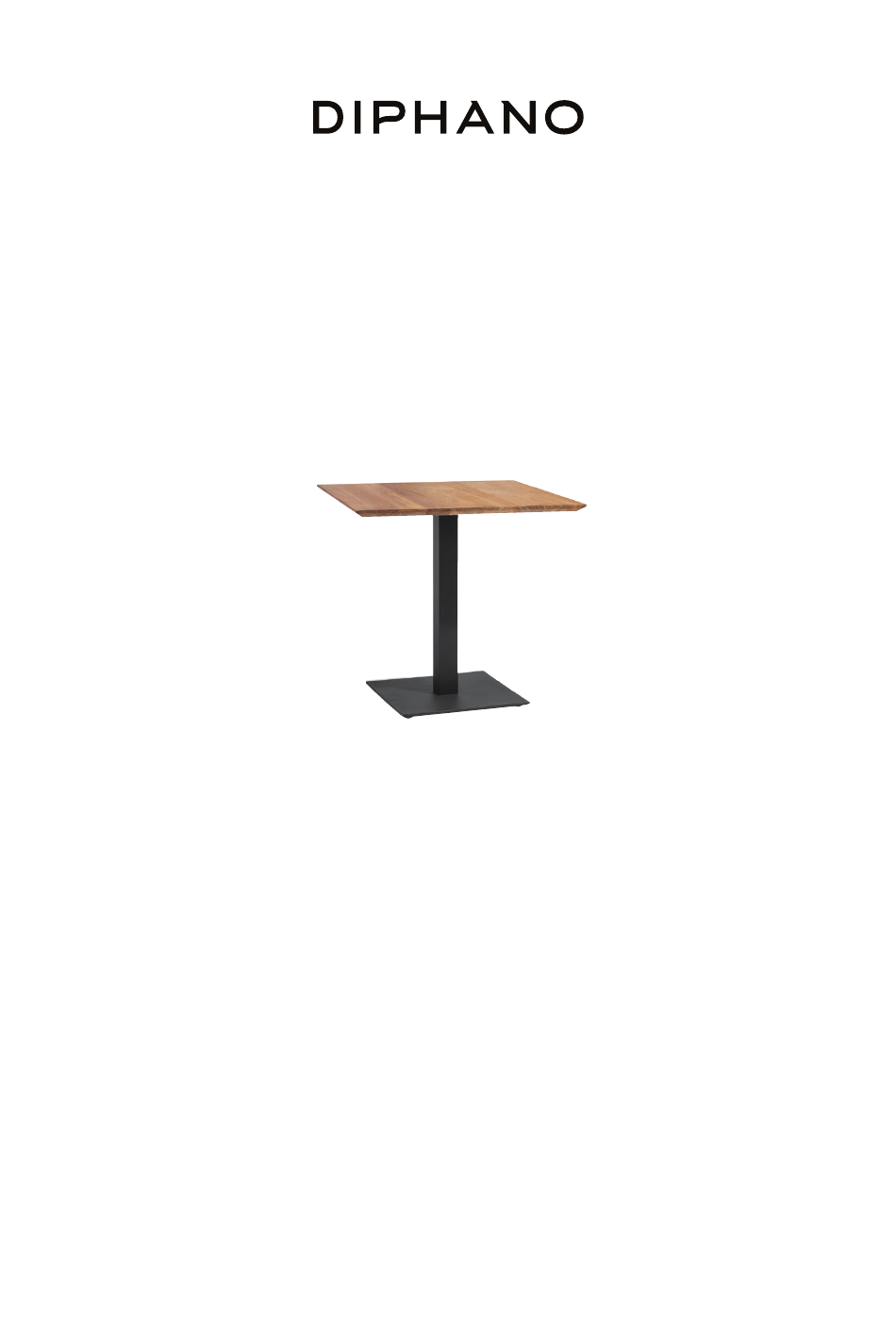

- Page 1 Alexa bistro table INSTRUCTION MANUAL...
- Page 2 This instruction manual applies to the following models: bistro table teak counter bistro table teak high bistro table teak bistro table Trespa® counter bistro table Trespa® high bistro table Trespa®...
- Page 3 4x bolt (M6x20mm) 4x washer (M6) 1x hex key (4) 3x bolt (M8x30mm) 3x washer (M8) 1x hex key (5) 1x base 1x pole 1x table top Diphano cannot be held responsible if the assembly instructions are not followed properly.
- Page 4 CONNECT THE TABLE TOP Connect the pole (H) to the table top (I) by fixating the bolt (A) with the washer (B) in the correct order. Repeat this 3 times so you have a bolt at every corner of the pole.
- Page 5 CONNECT THE BASE Connect the base (G) to the other side of the pole (H) by fixating the bolt (D) with the washer (E) in the correct order. Repeat this action 2 times.
- Page 6 ADJUST THE FEET Turn the table carefully to its normal position with at least 2 persons. Check with a spirit level if the table is placed level. If not, (un)screw the adjustable feet till your table is completely level.
- Page 7 4x washer (M5) 4x nut (M5) 4x cap nut (M5) 3x bolt (M8x30mm) 3x washer (M8) 1x hex key (5) 1x base 1x pole 1x table top Diphano cannot be held responsible if the assembly instructions are not followed properly.
- Page 8 CONNECT THE TABLE TOP Connect the pole (H) to the table top (I) by fixating the cap nut (C) with the nut (B) and the washer (A) in the correct order. Repeat this 3 times so you have a bolt at every corner of the pole.
- Page 9 CONNECT THE BASE Connect the base (G) to the other side of the pole (H) by fixating the bolt (D) with the washer (E) in the correct order. Repeat this action 2 times.
- Page 10 ADJUST THE FEET Turn the table carefully to its normal position with at least 2 persons. Check with a spirit level if the table is placed level. If not, (un)screw the adjustable feet till your table is completely level.
- Page 11 maintenance & care POWDERCOATED ALUMINIUM Simply brush away loose dirt, rinse, and clean with a mild, lukewarm soapy solution. Rinse thoroughly and pat dry with a cloth. NATURAL TEAK Simply brush away loose dirt, rinse, and clean with a mild, lukewarm soapy solution.
- Page 12 Textielstraat 4 - 8790 Waregem - Belgium Tel. +32 (0)56 980 008 - info@diphano.com...
