Diphano Alexa Instruction Manual

Extendable table
Hide thumbs Also See for Alexa:

Advertisement

Quick Links

Download this manual
Alexa
extendable table
INSTRUCTION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the Alexa and is the answer not in the manual?

Questions and answers

Related Manuals for Diphano Alexa

Summary of Contents for Diphano Alexa

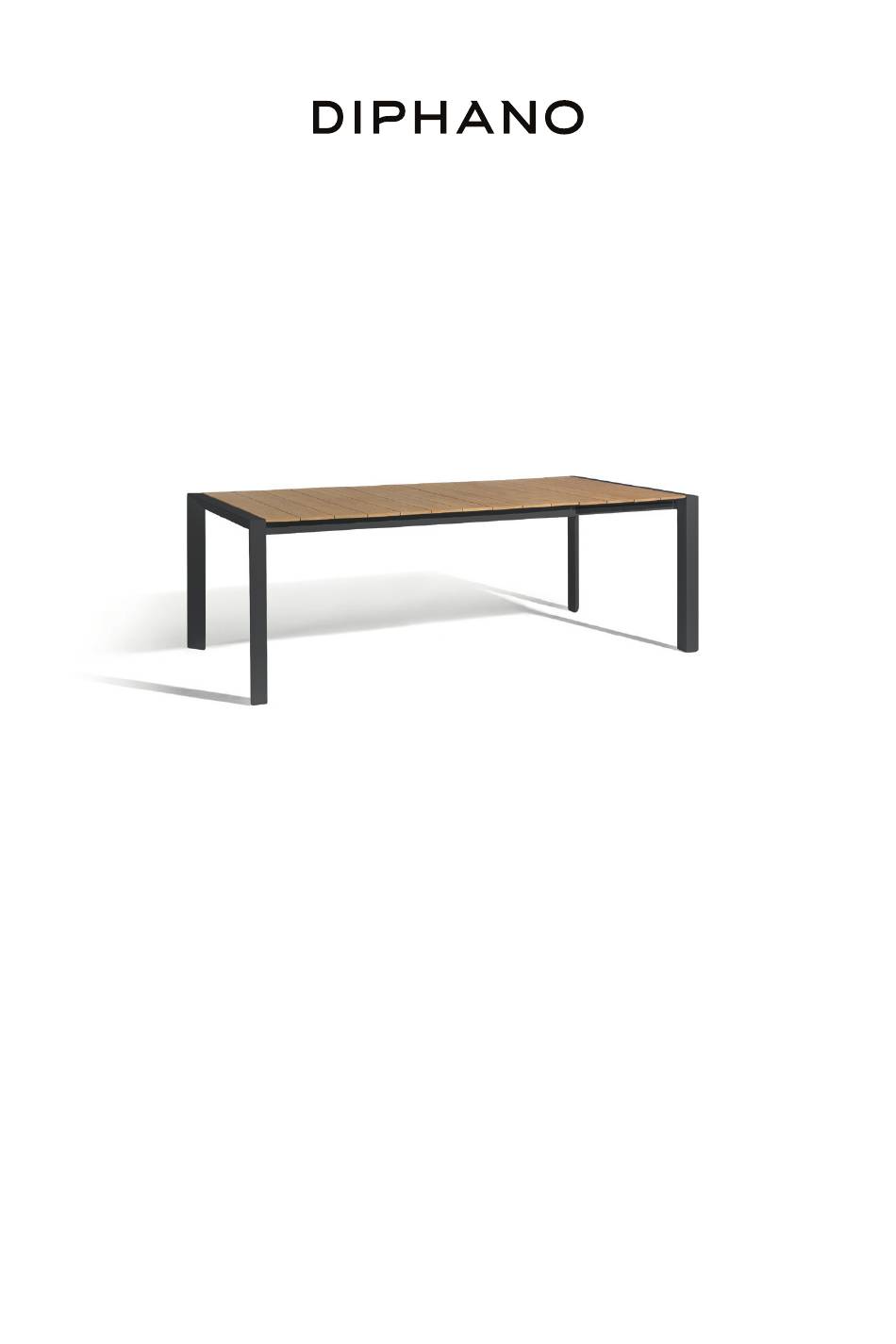

  • Page 1 Alexa extendable table INSTRUCTION MANUAL...
  • Page 2 This instruction manual applies to the following models: extendable table 160-220x96 extendable table 220-280x96 Diphano cannot be held responsible if the assembly instructions are not followed properly.
  • Page 3 how to assemble the table CONTENT Start by unpacking everything carefully. Make sure to cover the floor to prevent any damage or scratching (you can use the cardboard box for this). 8x bolt (M6x16mm) 4x bolt (M6x40mm) 4x washer (M6) 4x spring washer (M6) 1x hex key (4mm)
  • Page 4 CONNECT ALUMINIUM LEGS Use the hex keys (E) to assemble the aluminium legs onto the table top as shown in the picture. Make sure you follow the correct order as indicated by the letters in the picture. Repeat this action for all the legs.
  • Page 5 TURN THE TABLE Turn the table carefully to its normal position with at least 4 persons.
  • Page 6 ADJUST THE FEET Check with a spirit level if the table is placed level. If not, (un)screw the adjustable feet till your table is completely level.
  • Page 7 how to extend your table watch the video OPEN FRAME Lift the table frame a little bit. Slide evenly back until it is completely open.
  • Page 8 TAKE OUT EXTENSION Take out the extension table top.
  • Page 9 PLACE EXTENSION Place the extension on top of the table frame.
  • Page 10 CLOSE AND ADJUST FEET Close table leg so the extension fits perfectly with the table frame. Check again with a spirit level if the table is level. If not, (un)screw the adjustable feet till your table is completely level.
  • Page 11 maintenance & care POWDERCOATED ALUMINIUM Simply brush away loose dirt, rinse, and clean with a mild, lukewarm soapy solution. Rinse thoroughly and pat dry with a cloth. NATURAL TEAK Simply brush away loose dirt, rinse, and clean with a mild, lukewarm soapy solution.
  • Page 12 Textielstraat 4 - 8790 Waregem - Belgium Tel. +32 (0)56 980 008 - info@diphano.com...
