Diphano Selecta Instruction Manual

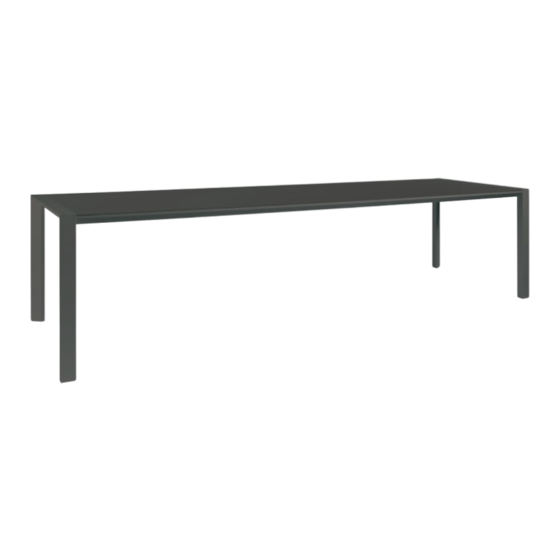

Dining table 313x90
Hide thumbs
Also See for Selecta:
- Instruction manual (12 pages) ,
- Assembly instructions (2 pages) ,
- Instructions (2 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Diphano Selecta
Summary of Contents for Diphano Selecta

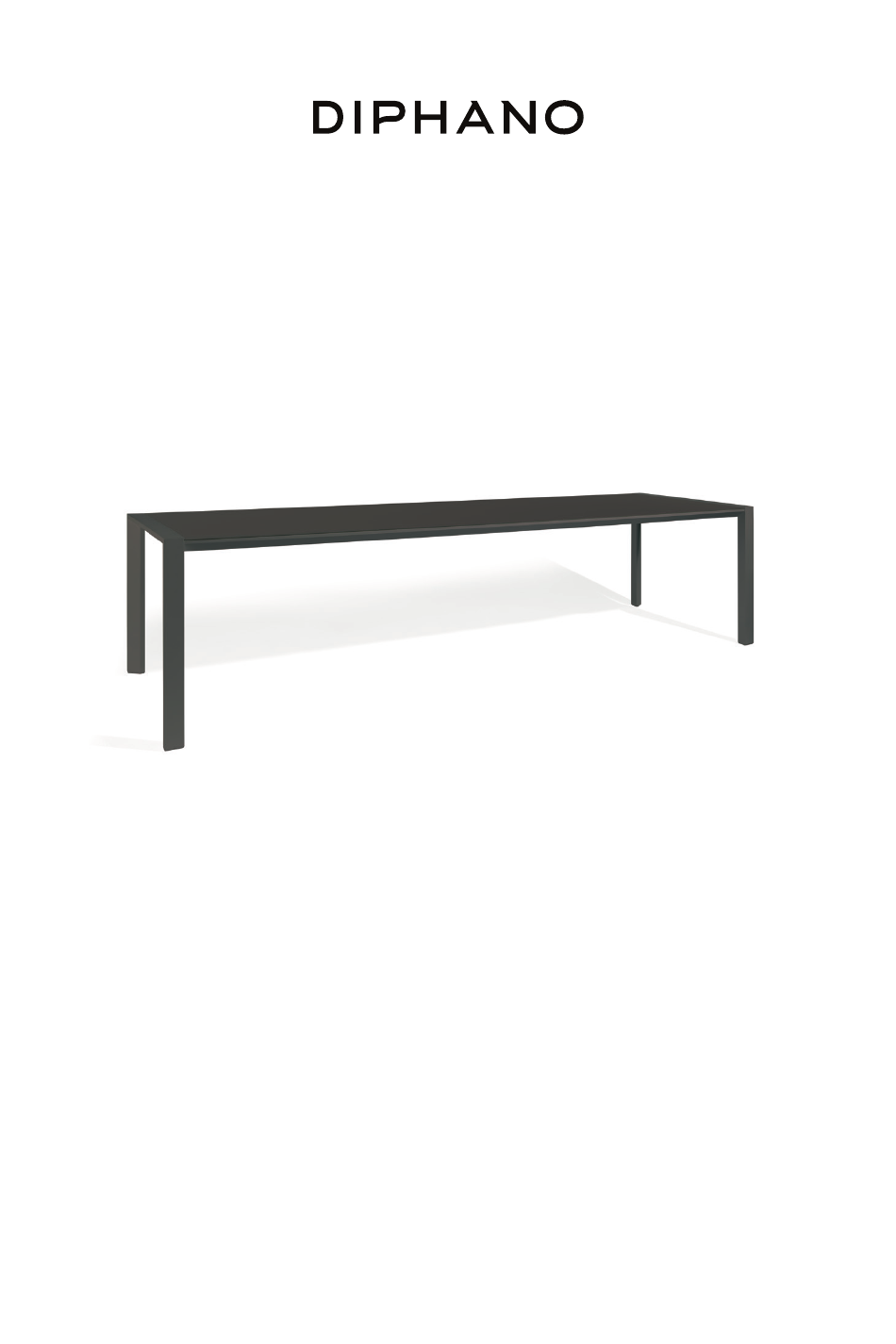

- Page 1 Selecta dining table 313x90 INSTRUCTION MANUAL...
- Page 2 1x hex key (6) 4x bolt (M6x15mm) 4x washer (M6) 4x spring washer (M6) 1x hex key (5) 22x bumper 22x washer (1mm) 22x washer (2mm) 2x sex bolt (M6x30) Diphano cannot be held responsible if the assembly instructions are not followed properly.
- Page 3 2x mating bolt (M6x15) 1x alu table top support 2x alu outer leg 1x table top 1x alu central leg...
- Page 4 ASSEMBLE OUTER LEGS Slide the outer legs (O) equally onto the table top support (N). Use the hexkeys (D,H) to fixate the outer legs as shown in the picture. Make sure you follow the correct order as indicated by the letters in the picture. H E G...
- Page 5 ASSEMBLE CENTRAL LEG Place the central leg so the pre-made holes match. Use the hexkeys (D,H) to fixate the central leg as shown in the picture. Make sure you follow the correct order as indicated by the letters in the picture.
- Page 6 TURN TABLE Turn the table carefully to its normal position with at least 4 persons.
- Page 7 PLACE BUMPERS Place the bumpers (I) with the washers (J,K) on the correct positions as shown on the topview. Check during setup which washer is neccessary for adjusting the ceramic top on the frame, the 1mm or the 2mm. J or K...
- Page 8 PLACE TABLE TOP Carefully place the table top (P) in the lower part of the support with at least 4 persons.
- Page 9 ADJUST FEET Check with a spirit level if the table is placed level. If not, (un)screw the adjustable feet till your table is completely level.
- Page 10 maintenance & care POWDERCOATED ALUMINIUM Simply brush away loose dirt, rinse, and clean with a mild, lukewarm soapy solution. Rinse thoroughly and pat dry with a cloth. CERAMIC Simply brush away loose dirt, rinse, and clean with a mild, lukewarm soapy solution or Ceramic cleaner.
- Page 12 Textielstraat 4 - 8790 Waregem - Belgium Tel. +32 (0)56 980 008 - info@diphano.com...
