Diphano Ray Assembly Instructions Manual

Coffee tables

Hide thumbs Also See for Ray:

Download this manual

Ray

coffee tables

INSTRUCTION MANUAL

Need help?

Do you have a question about the Ray and is the answer not in the manual?

Page 1 coffee tables INSTRUCTION MANUAL...

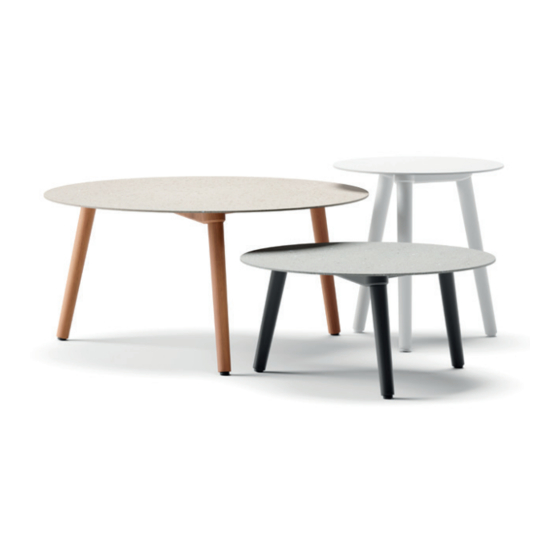

Page 2 This instruction manual applies to the following models: coffee table S 100xR (33,5h) coffee table S 80xR (35,5h) coffee table A 60xR (28,5h) coffee table B 42xR (43,5h)
Page 3 Start by unpacking everything carefully. Make sure to cover the floor to prevent any damage or scratching (you can use the cardboard box for this). 1x frame 1x table top 3x bolt 3x leg 1x hex key Diphano cannot be held responsible if the assembly instructions are not followed properly.
Page 4 PLACE FRAME Place the frame (A) onto the back of the table top (B) so the holes in the frame match with the upserts on the table top.
Page 5 FIXATE FRAME Fixate by screwing the bolts (C) into the upserts with the hex key (E).
Page 6 CONNECT LEGS Connect the legs (D) to the frame (A) by screwing them into the provided holes.
Page 7: Maintenance And Care
maintenance & care POWDERCOATED ALUMINIUM Simply brush away loose dirt, rinse, and clean with a mild, lukewarm soapy solution. Rinse thoroughly and pat dry with a cloth. NATURAL TEAK Simply brush away loose dirt, rinse, and clean with a mild, lukewarm soapy solution.
Page 8 Textielstraat 4 - 8790 Waregem - Belgium Tel. +32 (0)56 980 008 - info@diphano.com...
