Diphano SELECTA Instructions

INSTRUCTION PAPER

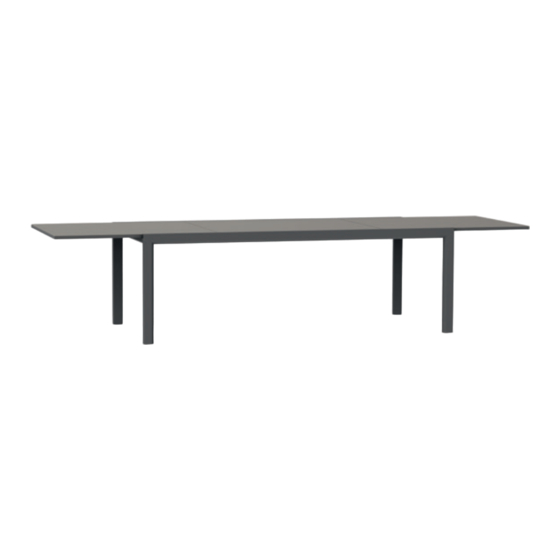

SELECTA | Extendable table 225-345x108
Start by unpacking everything carefully. Make sure to cover the floor to prevent any damage or scratching (you can use the cardboard box for this).
CONTENT
A
12x bolt (M6x15mm)
E
8x silicone cap
STEP 1: PLACE SILICONE CAPS
Place 4 silicone caps (E) onto the right side of the table top (F) as
shown in the picture. Repeat this for the left side.
STEP 3: FIXATE LEGS
Fixate the legs (G) with the table top (F) by following the 3 steps. Make sure you follow the correct order as indicated by the letters in the
picture. Repeat this for the other 3 corners.
B
16x bolt (M6x35mm)
F
1x alu table top
E
1
D
C
28x washer (M6)
G
2x alu legs
STEP 2: SLIDE LEGS ON TABLE TOP
Slide the legs (G) equally into the table top (F).
2
A C C B D
D
1x hex key (5)
3
D
A
C
1/2
