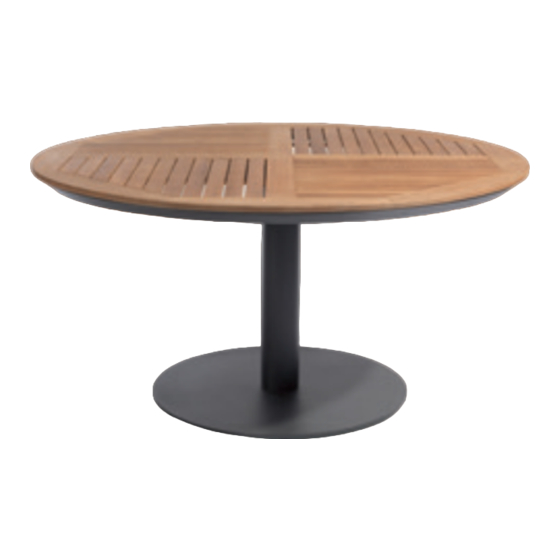

Round dining table 148r

Download this manual

INSTRUCTION PAPER

ALEXA 410-412 | Round dining table 148R

Start by unpacking everything carefully. Make sure to cover the floor to prevent any damage or scratching (you can use the cardboard box for this).

CONTENT

1x base

COMPONENTS TO FIXATE BASE:

1x hex key 5mm

COMPONENTS TO FIXATE TABLE TOP/ALU SUPPORT:

1x hex key 4mm

ASSEMBLY INSTRUCTIONS BASE + POLE

STEP 1: CONNECT THE POLE TO THE BASE

Use the hex key (C) to assemble the aluminium pole (B) onto the

base (A) as shown in the picture. Make sure you follow the correct

order as indicated by the letters in the picture.

4x bolt M8x25mm

4x bolt M6x20mm

BOTTOM

BASE

1x pole

4x spring washer M8

4x spring washer M6

STEP 2: TURN THE BASE + POLE

BOTTOM

BASE

Turn the base with the pole carefully to its normal position with at

least 2 persons.

4x washer M8

4x washer M6

1/4

Need help?

Do you have a question about the ALEXA 410 and is the answer not in the manual?

Page 1 INSTRUCTION PAPER ALEXA 410-412 | Round dining table 148R Start by unpacking everything carefully. Make sure to cover the floor to prevent any damage or scratching (you can use the cardboard box for this). CONTENT 1x base 1x pole COMPONENTS TO FIXATE BASE:...
Page 2 INSTRUCTION PAPER ALEXA 410-412 | Round dining table 148R ASSEMBLY INSTRUCTIONS TEAK TABLE TOP EXTRA COMPONENTS FOR TEAK TABLE TOP: 1x teak table top STEP 1: SECURE TABLE TOP STEP 2: ADJUST FEET Carefully place the table top (K) onto the pole (B) so the pre-made Check with a spirit level if the table is placed level.
Page 3 INSTRUCTION PAPER ALEXA 410-412 | Round dining table 148R ASSEMBLY INSTRUCTIONS CERAMIC TABLE TOP EXTRA COMPONENTS FOR CERAMIC TABLE TOP: 1x alu support 1x ceramic top 13x bumper Ø13 M5 13x plastic washer M5 STEP 1: SECURE ALU SUPPORT STEP 2: PLACE BUMPERS (AND WASHERS)
