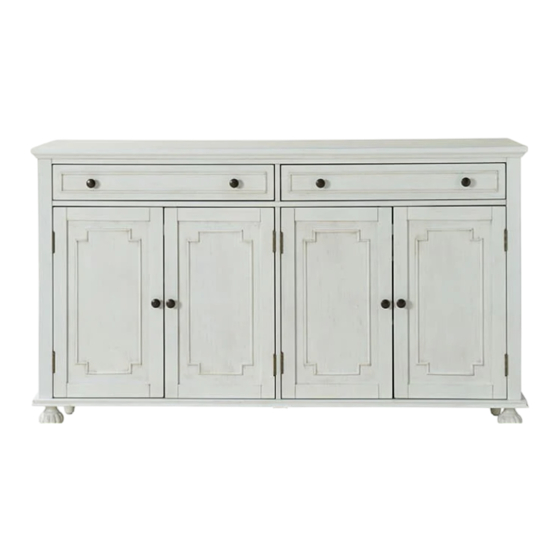

- Page 1 HULALA ITEM NO.SBHM0888 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 01/28...
- Page 2 MAINTAINANCE AND WARNING 1.Keep furniture away from heat sources. 2.Do not clean furniture with harsh cleaner or polishes.Do not use detergents,solvents,abrasives,spray packs or leather cleaner. Use non-color mild soa with warm water to clean spills(Mix 1:10 soap to water). 3.Do not place furniture under direct sunlight,material will possibly fade over time.
-
Page 3: Explosive View
EXPLOSIVE VIEW 2PERSONEN 03/28... -
Page 4: Parts List
PARTS LIST 04/28... - Page 5 PARTS LIST 05/28...
-
Page 6: Hardware List
HARDWARE LIST Ø8mm*1'' Ø3*14mm*7 Ø8mm*2'' Ø3mm*15 Ø8*30mm Ø3.5*35mm*7 Ø3*16 TOOL LIST 06/28... - Page 7 ASSEMBLY INSTRUCTIONS STEP-1 Ø3*14mm*7 07/28...
- Page 8 ASSEMBLY INSTRUCTIONS STEP-2 08/28...
- Page 9 ASSEMBLY INSTRUCTIONS STEP-3 09/28...
- Page 10 ASSEMBLY INSTRUCTIONS STEP-4 1.Insert side panel (C&D) into the corresponding hole of preassembled step 2 ， make sure all holes aligned and use allen key #17 to tighten it as picture show. 10/28...
- Page 11 ASSEMBLY INSTRUCTIONS STEP-5 1.Insert bottom panel (B) into the corresponding hole of preassembled step 4 ， make sure all holes aligned and use allen key #9 to tighten it as picture show. 11/28...
- Page 12 ASSEMBLY INSTRUCTIONS STEP-6 12/28...
- Page 13 ASSEMBLY INSTRUCTIONS STEP-7 1.insert back panel(F) into the groove of preassembled step 6,make sure all holes aligned and use screw#1 to attach them ， tighten screw #1 with screwdriver#18. 13/28...
- Page 14 ASSEMBLY INSTRUCTIONS STEP-8 14/28...
- Page 15 ASSEMBLY INSTRUCTIONS STEP-9 15/28...
- Page 16 ASSEMBLY INSTRUCTIONS STEP-10 Place the drawer to the rail.
- Page 17 ASSEMBLY INSTRUCTIONS STEP-11 1.Use screw #7 to attach wine glass holder (S&T&U) to the corresponding hole of panel(I), tighten screw with screwdriver #18. 17/28...
- Page 18 ASSEMBLY INSTRUCTIONS STEP-12 18/28...
- Page 19 ASSEMBLY INSTRUCTIONS STEP-13 1.Use screw #11 to attach hinge #10 to the corresponding hole of panel(J&K), tighten screw with screwdriver #18. 19/28...
- Page 20 ASSEMBLY INSTRUCTIONS STEP-14 ， make sure all holes aligned and use screw #11 to attach them , tighten screw#11 with screwdriver#18. 20/28...
- Page 21 ASSEMBLY INSTRUCTIONS STEP-15 ， make sure all holes aligned and use screw #11 to attach them , tighten screw#11 with screwdriver#18. 21/28...
- Page 22 ASSEMBLY INSTRUCTIONS STEP-16 ∅ 4*22mm 22/28...
- Page 23 ASSEMBLY INSTRUCTIONS STEP-17 ∅ 4*22mm 23/28...
- Page 24 ASSEMBLY INSTRUCTIONS STEP-18 Attention: Before the next step, adjust the feet of the locker to keep it level. 24/28...
- Page 25 ASSEMBLY INSTRUCTIONS #16 x4 STEP-19 Use screw #16 to attach part #9 to preassemble unit at step 15 , tighten screws with screwdriver #18 25/28...
- Page 26 ASSEMBLY INSTRUCTIONS #13 x4 STEP-28 Install the anti-collapse device. 2.Mark the position on the wall, that corresponds to the location of part#9 on the of panel (A); Drill and insert the expandable screw by hammer. Assemble the part #9 to the wall. Align the hole in the part #9 with the expandable screw #13 , use screw #14 to attach it and tighten by screwdriver#18.
- Page 27 ASSEMBLY INSTRUCTIONS #15 x2 STEP-21 1.Let the plastic belt #15 pass through the both part #9 and pull tightly. 27/28...
-
Page 28: Warranty
WARRANTY 1.We strive to offer high-quality products,and we also try our best to satisfy each and every customer that orders from us with product or service as needed. 2.We provide 30 days warranty starting from the time you receive the item.Each customer must provide a record of their order such as the order number,or item receipt for any items that are out of the warranty period you may also still receive.
