SICK GLS100 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. SICK Manuals
  4. Industrial Equipment
  5. GLS100
  6. Operating instructions manual
SICK GLS100 Operating Instructions Manual

SICK GLS100 Operating Instructions Manual

Image-based code reader for lane guidance and grid localization
Hide thumbs Also See for GLS100:

Advertisement

Quick Links

Download this manual

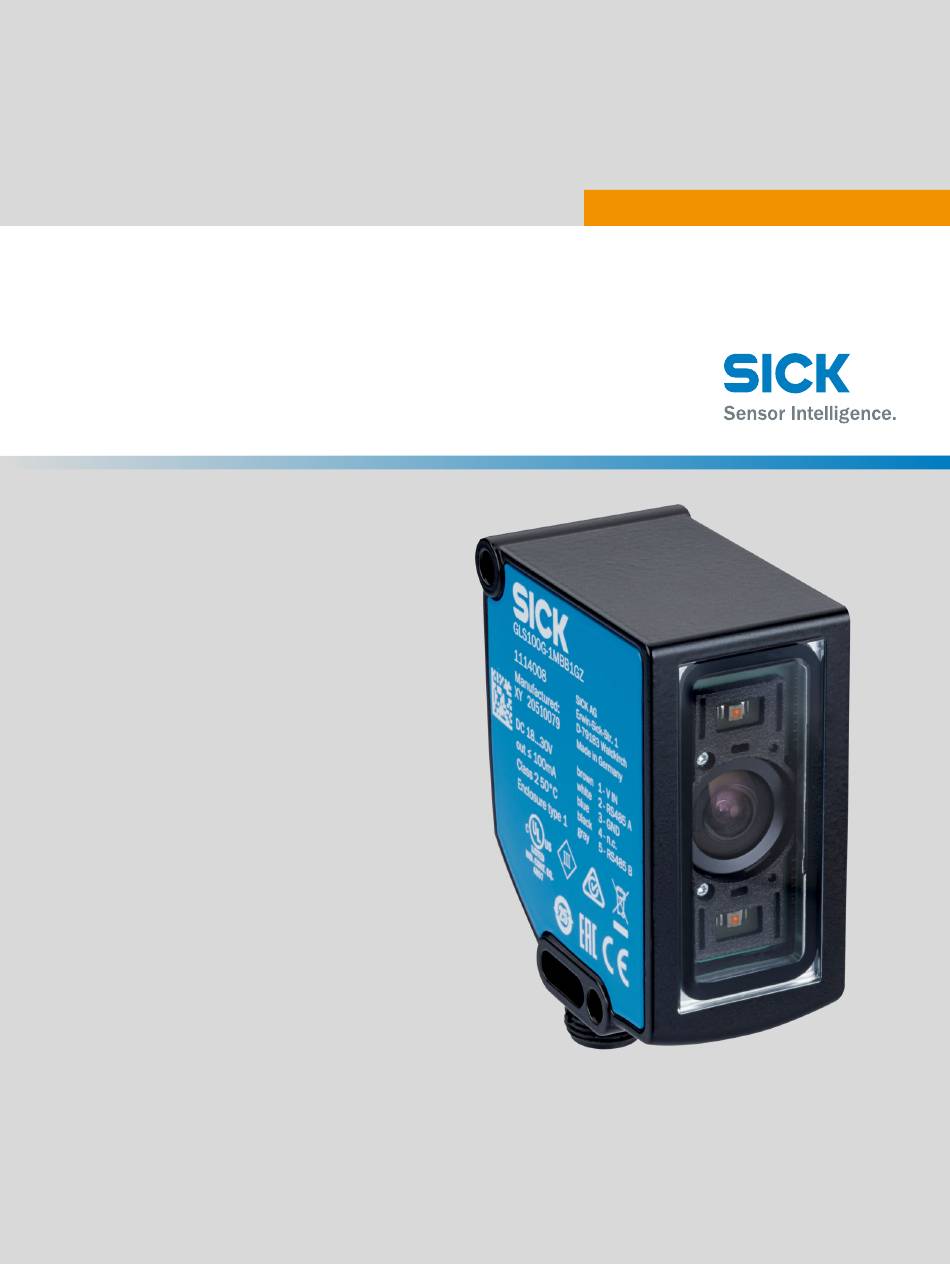

O P E R A T I N G I N S T R U C T I O N S
GLS100
Image-based code reader for lane guidance and
grid localization

Advertisement

loading
Need help?

Need help?

Do you have a question about the GLS100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SICK GLS100

Summary of Contents for SICK GLS100

  • Page 1 O P E R A T I N G I N S T R U C T I O N S GLS100 Image-based code reader for lane guidance and grid localization...
  • Page 2 This document is an original document of SICK AG. 2006/42/EC SAFETY O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK Subject to change without notice...
  • Page 3 Operation via Modbus RTU..............Transformation of output values.............. Maintenance..................52 Cleaning..................... 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 4 Annex....................58 14.1 Modbus RTU....................14.2 EU declaration of conformity..............O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK Subject to change without notice...
  • Page 5 … indicates a situation of imminent danger, which will lead to a fatality or serious injuries if not prevented. 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 6 … highlights useful tips and recommendations as well as information for efficient and trouble-free operation. O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK...
  • Page 7 All information in these operating instructions must be strictly complied with. ► 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 8 UL Environmental Rating: Enclosure type 1 Maximum ambient temperature 50°C O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK Subject to change without notice...
  • Page 9 Function indicators (LEDs) Figure 3: Function indicators (LEDs) Status indicators 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 10 Figure 4: Grid localization GLS100 O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK Subject to change without notice...
  • Page 11 The current read quality of the detected lanes can be read from the sensor's process data. 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 12 50 mm minimum length to enable clear identi‐ fication of the different color lanes. . O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK...
  • Page 13 Sensor alignment (angle orientation) in relation to the code label 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 14 Table 4: Sensor alignment for QR codes Coordinate origin is the center of the label O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK...
  • Page 15 3 Field of view 160 mm x 120 mm 4 Coordinates in the sensor coordination system (x/y) 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 16 Figure 9: DataMatrix single code O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK Subject to change without notice...
  • Page 17 Grayscale Scale (testing of print quality of the customer print) Code data: Number of the MultiCode label 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 18 Table 6: Code coordinate system Data Matrix MultiCode (coordinate origin is the center of the label). O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK...
  • Page 19 This convention is hereinafter called the sensor coordinate system, see table 7, page 20 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 20 X or Y output value corresponds to the linear position. O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK...
  • Page 21 GLS100. Regular inspection of the lanes and subsequent cleaning is recommended. Sensor alignment 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 22 The control system can inform the GLS100 of the appropriate directional decision (left, right, straight ahead). O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK...
  • Page 23 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 24 For storage periods of longer than 3 months, check the general condition of all ■ components and packaging on a regular basis. O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK Subject to change without notice...
  • Page 25 To achieve the maximum overrun speed, the sensor should be positioned at right angles to the direction of travel. 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 26 Table 9: Mounting Figure 16: Arrangement via code grid and traverse direction O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK Subject to change without notice...
  • Page 27 Group 2: Cables sensitive to interference, such as sensor cables, communi‐ ° cation signals, bus signals 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 28 Figure 18: Ideal laying – Place cables in different cable channels Figure 19: Alternative laying – Separate cables with metallic separators O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK...
  • Page 29 DIN VDE 0298 (part 4) and/or DIN VDE 0891 (part 1) 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 30 In any case, the bus connection must be terminated with appropriate terminators. O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK...
  • Page 31 ELECTRICAL INSTALLATION Figure 21: Point-to-point connection Figure 22: Bus structure 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 32 A passive 120 Ω bus terminating resistor is sufficient for this purpose. O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK...
  • Page 33 The LSS server is accessed via its LSS address (Identity Object), which is stored in object 1018h. 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 34 000h 80 00 Result: Server stops sending pdos. O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK Subject to change without notice...
  • Page 35 These are not configured at the factory and must be configured accordingly. 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 36 Modbus is based on RS-485 with a Modbus RTU protocol structure. Data exchange is always based on requests from the client and responses from the server devices. O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK...
  • Page 37 Examples and details of requests and responses can be found in the appendix: "Mod‐ bus RTU", page 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 38 8.1.2 General Device Settings Figure 24: General Device Settings O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK Subject to change without notice...
  • Page 39 R/W COB ID SYNC 0x000000 UINT32 0x1008 Manufacturer STRING GLSXXXX device name 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 40 UINT16 50 ms (default) 0x1802 Transmit PDO Communication Parameter 3 O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK Subject to change without notice...
  • Page 41 R/W Mapping Entry 0x000000 UINT32 R/W Mapping Entry 0x000000 UINT32 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 42 3: DataMatrix code tape 4: DataMatrix automode 5: Lane Guidance O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK Subject to change without notice...
  • Page 43 Result data analog to PDOs 1-3 for Code Recog‐ nition 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 44 Code Lane Posi‐ INT32 tion 1 Z Position INT16 O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK Subject to change without notice...
  • Page 45 Table 17: PDO7 Byte Value Code Lane Position 3 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 46 1 s, the respective PDO is only sent every second. Compatibility entry Not used O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK Subject to change without notice...
  • Page 47 Length of section 2 - Results Start address of section 2 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 48 16-bit signed XVelocity ModBus process data → 16-bit signed YVelocity O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK Subject to change without notice...
  • Page 49 Modbus RTU parity setting PxV compatibility settings 14435 Pin 4 configuration 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 50 In addition, the angle output format can be adjusted by configuration. O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK...
  • Page 51 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 52 Repairs on the sensor may only be carried out by the manufacturer. Any interruption or modification of the sensor will invalidate the manufacturer warranty. O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK...
  • Page 53 The sensor is electronic waste and must under no circumstances be disposed of with general waste. 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 54 2D code types Data Matrix ECC200, QR code O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK Subject to change without notice...
  • Page 55 – 25 °C ... + 75 °C ture Permissible rela‐ 90 %, non-condensing tive humidity 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 56 Accessories can be found on the online product page at: www.sick.com/GLS100 O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK Subject to change without notice...
  • Page 57 Printed copies of the license texts are also available on request. 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 58 If a variant with bus terminator is required, you can get in touch with your SICK contact person. O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK...
  • Page 59 (16 bit unsigned) unsigned) 0x04 Read “Input regis‐ ters” 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 60 The EU declaration of conformity can be downloaded from the Internet at: www.sick.com/GLS100 O P E R A T I N G I N S T R U C T I O N S | GLS100 9400640/2024-06-14 | SICK Subject to change without notice...
  • Page 61 ANNEX 9400640/2024-06-14 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS100 Subject to change without notice...
  • Page 62 Phone +65 6744 3732 Phone +30 210 6825100 Phone +65 6744 3732 E-Mail sales.gsg@sick.com E-Mail office@sick.com.gr E-Mail sales.gsg@sick.com Hong Kong Slovakia Phone +852 2153 6300 Phone +421 482 901 201 E-Mail ghk@sick.com.hk E-Mail mail@sick-sk.sk Detailed addresses and further locations at www.sick.com SICK AG  |  Waldkirch  |  Germany  |  www.sick.com...
