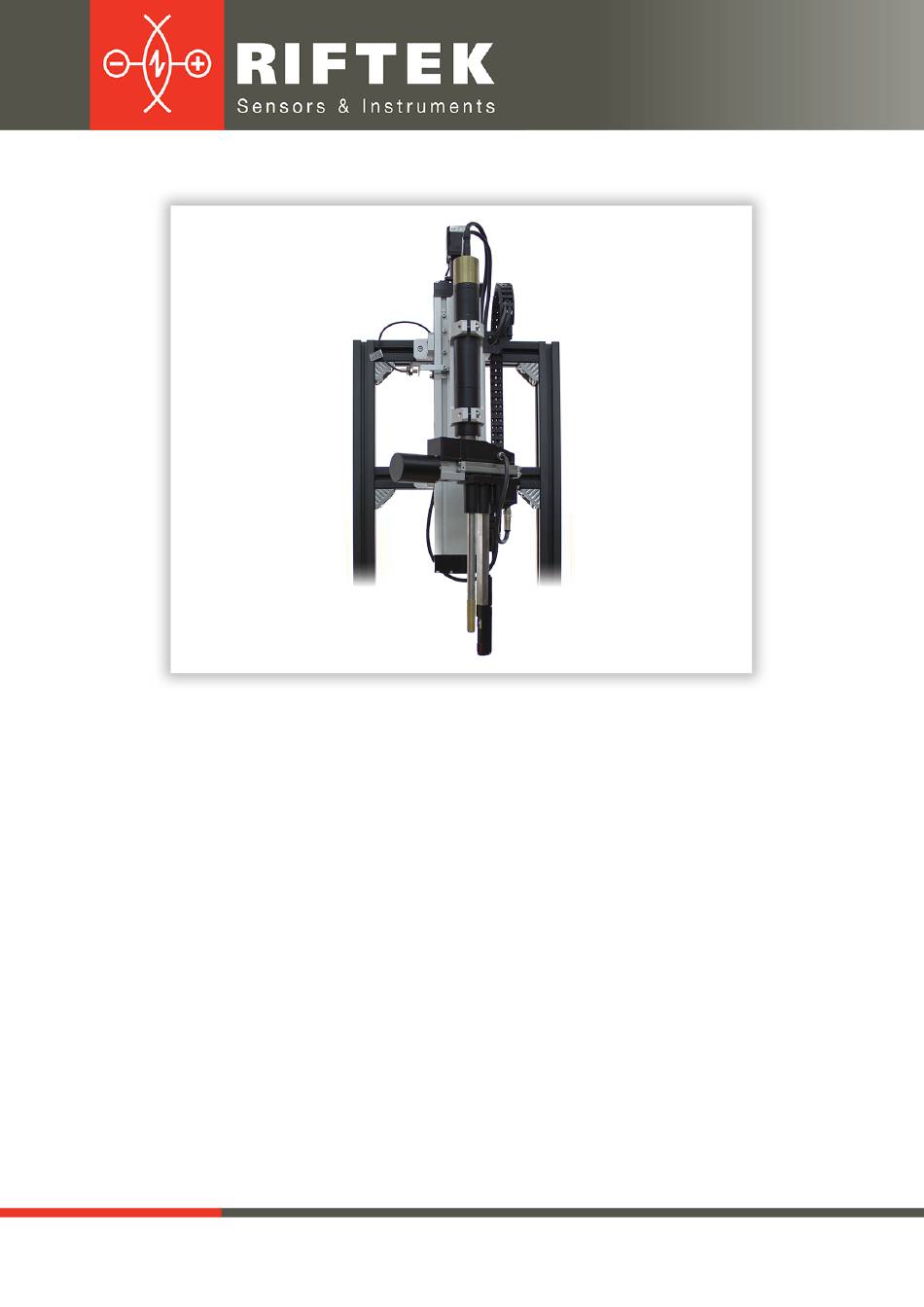

- Page 1 LAMINATED TUBES GEOMETRY MEASUREMENT SYSTEM RF092-13/50 Series User's manual www.riftek.com info@riftek.com Certified according to ISO 9001:2015...
- Page 2 Laminated Tubes Geometry Measurement System. RF092-13/50 Series Contents Safety precautions .............................3 CE сompliance .............................3 Laser safety .............................3 General information .............................3 Basic technical data .............................4 Example of item designation when ordering .............................4 Structure and operational principle .............................5 Connection .............................6 8.1............................6 Ethernet cable 8.2.
- Page 3 Laminated Tubes Geometry Measurement System. RF092-13/50 Series Safety precautions · Use supply voltage and interfaces indicated in the system specifications. · In connection/disconnection of cables, the system power must be switched off. · Do not use the system in locations close to powerful light sources. ·...
- Page 4 Laminated Tubes Geometry Measurement System. RF092-13/50 Series Basic technical data Parameter Value Diameter measurement range 13...50 mm Diameter measurement accuracy ±10 µm Foil thickness range 0,05…0,5 mm Foil and weld thickness measurement accuracy ±5 µm Tube length measurement accuracy ±0,1 mm Light source red semiconductor laser, 660 nm wavelength...

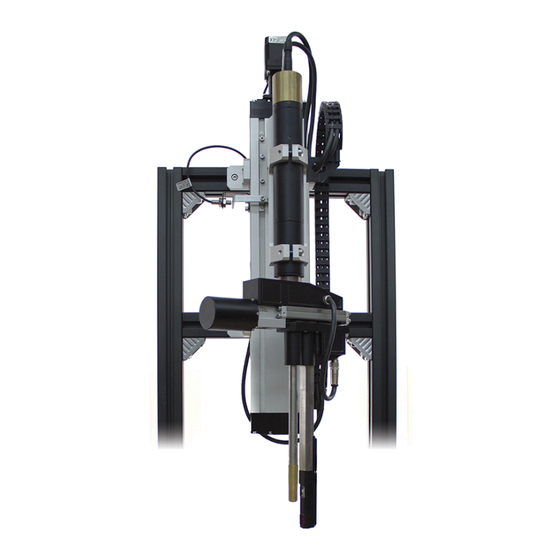

- Page 5 Laminated Tubes Geometry Measurement System. RF092-13/50 Series Structure and operational principle The system structure is shown in Figure 1: Figure 1. The system structure Linear translation stage 1 with stepper motor 2 carries rotation module 3 with in- built motor and encoder (not shown). Multi-position linear translation module 4 with motor 5 is placed on the rotation module.
- Page 6 Laminated Tubes Geometry Measurement System. RF092-13/50 Series Overall and mounting dimensions are shown in Figure 2. Figure 2. Overall and mounting dimensions Connection 8.1. Ethernet cable RF092-13/50 [Revision 1.0.0] 29.09.2017...
- Page 7 Laminated Tubes Geometry Measurement System. RF092-13/50 Series Designations: B4B-ZR BINDER 09 0426 10 08 LAPP CABLE ETHERLINE FD P BK CAT.5e Assignment: Pin number Assignment Wire color Note White-orange Transmit data Ethernet + Orange Transmit data Ethernet - White-green Receive data Ethernet + Green Receive data Ethernet - Power+...
- Page 8 Laminated Tubes Geometry Measurement System. RF092-13/50 Series Indended use 10.1. Preparation for use The preparation involves the following steps: Visual inspection. Installation and connection. · Switching the system. · Calibration. 10.1.1. Visual inspection · Check the system for completeness and absence of damage. ·...
- Page 9 Laminated Tubes Geometry Measurement System. RF092-13/50 Series 11.2. SDK library Class name: rf096112. Description of class members: Setup(remote_ip, remote_port, local_port, local_port) Set network parameters. Must be called before connecting to the device. Returns: void. Normal parameters: b"192.168.0.3", 6008, 6004 (customizable). Connect() Try to connect and read the device parameters stored in flash.
- Page 10 Laminated Tubes Geometry Measurement System. RF092-13/50 Series Distributors AUSTRALIA BELGIUM BOSNIA AND HERZEGOVINA Applied Measurement Althen Sensors & Controls Australia Pty Ltd ASCO RAIL sp. z o.o. RAILWAY INSTRUMENTS ONLY Verrijn Stuartlaan 40, 2288 EL, EXCLUSIVE REPRESENTATIVE Rijswijk, Leidschendam Thornton Plaza, Unit 5, FOR RAILWAY EQUIPMENT The Netherlands 27 Thornton Crescent, Mitcham...
- Page 11 Laminated Tubes Geometry Measurement System. RF092-13/50 Series CHINA CROATIA CZECH REPUBLIC Zhenshangyou Technologies ASCO RAIL sp. z o.o. ASCO RAIL sp. z o.o. EXCLUSIVE REPRESENTATIVE EXCLUSIVE REPRESENTATIVE Co., Ltd FOR RAILWAY EQUIPMENT FOR RAILWAY EQUIPMENT Rm 2205-2210, Zhongyou Hotel 1110 Nanshan Road, Nanshan ul.
- Page 12 Fax: + 48 32 233 21 34 biuro@ascorail.pl export@ascorail.pl www.ascorail.pl POLAND PORTUGAL SERBIA RIFTEK EUROPE sp. z o.o. Campal Inovacoes ASCO RAIL sp. z o.o. ul. Domaniewska 17/19, 02-672 Ferroviarias Lda. EXCLUSIVE REPRESENTATIVE Warsaw, Poland FOR RAILWAY EQUIPMENT Lagoas Park, Edifí cio 7, 1° Piso info@riftek.com...
- Page 13 Laminated Tubes Geometry Measurement System. RF092-13/50 Series SLOVAKIA SLOVENIA SOUTH KOREA ASCO RAIL sp. z o.o. ASCO RAIL sp. z o.o. BS Holdings EXCLUSIVE REPRESENTATIVE EXCLUSIVE REPRESENTATIVE B-201,Wonpogongwon 1ro, FOR RAILWAY EQUIPMENT FOR RAILWAY EQUIPMENT 59 Danwon-gu, Ansan-si, ul. Wielowiejska 53, 44-120 ul.
- Page 14 Laminated Tubes Geometry Measurement System. RF092-13/50 Series USA, CANADA, MEXICO International Electronic Machines Corporation RAILWAY INSTRUMENTS ONLY 850 River Street, Troy, New York, USA Tel: +1 518 268-1636 Fax: +1 518 268-1639 marketing@iem.net www.iem.net RF092-13/50 [Revision 1.0.0] 29.09.2017...
