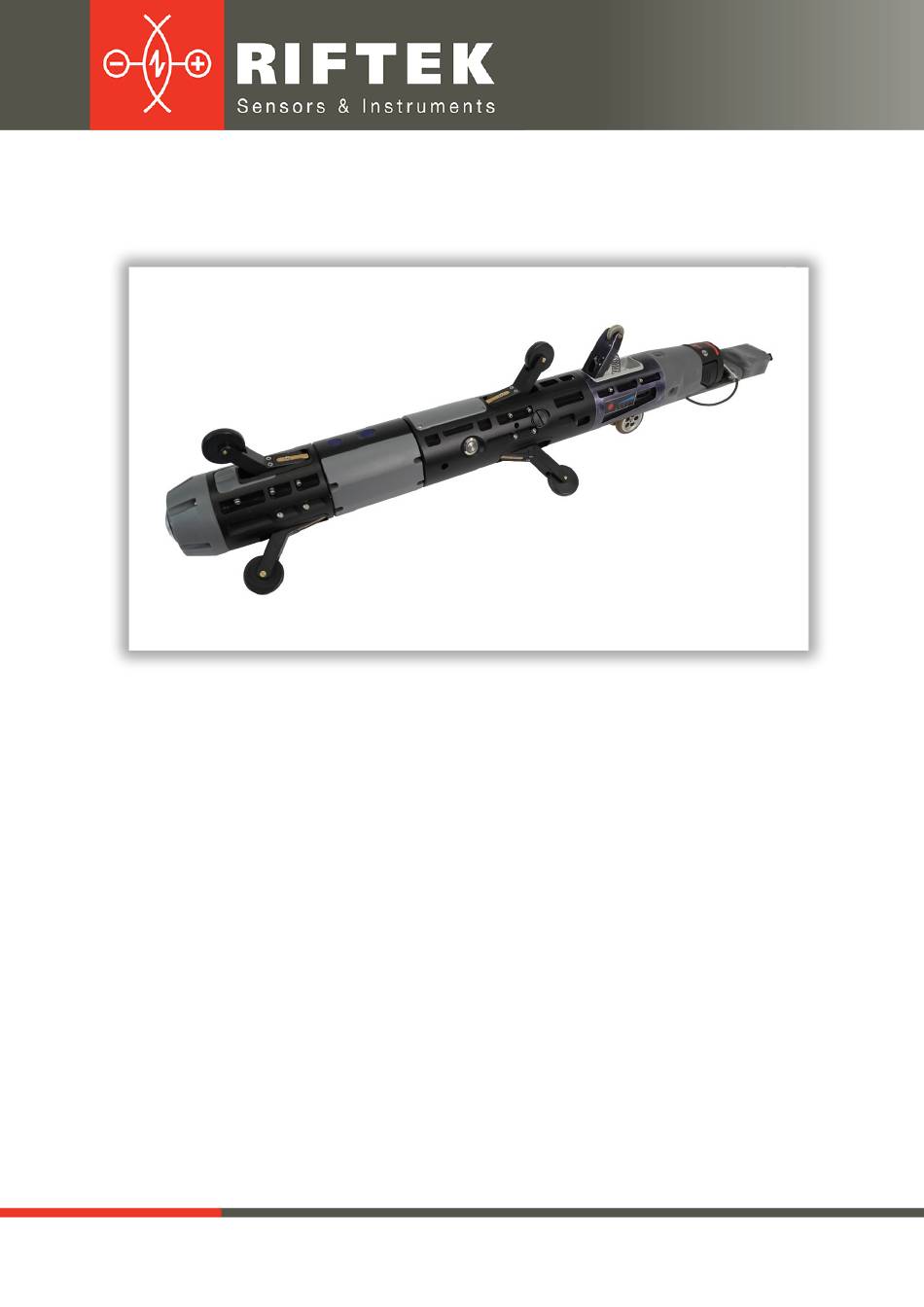

- Page 1 INNER DIAMETER MEASUREMENT SYSTEM RF096-69/122-SP Series User's manual www.riftek.com info@riftek.com Certified according to ISO 9001:2015...
-
Page 2: Table Of Contents
Inner Diameter Measurement System. RF096-69/122-SP Series Contents Safety precautions .............................3 CE сompliance .............................3 Laser safety .............................3 General information .............................3 Structure and operating principle .............................3 Basic technical data .............................4 Example of item designation when ordering .............................5 Complete set to be supplied .............................5... -
Page 3: Safety Precautions
Inner Diameter Measurement System. RF096-69/122-SP Series Safety precautions · Use supply voltage and interfaces indicated in the system specifications. · In connection/disconnection of cables, the system power must be switched off. · Do not use the system in locations close to powerful light sources. -
Page 4: Basic Technical Data
Inner Diameter Measurement System. RF096-69/122-SP Series Figure 1 The system operates as follows. The system is placed inside the pipe, the distance between the measured sections is specified in the control program. The system sequentially moves to the required control positions. Rotating laser sensors measure the distance to the surface of the pipe. -
Page 5: Example Of Item Designation When Ordering
Inner Diameter Measurement System. RF096-69/122-SP Series Example of item designation when ordering RF096-Dmin/Dmax-SP Symbol Description Dmin/Dmax Measurement range, mm. Example: RF096-69/122-SP – Inner Diameter Measurement System RF096; measurement range: 69...122 mm. Complete set to be supplied Designation Name Quantity RF150.40.000 Laser scanning module RF150.40.060... -
Page 6: Intended Use
Inner Diameter Measurement System. RF096-69/122-SP Series Figure 3 Designations (Fig. 3): Laser scanning module Calibration block 3.1. Pipe extensions (122 mm) 3.2. Pipe extensions (69 mm) Set of replacement centering wheels Charging device Two batteries SD Card USB - Wi-Fi adapter... -
Page 7: Charging The Battery
Inner Diameter Measurement System. RF096-69/122-SP Series 9.1.2. Charging the battery · Insert the battery into the charger. · The charging process and its completion are displayed on the charger indicators. 9.1.3. Installation and connection The numbering used below corresponds to Figure 1. - Page 8 Inner Diameter Measurement System. RF096-69/122-SP Series · Install the battery into the appropriated slot measurement head. · Check battery charge level by pressing red button (15). · Place pipe extensions at the both end of pipe, where 1 - measured pipe, 2 - pipe extension, 3 - measurement head: ·...
-
Page 9: Calibration
Inner Diameter Measurement System. RF096-69/122-SP Series 4) Connect power supply (10) to the same DM9 connector. · Connect safety cord with measurement head. · Turn on the power by pressing button (14) and holding it for 5 seconds. · Place measurement head into pipe extension. - Page 10 Inner Diameter Measurement System. RF096-69/122-SP Series Surface review mode Profile review mode 1. Language. This group allows the user to select the language of the graphical user interface. 2. Session. This group allows the user to save, load or clear measurements.
-
Page 11: Language Selection 10.6
Inner Diameter Measurement System. RF096-69/122-SP Series 7. Measure. This group allows the user to enter and run measurement scenarios. 8. Cross cut. This panel displays the geometric characteristics of the selected cross cut. 9. Along cut. This panel displays the geometric characteristics of the selected along cut. -
Page 12: Calibration
Inner Diameter Measurement System. RF096-69/122-SP Series To disconnect the system, the user must do the following: 1. Unlock and click the Disconnect button. 2. Press the power button to turn off the system. 3. Disconnect the interface cable from the PC. - Page 13 Inner Diameter Measurement System. RF096-69/122-SP Series 2. Check the box next to the sensor to be calibrated. 3. Uncheck the boxes next to the sensors that are not being calibrated. 4. Enter the diameter of the reference ring. 5. Click the Calibrate button.
-
Page 14: Measurement
Inner Diameter Measurement System. RF096-69/122-SP Series 4. If the system is not calibrated, then calibrate it. 5. Enter or load the scenario. 6. Enter the comment. 7. Unlock and press the Start button and wait until the scenario is running. - Page 15 Inner Diameter Measurement System. RF096-69/122-SP Series The program provides the following options when viewing data: 1. To select a specific measurement, right-click on the corresponding line in the Measurements panel. 2. To view a 3D model fragment limited by two sections, use the mouse to move the left and right 3D model display boundaries in the longitudinal section window to the desired positions.
-
Page 16: Saving And Reading The Session. Exporting Data
Inner Diameter Measurement System. RF096-69/122-SP Series 10.11. Saving and reading the session. Exporting data The session contains the results of all measurements. To save the session, click the Save button and select the file to which the current session will be saved. The software saves the session data in the internal binary rfs format. -
Page 17: How To Switch Video Codec To H.264
Inner Diameter Measurement System. RF096-69/122-SP Series 4. Optionally download PotPlayer from https://potplayer.org/en/potplayer-installer.html 10.12.1. How to switch video codec to H.264 If you have issues with playback H.265 video format, you can switch video codec to H.264. Follow next steps: 1. Power on the device. -
Page 18: How To Download Video Files From Sd Card Using Wi-Fi
Inner Diameter Measurement System. RF096-69/122-SP Series 10.12.2. How to download video files from SD card using Wi-Fi 1. Perform steps 1-5 from the previous chapter. 2. Navigate to Settings tab { System -> Device Information } 3. At the bottom of a page click the link { Browser SD Card }... - Page 19 Inner Diameter Measurement System. RF096-69/122-SP Series CHILE CHINA CHINA Verne SpA Beijing Haiwei Lutong Chongqing Wolf Industrial Apoquindo 2818, oficina 31 Technology Co., Ltd Technology Co., Ltd Las Condes, Santiago, Chile Yard 1, Tianxing Street, Fangshan Room 2307 / 2308, Light of City...
- Page 20 Inner Diameter Measurement System. RF096-69/122-SP Series GERMANY GERMANY HUNGARY Finger GmbH & Co. KG ASCO RAIL sp. z o.o. ALTHEN GmbH Meß- und OPTICAL MICROMETERS ONLY EXCLUSIVE REPRESENTATIVE Sensortechnik Sapelloh 172, 31606 FOR RAILWAY EQUIPMENT Dieselstrasse 2, 65779 Warmsen, Germany ul.
- Page 21 Inner Diameter Measurement System. RF096-69/122-SP Series NORWAY PERU POLAND Salitec AS Verne Perú S.A.C. ASCO RAIL sp. z o.o. PB 468, N-1327 Las Codornices 104, EXCLUSIVE REPRESENTATIVE Lysaker, Norway Surquillo, Lima, Peru FOR RAILWAY EQUIPMENT Tel: +47 23 891015 Tel/fax: +51 992436734 ul.
- Page 22 Inner Diameter Measurement System. RF096-69/122-SP Series TURKEY TURKEY UKRAINE MAK Elektronik Malzeme TEKMA Mühendislik A.S. KODA Cevizli Mh. M. Kemal Cd., Frunze st. 22, 61002, Analiz ve Kalite Kontrol Hukukçular Towers, Harkov, Ukraine Cihazlari Dis Tic. Ltd. Sti. A-Blok, No: 66-A/39...
