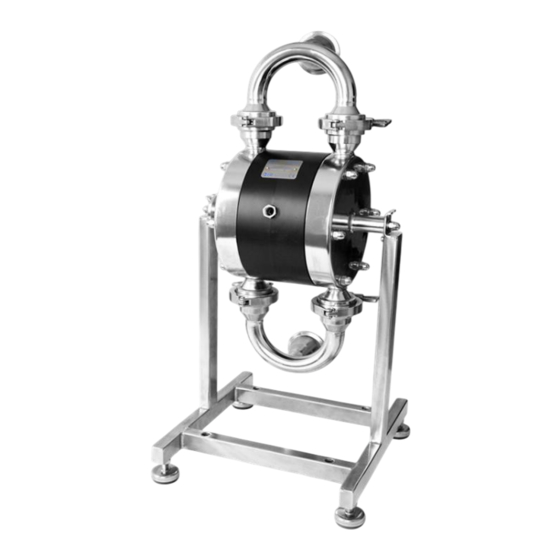

TapFlo TX94 Iom Manual

TapFlo TX94 Iom Manual

Aseptic diaphragm pumps

Advertisement

Quick Links

Read this instruction manual carefully,
before you install and operate the pump
Pump models:
TX94
TX144
TX244
TX444
IOM manual
Diaphragm Pumps
Aseptic
Original instruction
2025 | 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TX94 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TapFlo TX94

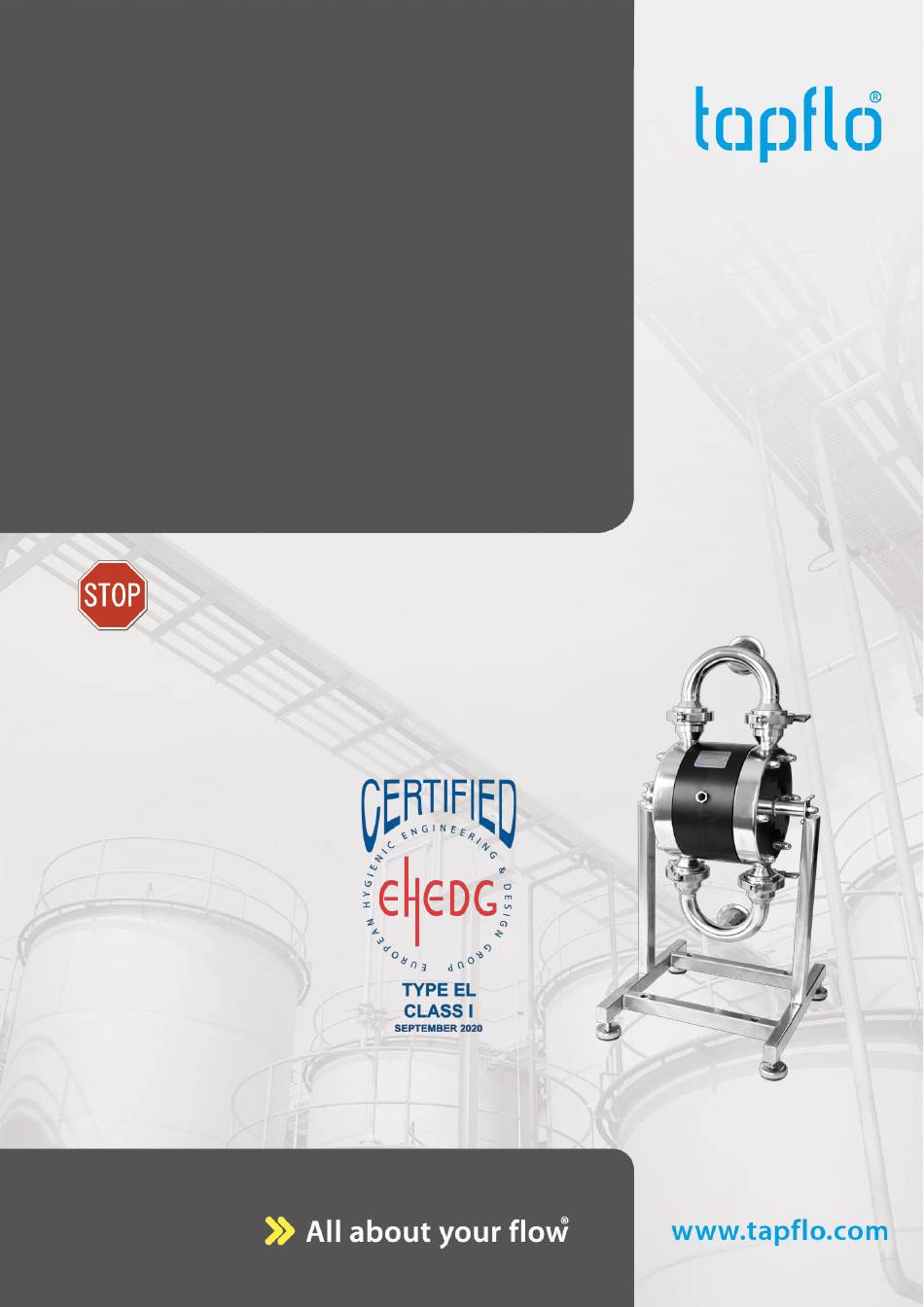

  • Page 1 IOM manual Aseptic Diaphragm Pumps Original instruction 2025 | 1 Read this instruction manual carefully, before you install and operate the pump Pump models: TX94 TX144 TX244 TX444...
  • Page 2 CONTENTS EC DECLARATION OF CONFORMITY 01/EC/EHE/2022 ................5 EU DECLARATION OF CONFORMITY 01/ATEX/AODD/2022 ..............6 GENERAL ............................7 0.1. Introduction..........................7 0.2. Warning symbols ........................7 0.3. Qualification and training of personnel ................... 7 0.4. EHEDG certification........................7 0.5. Nameplate ..........................8 INSTALLATION ..........................
  • Page 3 2.7. Cleaning of the pump ......................19 2.7.1. CIP and SIP ........................19 2.7.1.1. Drainage of the pump TX94 – TX444 ................. 19 2.7.1.2. Limited possibility of draining the pump ..............19 MAINTENANCE ..........................20 3.1. When the pump is new or reassembled ................. 20 3.1.1.
  • Page 4 CONTENTS 6.2. Capacity changes ........................36 6.3. Dimensions ..........................37 6.4. Technical data .......................... 38 6.5. Tightening torques ........................38 6.6. Permitted loads on manifolds ....................39 WARRANTY ..........................40 7.1. Warranty form .......................... 40 7.2. Returning parts ........................41 7.3.
  • Page 5 Directive 95/16/EC; Mr Michał Śmigiel is authorized to compile the technical file. Tapflo Sp. z o.o., Poland ul. Czatkowska 4b 83-110 Tczew Signed for and on behalf of Tapflo Group AB Per Antonsson Chief Executive Officer Kungälv, 16.12.2022 www.tapflo.com...
  • Page 6 II 2D Ex h IIIC T54ºC…T124ºC Db Notified body J.S. Hamilton Poland Sp. z o.o. performed type examination and issued certificate JSHP 19 ATEX 0018X. Signed for and on behalf of Tapflo Group AB Per Antonsson Chief Executive Officer Kungälv, 16.12.2022...
  • Page 7 The personnel in charge of installation, operation and maintenance of the pumps we produce must be qualified to carry out the operations described in this manual. Tapflo shall not be held responsible for the training level of personnel and for the fact that they are not fully aware of the contents of this manual.
  • Page 8 INSTALLATION 0.5. Nameplate The nameplate is made in the below design. It is made of AISI 304 stainless steel and placed on the flange bracket. Nameplate dimensions are 44 x 90 mm. ➢ DPT40 ➢ DPT65, DPT100, DPT125 Where: ➢ V –...
  • Page 9 1.1. Operation principle The Tapflo diaphragm pump is driven by compressed air. The two diaphragms are connected by a diaphragm shaft and pushed back and forth by alternately pressurising the air chambers behind the diaphragms using an automatically cycling air valve system.
  • Page 10 INSTALLATION 1.3. Lifting and transportation Before handling the pump check the weight of the pump (see 6.4. ”Technical data”). Refer to Your local standards on how to handle the pump. If the weight is excessive to transport by hand it must be lifted using slings and a suitable lifting device e.g. a crane or forklift.
  • Page 11 INSTALLATION 1.6. Suction and discharge piping Suction and discharge piping should be fully supported and anchored near to but independent of the pump. The piping to the pump should be a hose, to prevent undue stress and strain on the pump connections and the piping. 1.6.1.
  • Page 12 1.7.1. Protection In the interest of health and safety it is essential to wear protective clothing and safety goggles when operating, and/or working in the vicinity of Tapflo pumps. 1.7.2. Explosion hazardous environments – ATEX The “TX” Aseptic EHEDG series pumps are designed to operate in environments where there is danger of explosion.
  • Page 13 1.7.3. Air pressure The maximum air pressure for Tapflo pumps is 8 bar. Higher air pressure than 8 bar can damage the pump and may cause injury to personnel in vicinity of the pump. If you intend to apply a higher air pressure than 8 bar, please consult us.
  • Page 14 3) Needle valve to adjust the air flow (especially when operating the pump in the lower range of performance); 4) Filter. These components are included in Tapflo’s Air treatment system which can be ordered from us. IOM manual - Aseptic series...
  • Page 15 INSTALLATION 1.8.2. Air quality classes ISO 8573-1:2010 Compressed Air Contaminants and Purity Classes Solid particles Water Maximum number of particles Total oil content Pressure Mass Liquid per m³ Class (liquid, aerosol and dew point concentration vapour) 0.1 – 0.5 0.5 – 1 [mg/m³] [g/m³] 1 –...
  • Page 16 1.10.2. Self-priming The Tapflo pump is designed to pull a high vacuum. It is able to evacuate an empty suction pipe without any damage to the pump. The suction lift is up to 5 meters (16.4 ft.) from an empty suction pipe and up to 8 meters (26.2 ft.) from a wetted pipe. The suction capability depends on the pump size (see chapter 6.
  • Page 17 For instance, a TX94 pump should run continuous at maximum 40 l/min. ➢ As stated in chapter 1.8.1. Tapflo recommends to use an appropriate air treatment system in order to extend the pump’s lifetime.
  • Page 18 OPERATION particulate matter contained in the liquid will be deposited and get stuck inside the pump chamber. Therefore after finishing work the pump must be emptied of the remaining fluid. Otherwise, when starting the pump again, the diaphragm may get damaged and the shaft may bend leading to grub screw fracture.
  • Page 19 2.7.1. CIP and SIP The importance of easy cleaning is essential in hygienic applications. Tapflo aseptic pumps are designed for CIP (Cleaning In Place) and SIP (Sterilization In Place). This allows the pump to be internally cleaned without disassembly. The pump can be cleaned by flushing through with a CIP fluid (usually a mild solution of sodium hydroxide and a sanitizing additive) or by injection of hot steam (SIP).
  • Page 20 The characteristics of the liquid, temperature, materials used in the pump and running time decide how often a complete inspection is necessary. Nevertheless, Tapflo recommends to inspect the pump at least once a year. Parts from KIT AIR and KIT LIQ should be changed during inspection. See paragraph 5.7. „Stocking recommendations”...
  • Page 21 MAINTENANCE 3.4. Location of faults PROBLEM POSSIBLE FAULT POSSIBLE SOLUTION The air pressure is to low Increase air pressure via a filter-regulator The air connection is blocked Check / clean air supply connection Muffler is blocked Check / clean / replace muffler The pump does not run Air valve is defective Clean / replace complete air valve...
  • Page 22 MAINTENANCE 3.5. TX94-TX444 – Disassembly of the pump The numbers put in brackets, refer to the part numbers in the spare part drawings and spare part lists in chapter 5 “SPARE PARTS” 3.5.1. Before the disassembly procedure Be sure to drain all liquid from the pump. Cleanse or neutralize the pump thoroughly.
  • Page 23 MAINTENANCE Fig. 3.5.3 Fig. 3.5.4 Carefully take off the manifold [132]. Remove both sealing [18] from the manifold [132]. Fig. 3.5.5 Fig. 3.5.6 Pull out 2 x valve ball stops [22], Remove the Unscrew the domed nuts [174] and lift off the pump sealing [18] and valve balls [23] from the pump unit from the support [17].
  • Page 24 MAINTENANCE Fig. 3.5.7 Fig. 3.5.8 Remove the lower manifold [131] from the Pull out 2 x valve ball stops [22], Remove the sealing pump housing [11L] and [11P]. [18] and valve balls [23] from the pump housing [11L] and [11P]. Unscrew the domed nuts [174] and lift off the pump unit from the support [17].
  • Page 25 MAINTENANCE Circlip mounted air valve – TX94 Fig. 3.5.12 Fig. 3.5.13 Using pliers remove both circlips [27] from the Press out the air valve [61] by means of a pressing centre block [12]. device. Be careful not to damage the brass edges of Attention! While doing this, cover yourself the air valve.
  • Page 26 3.6. TX94-TX444 – assembly of the pump The assembly procedure is done in the reverse order to the disassembly. Nevertheless there are a few things that you have to remember in order to assemble the pump correctly.
  • Page 27 MAINTENANCE Fig. 3.6.3 Fig. 3.8.4 When screwing in the diaphragms [15] on the shaft When putting in the pin screws [14] take extra [16], the holes in the diaphragms must align with care not to damage the diaphragms [15] with the holes in the centre block [12].
  • Page 28 OPTIONS 4.1. Magnetic ball lifters New magnetic ball lifters have been implemented in pump sizes TX94 – TX244. They are implemented to enable pump emptying when no other draining option is available. Rotating the pump is no longer needed. The balls are lifted by simply attaching the magnets to the pumps manifold.
  • Page 29 SPARE PARTS SPARE PARTS 5.1. TX94 – Spare parts drawing IOM manual - Aseptic series...
  • Page 30 SPARE PARTS 5.2. TX94 – Spare parts list Pos. Q-ty Description Material Housing left side AISI 316L Housing right side AISI 316L Centre block PP, Conductive PP Manifold inlet AISI 316L Manifold outlet AISI 316L Tri-clamp AISI 304L Pin screw...
  • Page 31 SPARE PARTS 5.3. TX144-TX444 – Spare parts drawing IOM manual - Aseptic series...
  • Page 32 SPARE PARTS 5.4. TX144-TX444 – Spare parts list Pos. Q-ty Description Material Housing left side AISI 316L Housing right side AISI 316L Centre block PP, Conductive PP Manifold inlet AISI 316L Manifold outlet AISI 316L Tri-clamp AISI 304L 6/8* Pin screw A4-80 PTFE / EPDM (standard), Diaphragm...
  • Page 33 SPARE PARTS 5.5. TX94 – TX444 – Spare parts options External control – built on solenoid valve Center block PP, PP Cond. Solenoid valve Diaphragm stroke sensor Threaded insert AISI 316L Centerblock for 1221 Screw stroke sensor A4-70 O-ring NBR, FKM, EPDM...
  • Page 34 5.7. How to order parts When ordering spare parts for Tapflo pumps, please let us know what is the model number and serial number from the pump centerblock. Then just indicate the part numbers from the spare parts list and quantity of each item.
  • Page 35 V. Material of diaphragms III. Max capacity [l/min] VI. Material of valve balls VII. Special executions S T B T = Tapflo diaphragm pump Material of valve balls: B = Modified PTFE II. Basic options: = AISI 316 stainless steel B = Backup diaphragm pump X = ATEX approved, group II, cat.
  • Page 36 TX94 pump. It requires an air pressure of 4 bar and will consume approximately 0.20 Nm of air per minute. Recommended flow is half of the max flow, e.g. recommended flow for a TX94 is 40 l/min. 6.2. Capacity changes...
  • Page 37 Dimensions Dimensions in mm (where other is not indicated) Dimensions in inch (where other is not indicated) General dimensions only, ask us for detailed drawings. Changes reserved without notice. PUMP SIZE Dimension TX444 TX94 TX144 TX244 12.6 12.6 15.9 18.3 12.5...
  • Page 38 What is more for proper operation and safety the torque values should be checked frequently as part of preventive maintenance (please contact Tapflo for interval proposals). Although pump applications vary, a general guideline is to re-torque the pump every two weeks.
  • Page 39 DATA 6.6. Permitted loads on manifolds We recommend not to exceed the following loads and forces reacting on the manifolds. TX94 Load [N] Moment of force Direction (inlet/outlet) (inlet/outlet) [Nm] TX144 Load [N] Moment of force Direction (inlet/outlet) (inlet/outlet) [Nm]...
  • Page 40 WARRANTY WARRANTY 7.1. Warranty form Company: Telephone: Fax: Address: Country: Contact Name: E-mail: Delivery Date: Date of pump installation: Pump type: Serial No (see name plate or stamped on pump housing): Description of the fault: The installation: Liquid: Temperature [°C]: Viscosity [cPs]: Spec grav.
  • Page 41 7.3. Warranty Tapflo warrants products under conditions as stated below for a period of not more than 5 years from installation and not more than 6 years from date of manufacturing. 1. The following terms and conditions apply to the sale of machinery, components and related services and products, of Tapflo (hereinafter “the products”).
  • Page 42 9. Tapflo will not be liable on any claim, whether in contact, tort, or otherwise, for any indirect, special, incidental, or consequential damages, caused to the customer or to third parties, including loss of profits, arising by any possible infringement of par.

This manual is also suitable for:

Tx144Tx244Tx444
