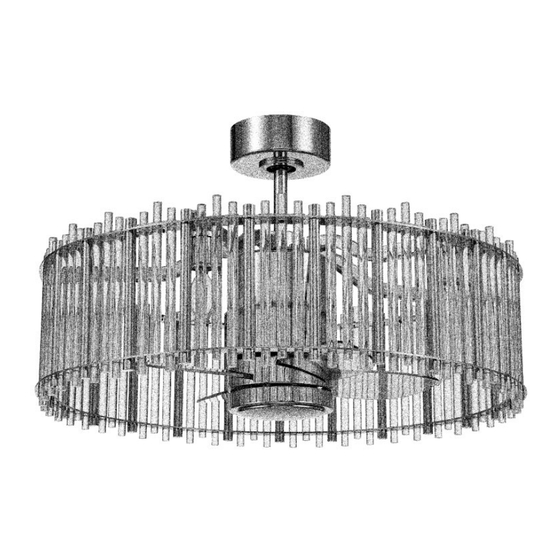

Reveal
Installation Guide
For Model:
RVL28
WARNING:
DC Motor will ONLY
operate if blades
are installed.
Remote control
and receiver are
pre-programmed.
E192641
net weight of fan: 28lb (12.72 kg)
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE
Table of Contents:
Safety Tips. pg. 3
Unpacking Your Fan. pg. 4
Parts Inventory. pg. 4
Installation Preparation. pg. 5
Hanging Bracket Installation. pg. 5
Initial Assembly. pgs. 6 - 7
Wiring. pg. 8
Canopy Assembly. pg. 8
Final Assembly. pg. 9
Automated Learning Process./
Activating Code. pgs. 9 -10
Remote Control Operation. pg. 10
Activating Your Ceiling Fan Smart
Features. pg. 11
Testing Your Fan. pg. 12
Troubleshooting. pg. 13
Parts, Replacement or Technical
Assistance. pg. 13
Warranty. pg. 13
page 1
PRINTED IN CHINA
Advertisement
Related Manuals for Craftmade Reveal RVL28
Summary of Contents for Craftmade Reveal RVL28
- Page 1 READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Reveal Installation Guide Table of Contents: Safety Tips. pg. 3 For Model: Unpacking Your Fan. pg. 4 RVL28 Parts Inventory. pg. 4 Installation Preparation. pg. 5 Hanging Bracket Installation. pg. 5 Initial Assembly.
- Page 2 Activating Your New Smart Fan; Downloading the Bond Home App • Using your smart device, navigate to the application store (Apple App store or Google Play), download the free Bond Home app and create account. • Ensure the fan and receiver are receiving power from the house supply using the remote control to turn the fan and light ON and OFF.
- Page 3 Lights are dimmable to 10% with the remote control included. Avenue, DFW Airport, TX, 75261; 800-486-4892 Distributed by: Craftmade, 3901 S. 20 NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may occur.
- Page 4 1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs. Check against parts inventory that all parts have been included.
- Page 5 3. Installation Preparation. To prevent personal injury and damage, ensure that blade edge the hanging location allows the blades a clearance of 7 feet (2.13m) from the floor and 30in. (76cm) inches from any wall or obstruction. 7 feet (76cm) (2.13m) This fan is suitable for room sizes up to 100 square feet (9.3 square meters).
- Page 6 5. Initial Assembly. stop pin Remove hanging ball from downrod provided set screw by loosening set screw on hanging ball. Lower hanging ball and remove stop pin and then slide hanging ball off of the downrod. [Refer to hanging ball diagram 1.] Loosen yoke set screws and nuts at top of motor housing.
- Page 7 5. Initial Assembly. (cont.) set screw hole Thread safety cable and wires through hanging ball and then slide hanging ball over downrod--the stop pin top of the downrod should be noted as having a hanging ball set screw hole; use this hole when setting the set screw.
- Page 8 6. Wiring. white supply wire WARNING: Turn off circuit breakers to current ground (green fixture from breaker panel and be sure switch is black supply wire or bare) turned to the OFF position. ground (green/bare) CAUTION: Be sure outlet box is properly ground (green) grounded and that a ground wire (GREEN or...
- Page 9 8. Final Assembly. Install five 4 watt max. medium base LED bulbs (included). Important: When you need to replace bulb(s), please allow bulb(s) to cool down before touching them. Align grooves in metal cover with nodules on inside of motor housing. Push up on metal cover and then turn metal cover to the RIGHT (clockwise) until it no...
- Page 10 9. Automated Learning Process./Activating Code. (cont.) IMPORTANT: Store the remote control away from excess heat or humidity. To prevent damage to remote control, remove the battery if remote control will not I I I be used for long periods. CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR LEAK.
- Page 11 11. Activating Your Ceiling Fan Smart Features. (Optional) To enjoy all your ceiling fan smart features (such as Breeze speed setting, Schedules, Voice Activation, and more) you must connect it to your Wi-Fi network. Please follow these steps: 1. Download the Bond Home App, available on the Google Play Store and Apple App Store, or use the QR code to download the app.
- Page 12 12. Testing Your Fan. It is recommended that you test fan before finalizing installation. Restore power from circuit box and wall switch (if applicable). Test fan speeds with the different fan speed buttons (I - VI) on remote control. Test the light ON/OFF function by pressing button.
- Page 13 Solutions: customerservice@craftmade.com. 1. Check wall switch to fan. In the event a product is no longer available, CRAFTMADE 2. Check to be sure fan is wired will make best efforts to offer a comparable product or 3. Learning process between fan, and remote credit towards another CRAFTMADE fan.
