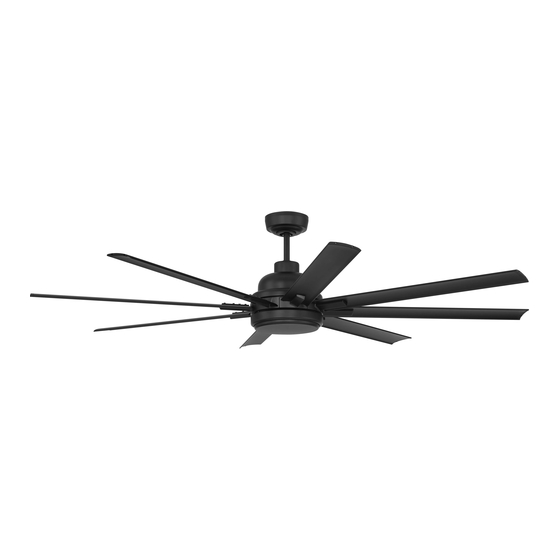

Rush

Installation Guide

For Models:

RSH65

RSH72

RSH84

WARNING:

DC Motor will not operate

until blades are installed

APPROVED FOR USE

IN WET LOCATIONS

net weight of fan: 30.53 lb (13.85 kg), RSH65

31.53 lb (14.3 kg), RSH72

32.85 lb (14.9 kg), RSH84

READ THESE INSTRUCTIONS AND

SAVE THEM FOR FUTURE USE

Need help?

Do you have a question about the Rush RSH65 and is the answer not in the manual?

Questions and answers

Summary of Contents for Craftmade Rush RSH65

Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Rush Installation Guide Table of Contents: For Models: Safety Tips. pg. 3 RSH65 Unpacking Your Fan. pg. 4 RSH72 Parts Inventory. pg. 4 Installation Preparation. pg. 5 RSH84 Hanging Bracket Installation. pg. 5 Fan Assembly.
Page 2 Activating Your New Smart Fan; Downloading the Bond Home App • Using your smart device, navigate to the application store (Apple App store or Google Play), download the free Bond Home app and create account. • Ensure the fan and receiver are receiving power from the house supply using the remote control to turn the fan and light ON and OFF.
Page 3: Safety Tips
Light kit is dimmable to 10% with the remote control included. Distributed by: Craftmade, 3901 S. 20 Avenue, DFW Airport, TX, 75261; 1-800-486-4892 NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may occur.
Page 4: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs. Check against parts inventory that all parts have been included.
Page 5: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, ensure that inches 10 feet the hanging location allows the blades a clearance (3.05m) (76cm) of 10 feet (3.05m) from the floor and 30in. (76cm) from any wall or obstruction. This fan is suitable for room sizes up to 400 square 12ft.
Page 6: Fan Assembly. Pgs
stop pin 5. Fan Assembly. screw set screw Remove 2 set screws from the top of downrod and top of downrod save for later use. Remove top of downrod from Allen downrod provided by loosening Allen screws on top wrench of downrod with Allen wrench provided.
Page 7 5. Fan Assembly. (cont.) With the hanging bracket secured to the safety cable loop outlet box and able to support the fan, you wood ceiling are now ready to hang your fan. Grab the fan joist firmly with two hands and the slide downrod through opening in hanging bracket.
Page 8: Wiring
6. Wiring. WARNING: Turn off circuit breakers to current fixture from breaker panel and be white supply wire sure switch is turned to the OFF position. ground (green black supply wire or bare) CAUTION: Be sure outlet box is properly grounded and that a ground wire (GREEN or ground (green) Bare) is present.
Page 9: Canopy Assembly
7. Canopy Assembly. Locate 2 screws on underside of hanging bracket and remove Phillips screw closest to the open end of the hanging bracket. Partially loosen the other screw hanging Phillips screw. Lift canopy to hanging bracket. Place bracket rounded part of slotted hole in canopy over loosened screw in hanging bracket and push up.
Page 10: Light Kit Assembly
9. Light Kit Assembly. motor housing Remove 1 screw from motor plate on underside of motor housing and partially loosen the other 2 screws. Align slotted holes in fitter plate with loosened screws in motor plate, allowing molex motor plate connections from motor housing to come through hole in middle of fitter plate.
Page 11: Automated Learning Process./Activating Code
10. Automated Learning Process./Activating Code. CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is REMOTE CONTROL (back) not desired, turn wall switch off to any other programmable receiver or fan. Remove battery cover on back side of remote control transmitter.
Page 12: Remote Control Operation
11. Remote Control Operation. REMOTE CONTROL I I I Fan SPEED buttons--1: Use to control ceiling fan speeds 1-6 Fan OFF button--2: Use to turn the fan off REVERSE function button--3: Use to control fan direction LIGHTING button--4: Use to control light (if applicable) IMPORTANT : The Automated Learning Process takes approximately 5 minutes to complete.
Page 13: Smart Ceiling Fan Wi-Fi Control
12. Smart Ceiling Fan Wi-Fi Control. (Optional) Without Wi-Fi activation, you will not enjoy the expanded features and functionality of your ceiling fan: Breeze speed setting, Creating Schedules and Voice Activation. To enjoy all the potential of your new device, refer to the following steps to complete Smart setup.
Page 14: Testing Your Fan
13. Testing Your Fan. It is recommended that you test fan before finalizing installation. Restore power from circuit box and wall switch (if applicable). Test fan speeds with the different fan speed buttons (I - VI) on remote control. Test the light ON/OFF function by pressing the button.
Page 15: Troubleshooting
WARNING: Failure to disconnect power supply prior CRAFTMADE LIMITED LIFETIME WARRANTY: to troubleshooting any wiring issues may result in CRAFTMADE warrants this fan for use as intended serious injury. under the following provision: CRAFTMADE will replace any fan which has faulty performance due to a Problem: Fan fails to operate.
