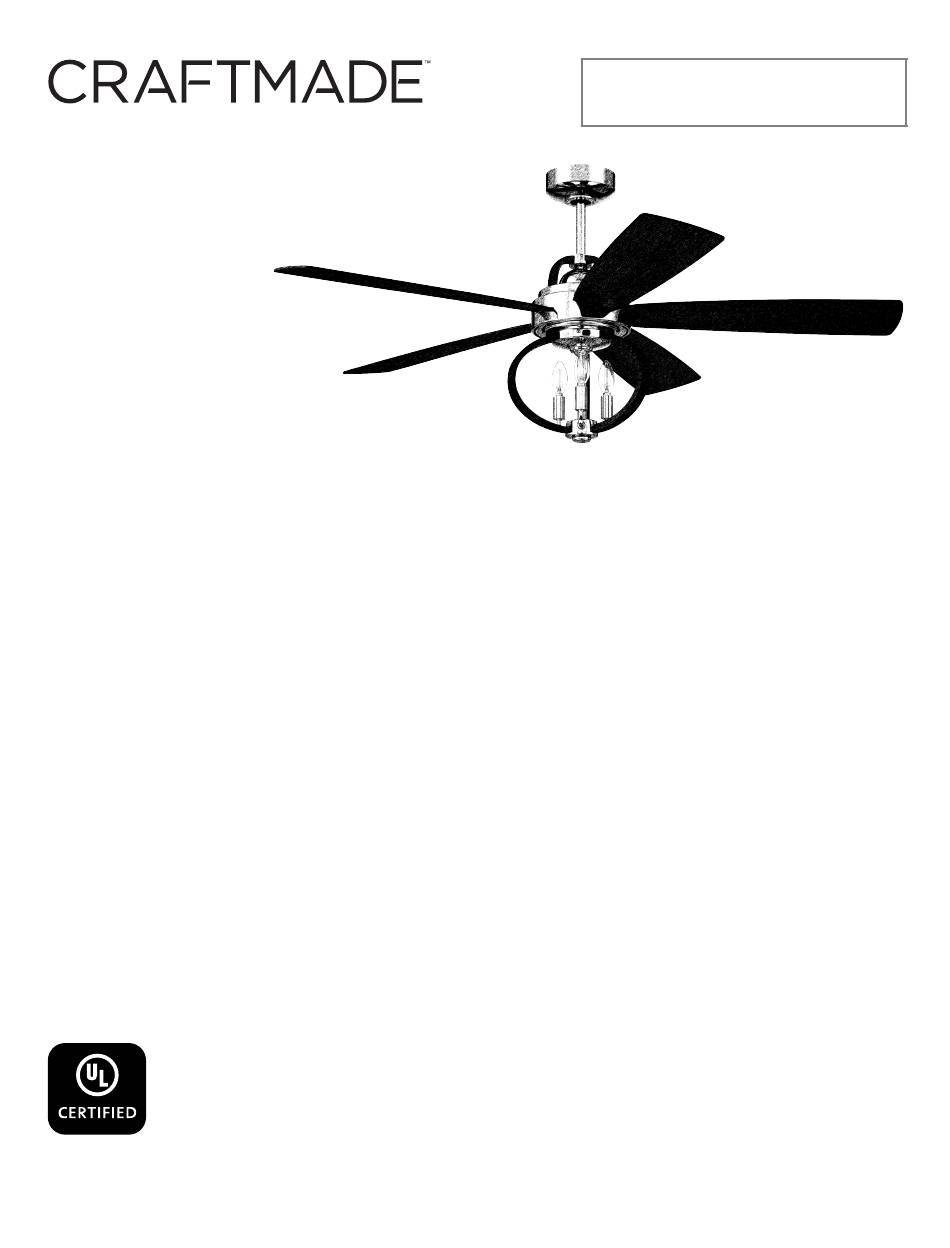

Installation Guide
For Model:
RSE52
WARNING:
DC Motor will not
operate until blades
are installed
APPROVED FOR USE IN
DAMP LOCATIONS
net weight of fan: 15.43 lb (7 kg)
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE

Table of Contents:

Wiring. pg. 7
Warranty. pg. 14
page 1
PRINTED IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSE52 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Craftmade RSE52

Summary of Contents for Craftmade RSE52

  • Page 1: Table Of Contents

    READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Reese Installation Guide Table of Contents: For Model: RSE52 Safety Tips. pg. 3 Unpacking Your Fan. pg. 4 Parts Inventory. pg. 4 Installation Preparation. pg. 5 WARNING: Hanging Bracket Installation. pg. 5 DC Motor will not Fan Assembly.
  • Page 2 Activating Your New Smart Fan; Downloading the Bond Home App • Using your smart device, navigate to the application store (Apple App store or Google Play), download the free Bond Home app and create account. • Ensure the fan and receiver are receiving power from the house supply using the remote control to turn the fan and light ON and OFF.

  • Page 3: Safety Tips

    (2) this LED light kit must accept any interference received, including interference that may cause undesired operation. Distributed by: Craftmade, 3901 South 20th Avenue, DFW Airport, TX, 75261; 1-800-486-4892 NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may occur.

  • Page 4: Unpacking Your Fan

    1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs. Check against parts inventory that all parts have been included.

  • Page 5: Installation Preparation

    3. Installation Preparation. blade edge To prevent personal injury and damage, ensure inches that the hanging location allows the blades a 7 feet (76cm) clearance of 7 feet (2.13m) from the floor and (2.13m) 30in. (76cm) from any wall or obstruction. This fan is suitable for room sizes up to 12ft - 20ft (3.66m - 6.1m)

  • Page 6: Fan Assembly. Pgs

    stop pin 5. Fan Assembly. set screw Remove hanging ball from downrod provided by loosening set screw on hanging ball. Lower hanging hanging ball ball and remove stop pin and then slide hanging ball off of the downrod. [Refer to diagram 1.] Loosen yoke set screws and nuts at top of motor diagram 1 housing.

  • Page 7: Wiring

    5. Fan Assembly. (cont.) safety cable loop wood With the hanging bracket secured to the outlet box and ceiling able to support the fan, you are now ready to hang your joist fan. Grab the fan firmly with two hands. Slide downrod through opening in hanging bracket and let hanging wood screw and washer...

  • Page 8: Canopy Assembly

    7. Canopy Assembly. hanging bracket Locate 2 screws on underside of hanging bracket and remove screw closest to the open end of the hanging bracket. Partially loosen the other screw. Lift canopy to hanging bracket. Place rounded part of slotted hole in canopy over loosened screw in hanging bracket and push up.

  • Page 9: Light Kit Assembly

    9. Light Kit Assembly. Remove 3 screws from outer edge of fitter plate (save screws for later use). motor housing Remove 1 screw from motor plate on underside motor plate of motor housing and partially loosen the other 2 screws. Align slotted holes in fitter plate with molex loosened screws in motor plate, allowing molex connections...

  • Page 10: Automated Learning Process./Activating Code

    10. Automated Learning Process./Activating Code. CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is not desired, turn wall switch off to any other REMOTE CONTROL TRANSMITTER programmable receiver or fan. (back side) Remove battery cover on back side of remote control transmitter.

  • Page 11: Remote Control Operation

    11. Remote Control Operation. REMOTE CONTROL TRANSMITTER I I I 1--Fan SPEED buttons: Use to control fan speeds 1-6 2--Fan OFF button: Use to turn the fan off 3--REVERSE function button: Use to control direction of fan rotation 4--LIGHT button: Use to control light IMPORTANT: The Automated Learning Process takes approximately 5 minutes to complete.

  • Page 12: Smart Ceiling Fan Wi-Fi Control

    12. Smart Ceiling Fan Wi-Fi Control. (Optional) Without Wi-Fi activation, you will not enjoy the expanded features and functionality of your ceiling fan: Breeze speed setting, Creating Schedules and Voice Activation. To enjoy all the potential of your new device, refer to the following steps to complete Smart setup.

  • Page 13: Testing Your Fan

    13. Testing Your Fan. It is recommended that you test fan before finalizing installation. Restore power from circuit box and wall switch (if applicable). Test fan speeds with the different fan speed buttons (I - VI) on remote control transmitter. Test the light ON/OFF function by pressing button;...

  • Page 14: Troubleshooting

    In the event a product is no longer available, CRAFTMADE activated. Turn off power and repeat instructions for SET will make best efforts to offer a comparable product or button in Section 10 (page 10).
