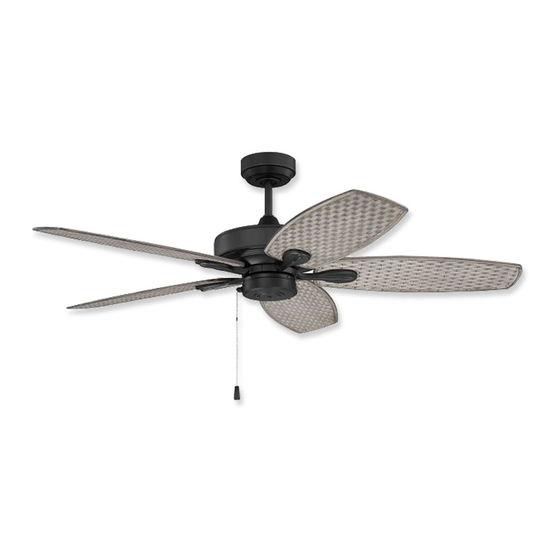

Craftmade Retreat RET52 Installation Manual

Hide thumbs Also See for Retreat RET52:

Installation manual (33 pages)

Table of Contents

Quick Links

Download this manual

Retreat

Installation Guide

For model:

RET52

For

Wet Location

E192641

net weight of fan: 22.71 lb (10.31 kg)

READ THESE INSTRUCTIONS AND

SAVE THEM FOR FUTURE USE

Need help?

Do you have a question about the Retreat RET52 and is the answer not in the manual?

Questions and answers

Summary of Contents for Craftmade Retreat RET52

Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Retreat Installation Guide For model: RET52 Table of Contents: Safety Tips. pg. 2 Unpacking Your Fan. pg. 3 Parts Inventory. pg. 3 Installation Preparation. pg. 4 Hanging Bracket Installation. pg. 4 Fan Assembly.
Page 2: Safety Tips
SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS.
Page 3: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs. Check against parts inventory that all parts have been included.
Page 4: Installation Preparation
blade edge 3. Installation Preparation. inches To prevent personal injury and damage, ensure 7 feet (76cm) that the hanging location allows the blades a (2.13m) clearance of 7 feet (2.13m) from the floor and 30in. (76cm) from any wall or obstruction. 12ft.
Page 5: Fan Assembly. Pgs
5. Fan Assembly. stop pin set screw Remove hanging ball from downrod provided by loosening set screw on hanging ball. Lower hanging hanging ball ball and remove stop pin and then slide hanging ball off of the downrod. [Refer to diagram 1.] diagram 1 Loosen yoke set screws and nuts at top of motor housing.
Page 6 5. Fan Assembly. (cont.) weatherproof Remove electrical tape from electrical wiring hanging ball cover and thread each of the wires through a different hole in the weatherproof hanging electrical wiring ball cover. Pull weatherproof hanging ball cover down securely over hanging ball (on downrod).
Page 7: Wiring
6. Wiring. WARNING: Turn off circuit breakers to current fixture from breaker panel and be sure switch is turned to the OFF position. white supply wire ground (green or bare) black supply wire CAUTION: Be sure outlet box is properly grounded and that a ground wire (GREEN or Bare) is present.
Page 8: Canopy Assembly
7. Canopy Assembly. Locate 2 screws on underside of hanging bracket and remove screw closest to the open end of the hanging hanging bracket bracket. Partially loosen the other screw. Lift canopy to hanging bracket. Place rounded part of slotted hole in screw canopy over loosened screw in hanging bracket and push up.
Page 9: Switch Housing Assembly
9. Switch Housing Assembly. Remove 4 screws from outer edge of switch housing (save screws for later use). Remove 1 screw from motor plate on underside of motor housing and partially loosen the other 2 screws. motor Align slotted holes in middle of fitter plate housing with loosened screws in motor plate, allowing male plug from motor housing to...
Page 10: Testing Your Fan
10. Testing Your Fan. It is recommended that you test fan before finalizing installation. Restore power from circuit box and light switch (if applicable). Test fan speeds with pull chain. (diagram 1) Start at the OFF position (no blade movement). First pull will set the fan to HI.
Page 11: Troubleshooting
Service at 1-800-486-4892 to arrange for return of fan. 1. Check wall switch to fan. Return fan, shipping prepaid, to Craftmade. We will repair 2. Verify that reverse switch is set completely in or ship you a replacement fan, and we will pay the return either direction.
