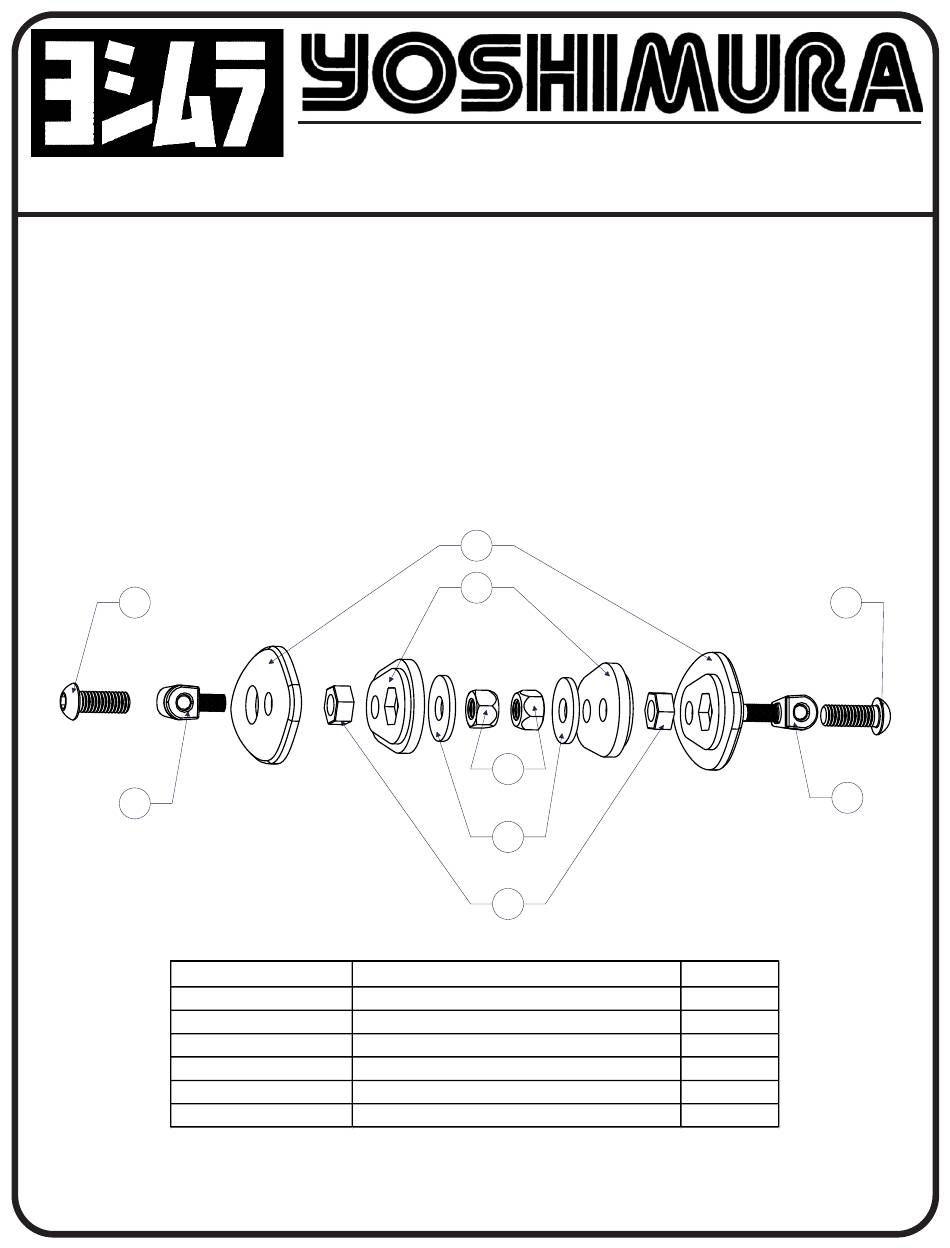

TURN SIGNAL ADAPTER PL ATES
CRF 300L Front and Rear
3
6
074BG123411-OUT
074BG123411-IN
M6X16BHS
6MMWASHERL
072BGMICRTSR
RESEARCH&DEVELOPMENT OF AMERICA, INC.
www.yoshimura-rd.com
Honda
074BG123411
Item
6mm x 16mm Button Head Cap Screw
6MMLN
CRF 300L Rally Rear
1
2
5
4
6
Description
Outer Turn Signal Plate
Inner Turn Signal Plate
6mm Flat Washer - Large
M6 X 1.0 Nylon Lock Nut
Micro LED Turn Signal Kit
3
6
Qty.
2
2
2
2
2
1
