Chapter 2
Power-On By Modem:
While in Soft-Off state, if an external modem ring-up signal is detected, the system will be
activated and therefore can be remotely accessed. You may enable this function in BIOS's
Power Management Setup menu. (See section 3. 5)
Blinking LED in Suspend Mode:
While in Suspend mode, the LED light on the front panel of your computer will flash.
Suspend mode is entered by pressing the Green Override Power Button on your ATX case,
or by enabling the Power Management and Suspend Mode options in BIOS's Power
Management menu. (See section 3.5)
Poly-fuse Over Current Protection:
The poly-fuse protects the system from dangerous voltages that the system might be
exposed to via keyboards or USB connectors. In case of such an exposure, the poly-fuse will
immediately be disconnected from the circuit just like a normal fuse. After being
disconnected for a certain period of time, the poly-fuse will return to its normal state and
the keyboard or USB connector can function properly again. Unlike conventional fuses, the
poly-fuse will not need to be replaced, relieving users from such inconveniences.

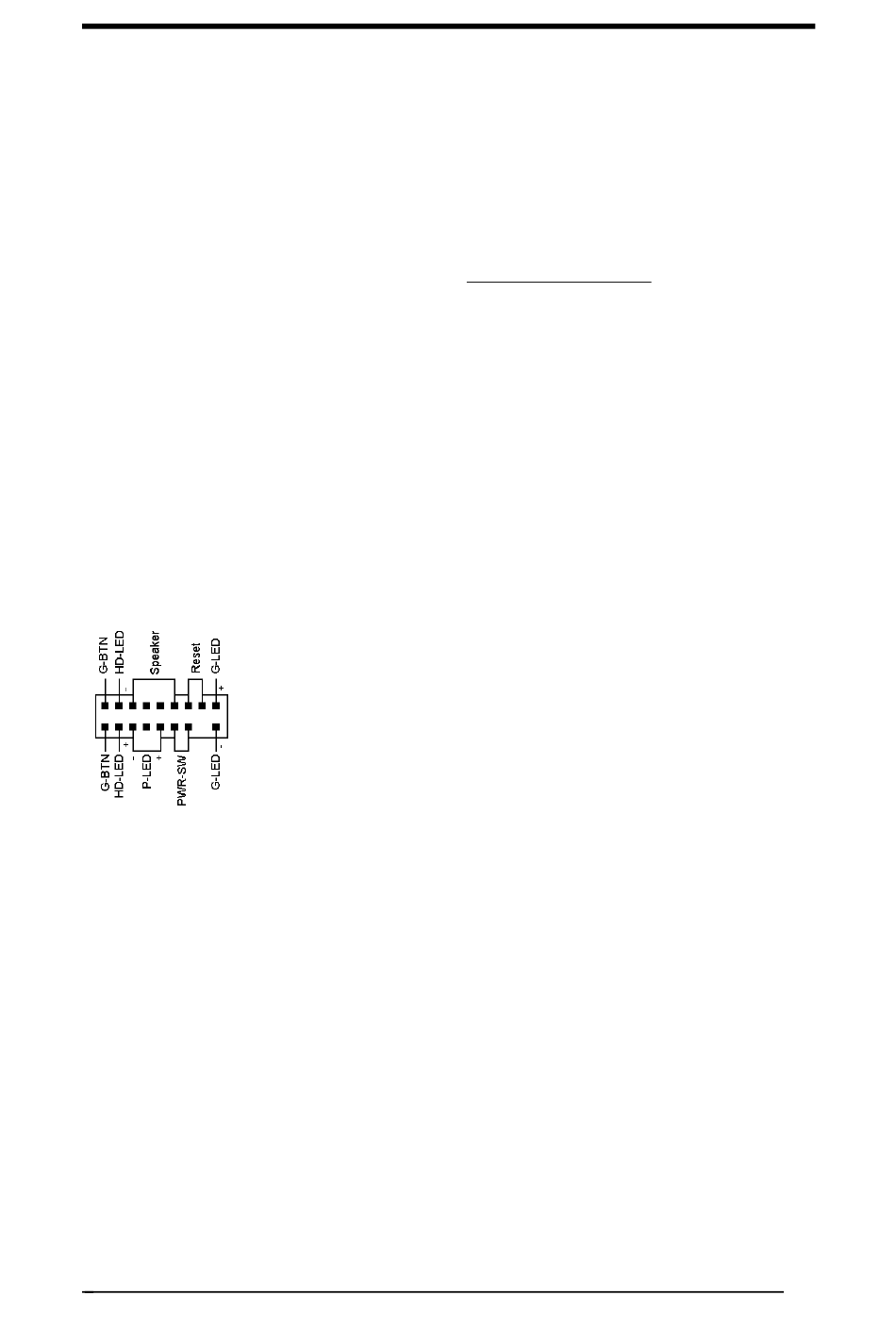

CN1A (Front Panel Connector):
When the Soft-OFF by PWR-BTTN function is enabled, pressing the power button
rapidly will switch the system to Suspend mode. Any occurrence of external
activities such as pressing any keys on the keyboard or moving the mouse will
bring the system back to Full-On. Pushing the button while in Full-On mode for
more than [4 seconds] will switch the system completely off. See Over-ride Power
Button Operation diagram.
P-LED (Power LED Connector):
2.
The power indicator LED shows the system's power status. It is important to pay
attention to the correct cable and pin orientation (i.e. Be careful not to reverse the
order of these two connectors.)
Note: The connector does not support the blue LED
G-BTN/G-LED (Green Button Switch/LED Connector):
3.
Some ATX cases provide a Green button switch, which is used to put the system in
Suspend mode. While in Suspend mode, the power supply to the system is reduced
6
PWR-SW (Over-ride Power Button Connector):
1.
The power button on the ATX chassis can be used as a normal power
switch as well as a device to activate the Advanced Power
Management Suspend mode. This is a power-saving mode used for
saving electricity when the computer is idle for long periods of time.
The Soft-OFF by PWR-BTTN function in BIOS's Power Management
Setup menu must be set to [Delay 4 Sec.] to activate this function.
