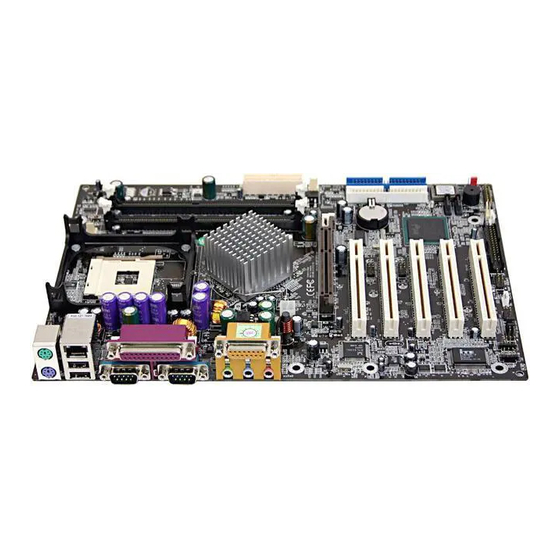

- Page 1 Intel® Socket 478 Intel® 865PE + ICH5 ATX Motherboard User’s Guide...
- Page 2 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. This declaration is given to the manufacturer: CHAINTECH-EXCEL COMPUTER INC. 4427 Enterprise St. Fremont, CA 94538, U.S.A. http://www.chaintechusa.com Chaintech President: Simon Ho Signature:...
- Page 3 Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: * This device may not cause harmful interference. * This device must accept any interference received, including interference that may cause undesired operation.
- Page 4 TABLE OF CONTENTS Chapter 1 Introduction ............. 1 1-1 Product Specifications................1 1-2 Package Contents ..................2 1-3 Motherboard Layout ................3 Chapter 2 Hardware Setup..........4 2-1 Installing a CPU Processor for Socket 478 ........4 2-2 Main Memory Configuration..............5 2-3 Connector and Jumper Settings ............5 Chapter 3 BIOS Setup Program .........
- Page 5 Revision History Revision Description V.1S_E Original Issue 9413480110...
- Page 7 Chapter 1 Chapter 1 Introduction Product Specifications Processor - Supports Intel® Socket 478 CPU with Hyper-Threading Technology - Supports Intel® Pentium 4 /Celeron system bus at 400/533/800MHz - Support Prescott CPU Chipset - Intel® 865PE + ICH5, supports Hyper-Threading Technology Main Memory - Supports Two 184 pin DDR DIMMs up to 2GB - Supports Dual-Channel DDR266/333/400 memory...
- Page 8 Chapter 1 On board ITE 8702 Super I/O Controller - Two UARTs support two serial ports - One SPP/ECP/EPP parallel port - One floppy disk drive connector supports up to 2.88MB Boot-Block Flash ROM - Award system BIOS support PnP, APM, DMI, ACPI, & Multi-device booting features Package Contents This product comes with the following components: Motherboard...
- Page 9 Chapter 1 Motherboard Layout...
- Page 10 Chapter 2 Chapter 2 Hardware Setup If your motherboard has already been installed in your computer you may still need to refer to this chapter if you plan to upgrade your system's hardware. This motherboard is electrostatic sensitive. Do not touch without wearing proper safety gadget and make sure to disconnect the power cable from the power source before performing any work on your motherboard.
- Page 11 Chapter 2 Main Memory Configuration This motherboard provides four 184pin Double Data Rate (DDR) Dual-In-line Memory Modules (DIMM) slots, which supports PC2100/2700/3200 DDR SDRAM modules up to 2GB. Install at least one DIMM module on the slots. Memory modules can be installed on the slots in any order. You can install either single- or double-sided modules to meet your own needs.
- Page 12 Chapter 2 Power-On By Modem: While in Soft-Off state, if an external modem ring-up signal is detected, the system will be activated and therefore can be remotely accessed. You may enable this function in BIOS's Power Management Setup menu. (See section 3. 5) Blinking LED in Suspend Mode: While in Suspend mode, the LED light on the front panel of your computer will flash.
- Page 13 Chapter 2 to a trickle, the CPU clock is stopped, and the CPU core is in its minimum power state. The system is activated whenever the keyboard or mouse is touched. The system will resume in various ways as defined by Power Management Setup screen in BIOS.
- Page 14 Chapter 2 JP6 (Enable/Disable USB 0/1 Device Power ON Jumper) USB 0/1 An USB keyboard hot key or an USB mouse-click Definition can activate this board. To use this function, select Disable (default) a hot key of your choice at the USB Resume from Enable S3 option under Wake Up Events in the BIOS's Power On Management screen.
- Page 15 Chapter 2 CN24 (Front Audio Connector): This connector gives you the option of a front-panel audio-jack cable ext. to be plugged into a special custom-designed system case. Simply remove the two jumper caps at pins [5-6] and [9-10] then plug it into the (optional) cable ext.
- Page 16 Chapter 3 Chapter 3 BIOS Setup Program Phoenix-Award BIOS ROM has a built-in setup program that allows users to modify the basic system configuration. This information is stored in CMOS RAM so that it can retain the setup information even when the power is turned off. To enter the Phoenix-Award BIOS setup program: Press [Delete] when you Power on or Reboot the computer system.
- Page 17 Chapter 3 IDE (Channel 0/1; Master/Slave): This category identifies up to four IDE hard-disk drives that have been installed in the computer. This section does not show information on other IDE devices such as CD-ROM drives or other hard drive types such as SCSI drive. Drive A/B: Select different Floppy device Model.
- Page 18 Chapter 3 First/Second/Third/Boot Other Device: This option sets the sequence of drives BIOS attempts to boot from after POST completes. BIOS will search these drives for an operating system. Swap Floppy Drive: Enabling this function will swap the floppy drive assignment so that drive A will function as drive B, and drive B will function as drive A.
- Page 19 Chapter 3 APIC Mode: In order to comply with PC2001 standard, the system is designed to run in APIC (Advanced Programmable Interrupt Controller) mode. Enabling APIC mode will increase the available IRQ resources for the system. Available options are [Enabled] and [Disabled]. MPS Version Control For OS: This item allows you to select which MPS (Multi-Processor Specification) version is used for the operating system.
- Page 20 Chapter 3 Advanced Chipset Features By choosing the [Advanced Chipset Features] option from the CMOS Setup Utility menu (Figure 3-1), the screen that lists the manufacturer's default values for the motherboard is displayed. All of the above settings have been determined by the motherboard manufacturer and should not be changed unless you are absolutely sure of what you are doing.
- Page 21 Chapter 3 Video BIOS Cacheable Enabling this function will allows caching of the video BIOS, resulting in better system performance. However, if any programs write to this memory area, a system error may occur. Memory Hole at 15M-16M Enabling this function will reserve the memory address space between 15MB and 16MB for ISA expansion cards.
- Page 22 Chapter 3 Integrated Peripherals This section provides information on setting up the peripheral devices. By choosing the Integrated Peripherals option from the CMOS Setup Utility menu (Figure 3-1), the screen that lists the manufacturer's default values for the motherboard is displayed. OnChip IDE Device: Press [Enter] to enter the sub-menu, which contains the following items for some advanced control:...
- Page 23 Chapter 3 Onboard Device: This section provides information for setting the on-board devices. Press [Enter] to enter the sub-menu, which contains the following items for some advanced controls: 1. USB controller Enable the on-board Universal Serial Bus (USB V1.1 or V2.0) controller if you want to connect a USB device to your system.
- Page 24 Chapter 3 4. UR2 Duplex Mode Available options: [Half] and [Full]. 5. Onboard Parallel Port Select a logical LPT port address and the corresponding interrupt for the physical parallel port. 6. Parallel Port Mode Select an operating mode for the onboard parallel (printer) port. Select SPP unless you are certain that your hardware and software support one of the other available modes.
- Page 25 Chapter 3 Power Management Setup This section provides information on the Green PC power management functions. By choosing the Power Management Setup option from the CMOS Setup Utility menu (Figure 3-1), the screen that lists the manufacturer's default values for the motherboard is displayed .
- Page 26 Chapter 3 MODEM Use IRQ: If your computer has a built-in modem use this function to inform BIOS the IRQ value occupied by the modem card. When the system is in Green mode, the modem requires an IRQ assignment to activate the system to perform tasks. This assignment is compliant with the APM 1.2 compliant operating systems.
- Page 27 Chapter 3 Settings are [Enabled] and [Disabled]. 5. Power On by Alarm When enabled, this setting allows the system to turn back on at specified date of the month. User must designate date of month and time of day. This function is only available when using an ATX power supply and the Software Power-Off function to turn off the computer.
- Page 28 Chapter 3 Available options are [Enabled] and [Disabled]. FDD IRQ Can Be Free: This function allows users to choose if the FDD IRQ can be freed up. The default setting is [Yes]. Frequency/Voltage Control By choosing the Frequency/Voltage Control option from the CMOS Setup Utility menu (Figure 3-1), the screen that lists the manufacturer's default values for the motherboard is displayed.
- Page 29 Chapter 3 Load Fail-Safe Defaults Load Fail-Safe Defaults loads the default BIOS values directly from the CMOS Setup Utility menu (Figure3-1). If user-defined BIOS settings are corrupted and therefore unusable, these defaults will be loaded automatically when you turn on the computer. Load Optimized Defaults Load Optimized Defaults loads the default system values directly from the CMOS Setup Utility menu (Figure3-1).
- Page 30 Chapter 4 Chapter 4 DRIVER Setup Insert the support CD that come with your motherboard into your CD-ROM driver or double-click the CD drive icon in [My computer] to enter the setup screen. Intel® IDE Bus Mastering Drivers Setup Click [Intel® IDE Bus Mastering Drivers] Click [Next] to start software installation.
- Page 31 Chapter 4 DirectX Setup This section provides information on installed DirectX devices by choosing [DirectX] from the Setup Driver menu. 1. Please select [I accept the agreement]. 2. Please select [Next]. 3. Please select [Next]. 4. Please select [Finish] to complete.
- Page 32 Note NOTE All rights are reserved for the products and corporate names/logos that appear in this manual to their original owners. We reserve all rights to change this manual. All information is subject to change without notice.
- Page 33 How to Contact CHAINTECH How To Contact CHAINTECH Please do not hesitate to contact us if you have any problem about our products. Any opinion will be appreciated. For Asia, Africa, Australia and Pacific For Europe: Island: CHAINTECH EUROPE B.V.
