CHAINTECH S865PE User Manual page 11

Main Memory Configuration
2-2
This motherboard provides four 184pin Double Data Rate (DDR) Dual-In-line
Memory Modules (DIMM) slots, which supports PC2100/2700/3200 DDR SDRAM
modules up to 2GB. Install at least one DIMM module on the slots. Memory modules
can be installed on the slots in any order. You can install either single- or
double-sided modules to meet your own needs.
To install your DDR Modules please follow these steps below:
1. Unlock a DIMM socket by pressing the retaining clips outward. The DDR Modules has
only one notch at the center of module. The DDR module will only fit in the right
position.
2. Insert the DDR Module vertically into the DIMM slot, with the correct alignment. Then
push it in until the golden finger on the memory module is deeply inserted into the
socket.
3. The plastic clip on each side of the DIMM slot will automatically close to hold the DDR
Modules in place.
Connector and Jumper Settings
2-3
Connectors are used to link the system board with other parts of the system, including
power supply, keyboard, and the various controllers on the front panel of the system case.
The power supply connector is the last connection to be made while
installing a motherboard. Before connecting the power supply, please
make sure it is not connected to the power source.
All cables come with a security-proof.

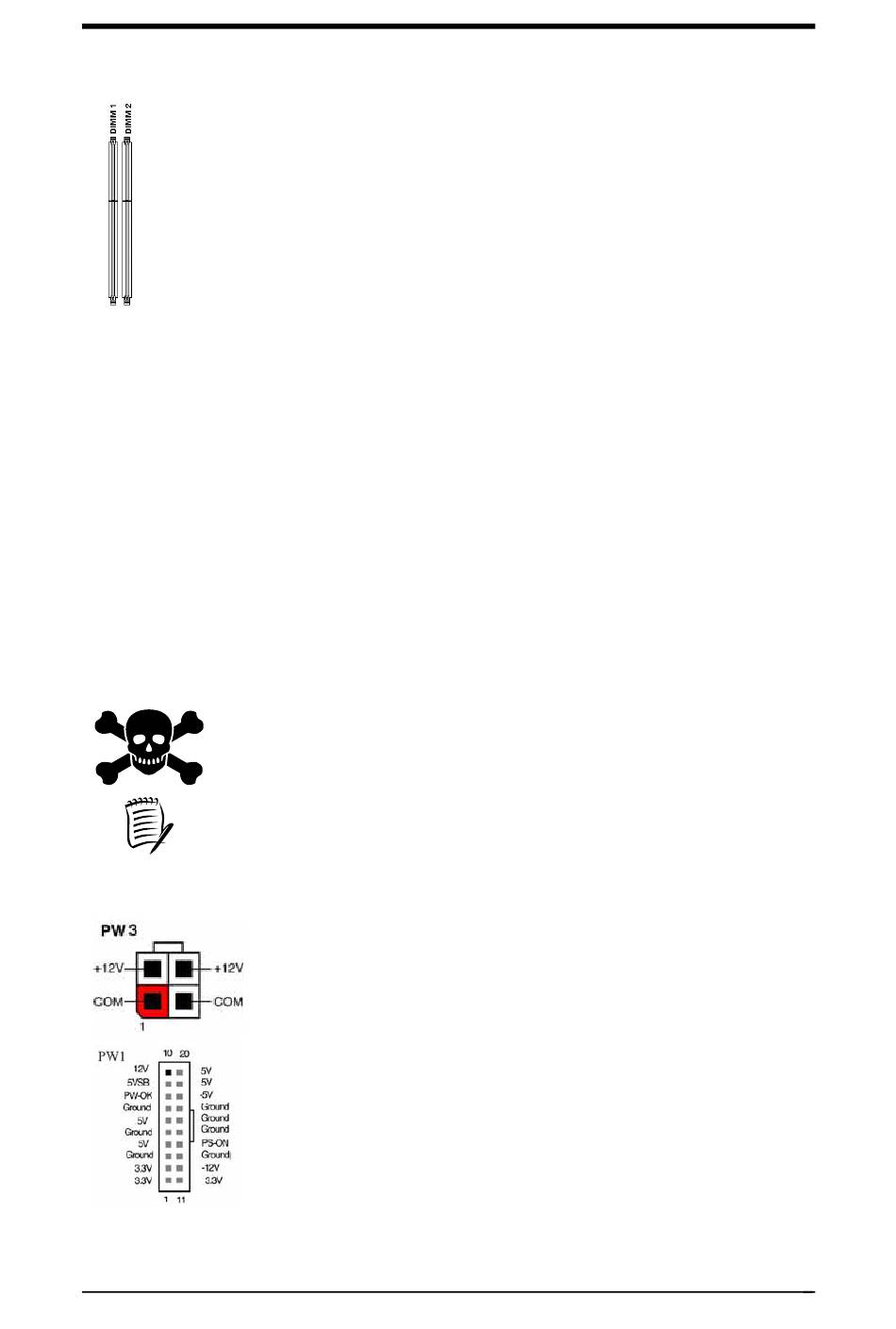

PW 1 / 3 (ATX Power Supply Connector):
VDC and + 5/ 3.3V VDC current to the motherboard.
The power cord leading from the system's power supply to the
external power source must be the very last part connected when
assembling a system. The ATX power supply provides a single 20-pin
connector interface, which incorporates standard +/-5V, +/-12V,
optional 3.3V and Soft-power signals. The Soft power signal, a 5V
trickle supply is continuously supplied when AC power is available.
When the system is in Soft-Off mode, this trickle supply maintains the
system in its minimum power state.
The ATX 12V power supply has a new +12V (4-pin) and +5V / 3.3V
(6-pin) auxiliary power connector to enable the delivery of more +12
Chapter 2
5
