4. Installing the Optional Wall Control
NOTE: A bluetooth wall control accessory can be purchased separately.

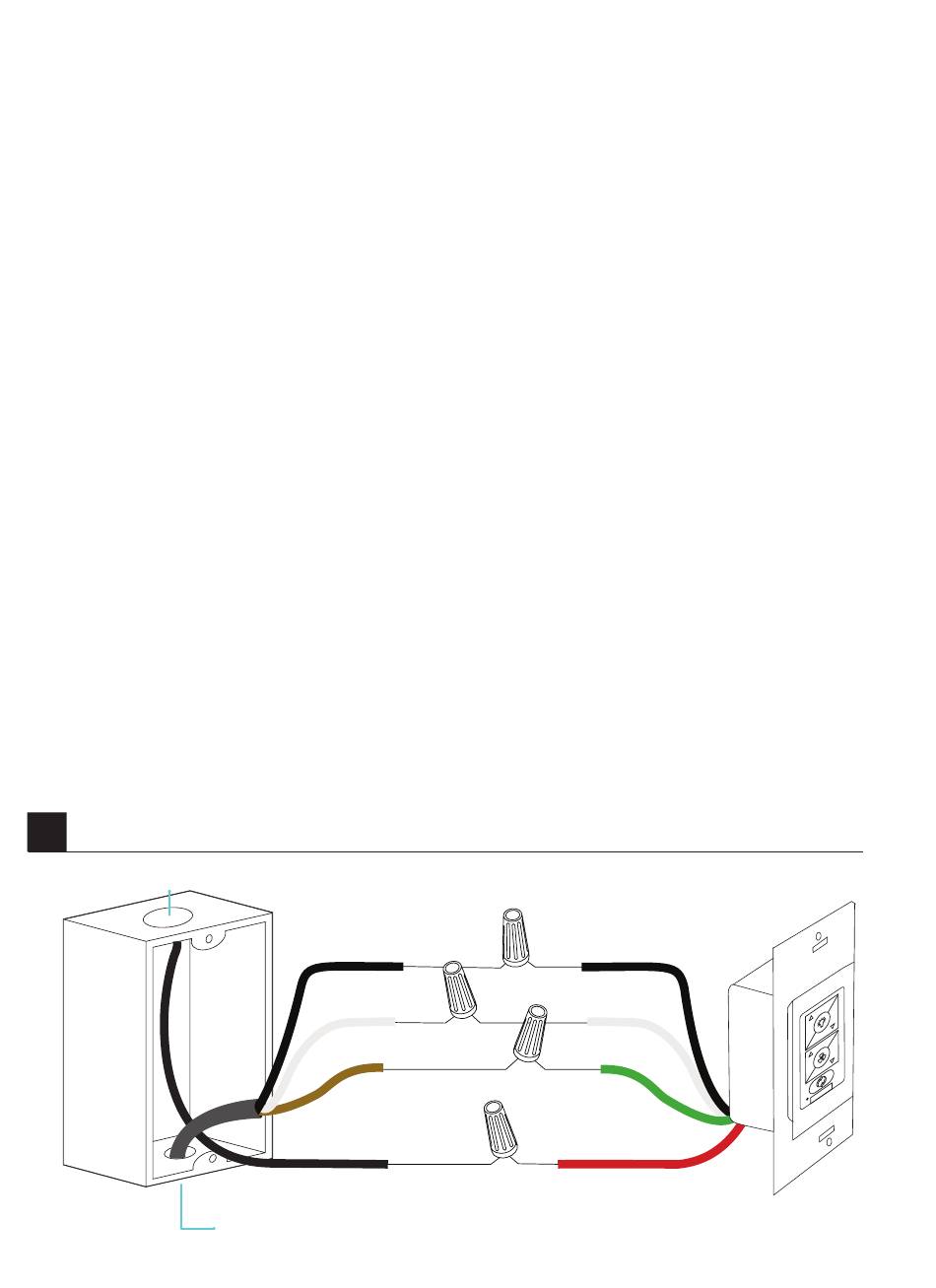

1. Connect the green wire marked "GROUND" from the wall control
to the copper wire from the wall outlet box that feeds back to the
circuit breaker – important for proper fan function (Fig. 4).
2. Connect the black wire marked "LINE IN" from the wall control to
the black LINE VOLTAGE wire from the wall outlet box that feeds
back to the circuit breaker (Fig. 4).
3. Connect the red wire from the wall control to the black wire from
the wall outlet box that feeds up to the fan (Fig. 4).
4. Connect the white wire from the wall control to the white (neutral)
wire from the wall outlet box (Fig. 4).
5. Carefully tuck the wire connections inside the outlet box.
Secure the wall control with the two (2) wall control screws
provided (Fig. 4A).
6. Attach the wall mounting plate over the wall switch and secure
with the two (2) wall mounting plate screws provided (Fig. 4A).
7. Fasten the wall plate to the wall mounting plate (Fig. 4A).
4
to Fan
18 Osprey Instructions
House Wires
(Hot)
(Neutral)
(Copper/Ground)
Fan Switch leg
From Breaker
* Home Wiring may vary
Wall Switch Wires
(Hot In)
(Neutral)
(Ground)
(Hot out to Fan)
FR-W1817
