- Page 1 Quick Installation Guide IGS-402SW-4PB(E) Industrial Grade Web Managed Gigabit 802.3bt PoE++ Switch sales@ctcu.com...
- Page 2 8F, No. 60 Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2023 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
- Page 3 CTC Union Technologies makes no warranty, representation, or guarantee regarding the suitability of its products for any particular purpose, nor does CTC Union assume any liability arising out of the application or use of any product and specifically disclaims any and all liability, including without limitation any consequential or incidental damages.
-
Page 4: Table Of Contents
Table of Contents Introduction .................. 5 Package List ................. 5 Features ..................5 Access to Command Line Interface (CLI) ........6 ..................6 ONSOLE ONNECTION /SSH C ..................7 ELNET ONNECTION Access to Web-Based Management Interface ......8 Specifications ................9 .................... -
Page 5: Introduction

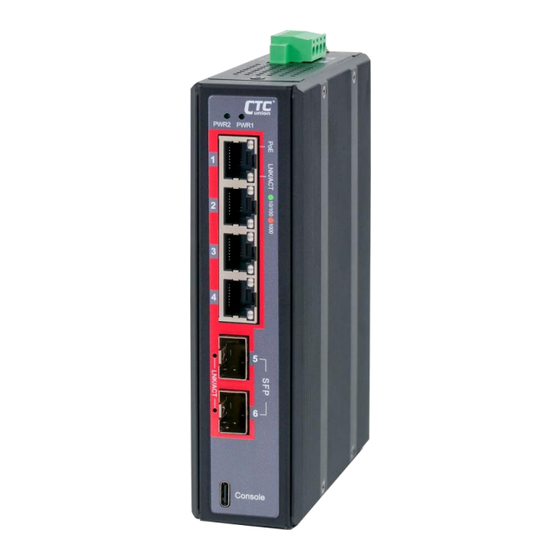

Introduction IGS-402SW-4PB(E) are industrial grade managed PoE switches with 4 10/100/1000Mbps RJ-45 ports and 2 100/1000Mbps fiber optic slots. PoE technology describes a system to pass electrical power safely, along with data, on Ethernet cabling. The original IEEE 802.3af-2003 PoE standard provides up to 15.4W of DC power to connected devices. -
Page 6: Access To Command Line Interface (Cli)
Access to Command Line Interface (CLI) All IGS-402SW-4PB(E) switches have a USB Type-C™ connector on the front panel which may be connected to a host computer for accessing Command Line Interface (CLI). If your host computer has a USB Type-C™ port, use a USB Type-C™ to USB Type-C™ cable to connect the IGS-402SW-4PB(E) to the host. -
Page 7: Telnet/Ssh Connection
Telnet/SSH Connection To use Command Line Interface (CLI), you can also choose to access the device through a Telnet/SSH connection via TCP/IP network over Ethernet ports. For initial operation, use the default TCP/IP settings (10.1.1.1) to login to the device. Default TCP/IP settings: IP Address: 10.1.1.1 Subnet Mask: 255.255.255.0... -
Page 8: Access To Web-Based Management Interface
Access to Web-Based Management Interface To enter the web-based management interface for the first time or after returning the device back to factory defaults, input the default IP 10.1.1.1 address “ ” in your favorite web browser. Then, a standard login prompt will appear depending on the type of browser used. -
Page 9: Specifications
Specifications Ethernet Interface Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab Connector: RJ-45 (shielded) Number of Ports: 4 Speed: 10/100/1000Mbps Cable: Category 5e or above (twisted pair cable) Optical Interface Standards: IEEE 802.3u, IEEE 802.3z ... -
Page 10: Power Over Ethernet
Dimensions: 106 mm (D) x 38.6 mm (W) x 152 mm (H) Mounting: DIN-Rail mounting, Wall mounting (Optional) Weight: 635g Environmental Operating Temperature: -10°C~60°C (IGS-402SW-4PB); -40°C~75°C (IGS-402SW-4PBE) Storage Temperature: -40°C~85°C Humidity: 5%~95% (Non-condensing) Certifications EMC: CE (EN55032, EN55035) ... -
Page 11: Panels
Panels Figure 2. Top Panel Figure 1. Front Panel Description Power terminal block Power 1 & 2 LED indicators LAN RJ-45 connectors Fiber slots USB Type C console port PoE LED indicator LAN Link/Activity LED indicator SFP Link/Activity LED indicator Earth ground sign... -
Page 12: Lan & Fiber Port
LAN & Fiber Port IGS-402SW-4PB(E) switches have four electrical LAN ports and two SFP-based fiber ports on the front panel. The LAN ports (numbered 1~4) that utilizes shielded RJ-45 connector support 10/100/1000Mbps speed and PoE function; while the fiber ports support dual rate 100/1000Mbps speed. -
Page 13: Recommended Power & Ground Wiring Scheme
Recommended Power & Ground Wiring Scheme Power Connection IGS-402SW-4PB(E) switches are powered up by an external power supply. On the top panel, a removable 4-pin terminal block is provided for two pairs (PWR1 & PWR2) of DC power connection. To connect to the power supply, insert V+ and V- wire into power contacts. -
Page 14: Led Indicators
LED Indicators Color Status Description PWR 1 Lit if power is connected and active. Green PWR 2 Power is not connected. The connected LAN speed is 1000M. Amber Blinking Blinking when there is Ethernet traffic. The LAN link is down or disabled. LNK/ACT The connected LAN speed is 10/100M. -
Page 15: Installation
Installation IGS-402WS-4PB(E) can be installed in DIN rail or mounted on wall (optional). Hardware brackets for DIN rail installation are provided with the device. However, wall-mounting brackets are not provided. If you need wall-mounting installation kit, please contact your sales representative. - Page 16 Version Date Description 2023/9/8 Preliminary version...
