CTC Union IGS-402SM-4PH24 Quick Installation Manual

CTC Union IGS-402SM-4PH24 Quick Installation Manual

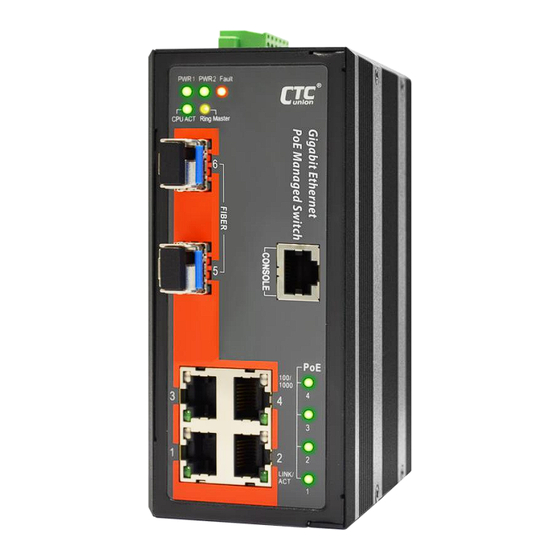

Industrial 4x10/100/1000mbps rj-45+1x100/1000mbps sfp+1x100/1000/2.5gbps sfp with 4xpoe managed switch (hardened)

Advertisement

Quick Links

Quick Installation Guide
IGS-402SM-4PH24
IGS-402SM-4PHE24
Industrial 4 x 10/100/1000Mbps RJ-45 + 1 x 100/1000Mbps SFP + 1 x
100/1000/2.5Gbps SFP with 4 x PoE Managed Switch (Hardened)
sales@ctcu.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the IGS-402SM-4PH24 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CTC Union IGS-402SM-4PH24

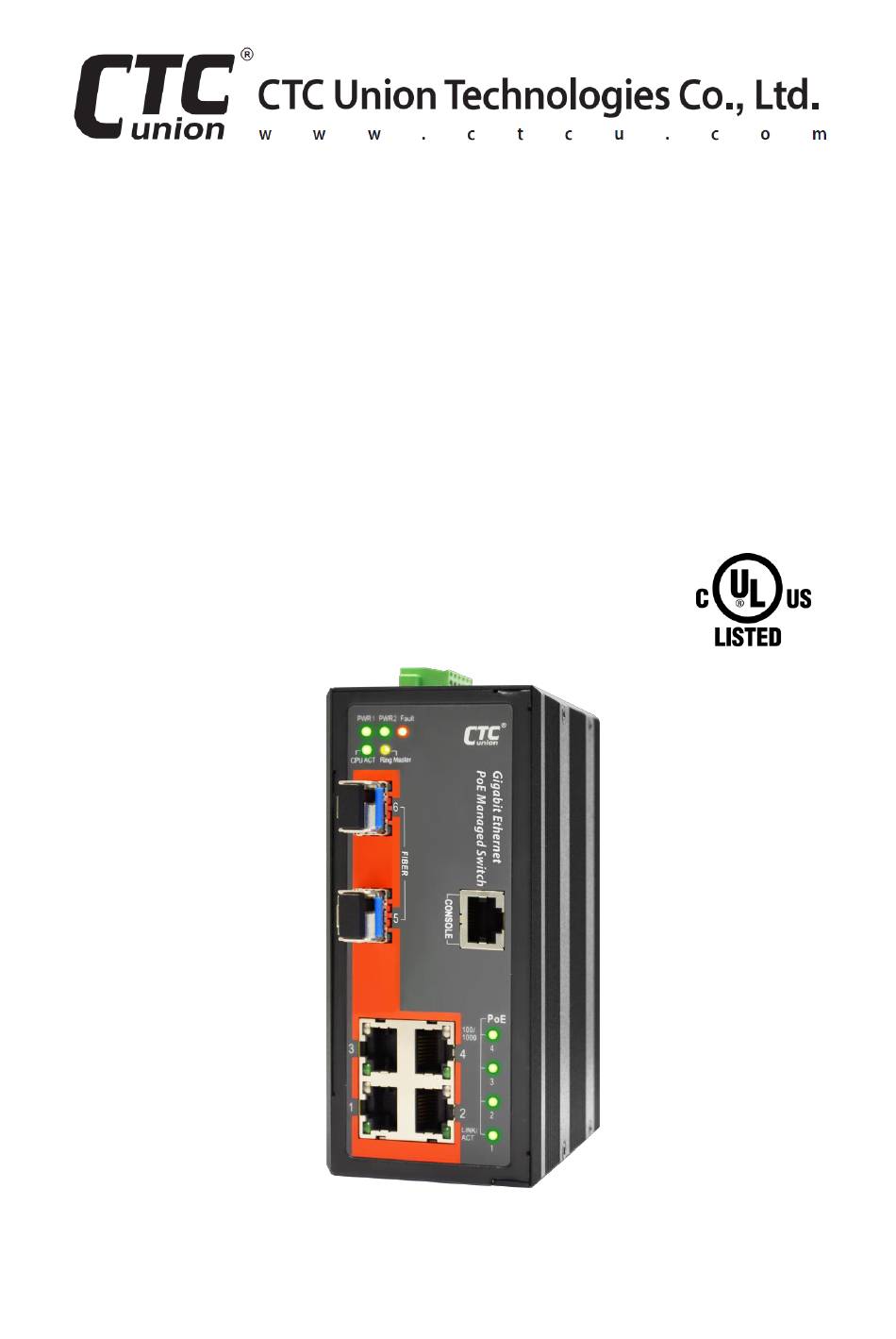

  • Page 1 Quick Installation Guide IGS-402SM-4PH24 IGS-402SM-4PHE24 Industrial 4 x 10/100/1000Mbps RJ-45 + 1 x 100/1000Mbps SFP + 1 x 100/1000/2.5Gbps SFP with 4 x PoE Managed Switch (Hardened) sales@ctcu.com...
  • Page 2 8F, No. 60 Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2020 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
  • Page 3 CTC Union Technologies makes no warranty, representation, or guarantee regarding the suitability of its products for any particular purpose, nor does CTC Union assume any liability arising out of the application or use of any product and specifically disclaims any and all liability, including without limitation any consequential or incidental damages.
  • Page 4: Table Of Contents

    Table of Contents Introduction .................. 5 Package List ................. 5 Features ..................5 Access to Command Line Interface (CLI) ........6 ..................6 ONSOLE ONNECTION /SSH C ..................7 ELNET ONNECTION Access to Web-Based Management Interface ......8 Specifications ................9 ....................
  • Page 5: Introduction

    Introduction IGS-402SM-4PH(E)24 models are managed industrial grade Gigabit PoE (Power over Ethernet) switches with 4 x 10/100/1000Base-T RJ45 ports (with PoE function), 1 x 100/1000Base-F(X) SFP and 1 x 100/1000/2.5GBase-X SFP. Housed in rugged DIN rail or wall mountable enclosures, these switches are designed for harsh environments, such as industrial networking and intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.
  • Page 6: Access To Command Line Interface (Cli)

    Access to Command Line Interface (CLI) IGS-402SM-4PH(E)24 models are managed Gigabit PoE switch devices. Initial configuration (assignment of IP address) may be accomplished via the RS-232 console and a PC or laptop running terminal emulation software or via RJ45 Ethernet port running Telnet or SSH.
  • Page 7: Telnet/Ssh Connection

    Telnet/SSH Connection To use Command Line Interface (CLI), you can also choose to access the device through a Telnet/SSH connection via TCP/IP network over Ethernet ports. For initial operation, use the default TCP/IP settings (10.1.1.1) to login to the device. Default TCP/IP settings: IP Address: 10.1.1.1 Subnet Mask: 255.255.255.0...
  • Page 8: Access To Web-Based Management Interface

    Access to Web-Based Management Interface To enter the web-based management interface for the first time or after returning the device back to factory defaults, input the default IP 10.1.1.1 address “ ” in your web browser. Then, a standard login prompt will appear depending on the type of browser used.
  • Page 9: Specifications

    Specifications Ethernet Interface • Standards: IEEE802.3 (10Base-T), 802.3u (100Base-TX), 802.3ab (1000Base-T) • RJ-45 (shielded) Ports: 4 ports • Speed: 10/100/1000M (Auto) Optical • Standards: IEEE802.3u (100Base-FX), 802.3z (1000Base-X) , 802.3cb (2.5GBase-X) • SFP-Based Slots: 2 slots (Support DDMI) • Speed: 1 x 100/1000Mbps (Port 5) & 1 x 100/1000/2.5Gbps (Port 6) Switch Features •...
  • Page 10: Mechanical

    • Dimensions: 106 mm (D) x 62.5 mm (W) x 135 mm (H) • Mounting: DIN-Rail, Wall Mount (Optional) • Weight: 715 g Environmental • Operating Temperature: -10°C~60°C (IGS-402SM-4PH24); -40°C~75°C (IGS-402SM-4PHE24) • Storage Temperature: -40°C~85°C • Humidity: 5%~95% (Non-condensing) Certifications •...
  • Page 11: Panels

    Panels Figure 2. Top Panel Figure 1. Front Panel Description UTP RJ-45 ports (Support PoE function) SFP slot (Port 5 supports speed 100/1000Mbps) SFP slot (Port 6 supports speed 100/1000/2.5Gbps) Console port PoE LED indicators Power, Fault, CPU ACT & Ring Master LED indicators Link/ACT LED indicators for UTP RJ-45 ports Speed LED indicators for UTP RJ-45 ports Link/ACT LED indicators for fiber optic...
  • Page 12: Lan And Fiber Ports

    LAN and Fiber Ports IGS-402SM-4PH(E)24 models have 4 LAN ports (labeled 1~4) and 2 fiber ports (SFP based, labeled Fiber 5~6) on the front panel. The LAN ports that utilize shielded RJ-45 connectors support 10/100/1000M; while the fiber SFP ports support 100/1000M (Fiber 5) or 100M/1G/2.5G (Fiber 6).
  • Page 13: Console Port

    CONSOLE Port The RJ-45 port labeled “CONSOLE” is an RS-232 terminal port for local management. These models use a “light” CLI (Command Line Interface) in addition to a user friendly Web interface and industry standard SNMP. One RJ-45 to DB-9 cable is provided with this device. CONSOLE port pinouts and RS-232 DB-9 connector are illustrated below together with RJ-45 to DB-9 signal mapping information.
  • Page 14: Recommended Power, Alarm, Ground Wiring Scheme

    Recommended Power, Alarm, Ground Wiring Scheme DC Power Connection A removable terminal block on the top panel provides both power and alarm connections. Power can be provided through the dual inputs from separate sources (PWR1 & PWR2). One power supply is enough to power up the device.
  • Page 15: Alarm Relay Connection

    Alarm Relay Connection The alarm relay contact can be wired into an alarm circuit which senses an alarm condition when the contact is broken. The alarm relay is normally closed when there is no alarm condition. The alarm conditions are user programmable through management to include power, link faults or other fault conditions.
  • Page 16: Led Indicators

    LED Indicators Color Status Definition Power is connected and active at the PWR1/PWR2 input terminal PWR1 Green connection. PWR2 PWR1/PWR2 is not connected. One of the power inputs has fault condition Fault Amber Normal operation without power faults or Alarm DIP switch is disabled.
  • Page 17: Installation

    Installation The switch can be mounted on the wall or installed in DIN rail depending on your installation needs. When installing the wall-mounting bracket (optional accessory) and DIN rail bracket, be sure to correctly align the orientation pin. Figure 10. DIN Rail Figure 11.
  • Page 18 Version Date Description 2020/3/31 Use new document format Revise spec. CLI & WEB Info revision...

This manual is also suitable for:

Igs-402sm-4phe24
