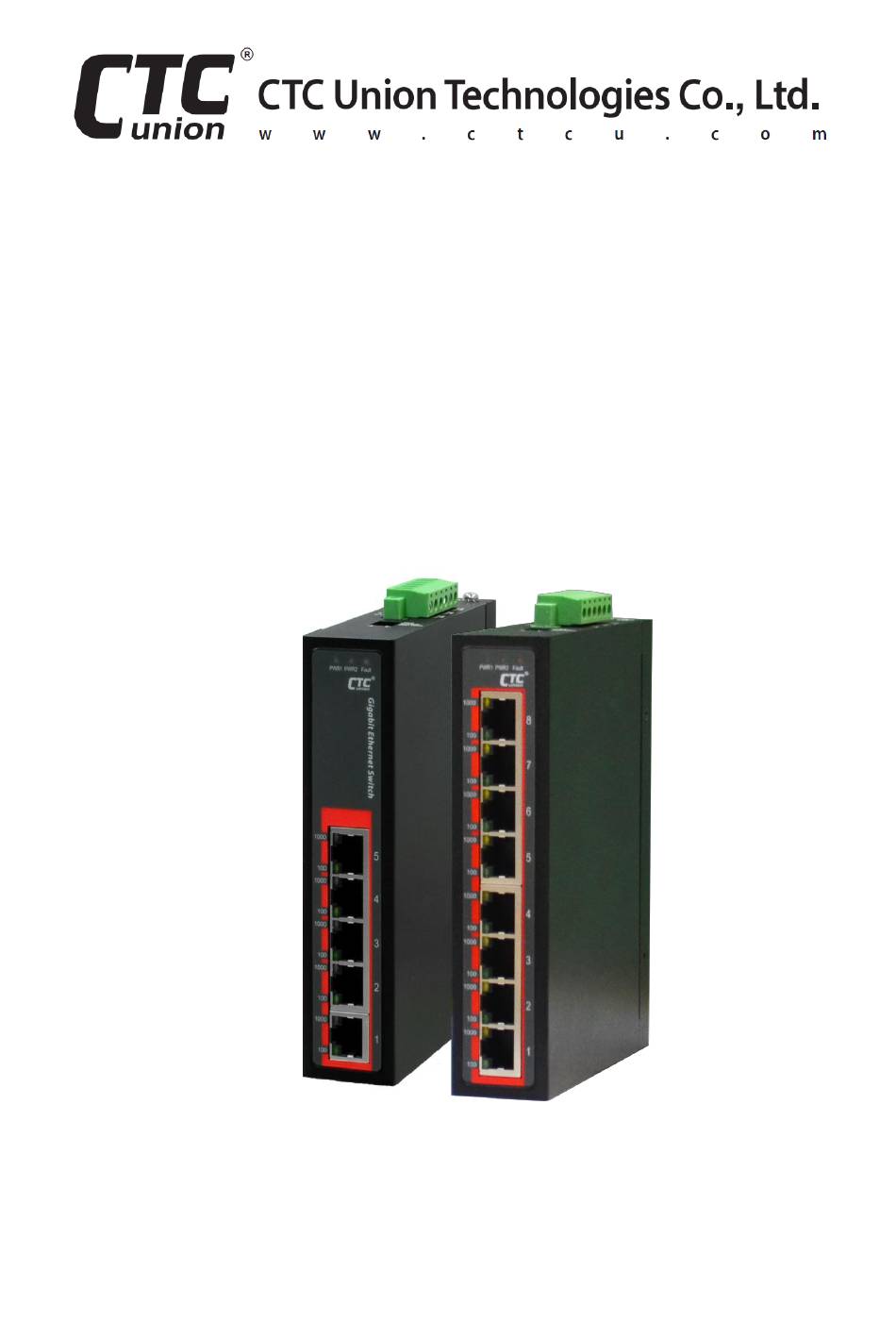

- Page 1 Quick Installation Guide IGS-500, IGS-800 IGS-500-E, IGS-800-E Industrial Grade Gigabit Ethernet Switches sales@ctcu.com...
- Page 2 8F, No. 60 Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2020 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
- Page 3 CTC Union Technologies makes no warranty, representation, or guarantee regarding the suitability of its products for any particular purpose, nor does CTC Union assume any liability arising out of the application or use of any product and specifically disclaims any and all liability, including without limitation any consequential or incidental damages.
- Page 4 Table of Contents Introduction .................. 5 Package List ................. 5 Features ..................5 Specifications ................6 .................... 6 THERNET NTERFACE ......................6 OWER ...................... 6 ECHANICAL ....................6 NVIRONMENTAL ....................7 ERTIFICATIONS MTBF (MIL-HDBK-217) ..................7 Panels ................... 8 DIP Switch..................9 Recommended Power, Alarm, Ground Wiring Scheme ...

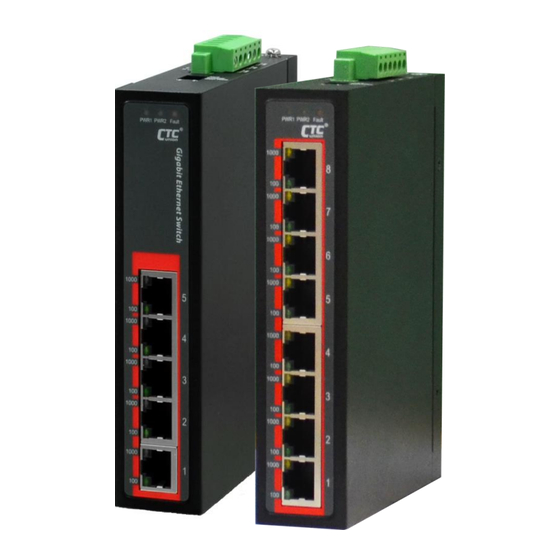

- Page 5 Introduction IGS-500-(E) & IGS-800-(E) are 5-port and 8-port 10/100/1000Base- T Gigabit Ethernet switches that provide stable and reliable Ethernet transmission. Housed in rugged DIN rail or wall mountable enclosures, these switches are designed for harsh environments, such as industrial networking and intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.
- Page 6 Specifications Ethernet Interface • Standards: IEEE802.3, 802.3u, 802.3ab • Connector Type: RJ-45 (shielded) • Number of Ports: 5 ports — IGS-500-(E); 8 ports — IGS-800-(E) • Auto MDI/MDI-X • Speed: 10/100/1000Base-T • Duplex: Full/Half • Supports IEEE802.3x Flow Control • Store & Forward Switch •...
- Page 7 ➢ EN61000-4-5 (Surge) Level 3, Criteria B ➢ EN61000-4-6 (CS) Level 3, Criteria A ➢ EN61000-4-8 (PFMF, Magnetic Field) Field Strength: 300A/m, Criteria A • Shock: IEC 60068-2-27 • Freefall: IEC 60068-2-32 • Vibration: IEC 60068-2-6 MTBF (MIL-HDBK-217) • IGS-500-(E): 1,154,166 Hours • IGS-800-(E): 747,984 Hours...
- Page 8 Panels Figure 2. Top Panel Figure 1. Front Panel Description UTP RJ-45 ports Power 1, Power 2, Fault LED indicators DIP switch Power & Alarm connections Earth ground connector Earth ground sign...
- Page 9 DIP Switch Function Status Description Provide alarm relay and fault LED Enable indication if there is a power failure in one supply. Disable alarm relay and fault LED Alarm indication if there is a power failure in one supply. Connecting to a single Disable* power source, place this switch to Disable position to turn off this...
- Page 10 Recommended Power, Alarm, Ground Wiring Scheme DC Power Connection A removable terminal block on the top panel provides both power and alarm connections. Power can be provided through the dual inputs from separate sources (PWR1 & PWR2). One power supply is enough to power up the device.
- Page 11 Alarm Relay Connection The alarm relay contact can be wired into an alarm circuit which senses an alarm condition when the contact is broken. The alarm relay is normally closed when there is no alarm condition. The alarm conditions are user programmable through management to include power, link faults or other fault conditions.
- Page 12 LED Indicators Color Status Definition Power is connected and active at the PWR1/PWR2 input terminal PWR1 Green connection. PWR2 PWR1/PWR2 is not connected. One of the power inputs has fault condition (Alarm DIP switch must be Fault Amber enabled). Normal operation without power faults or Alarm DIP switch is disabled.
- Page 13 Installation The switch can be mounted on the wall or installed in DIN rail depending on your installation needs. When installing the wall-mounting bracket (optional accessory) and DIN rail bracket, be sure to correctly align the orientation pin. Figure 8. DIN Rail Figure 9.
- Page 14 Version Date Description 2020/7/31 Use new document format Revise spec.
