2.1 Drive / Seating Function Indicators
A
C

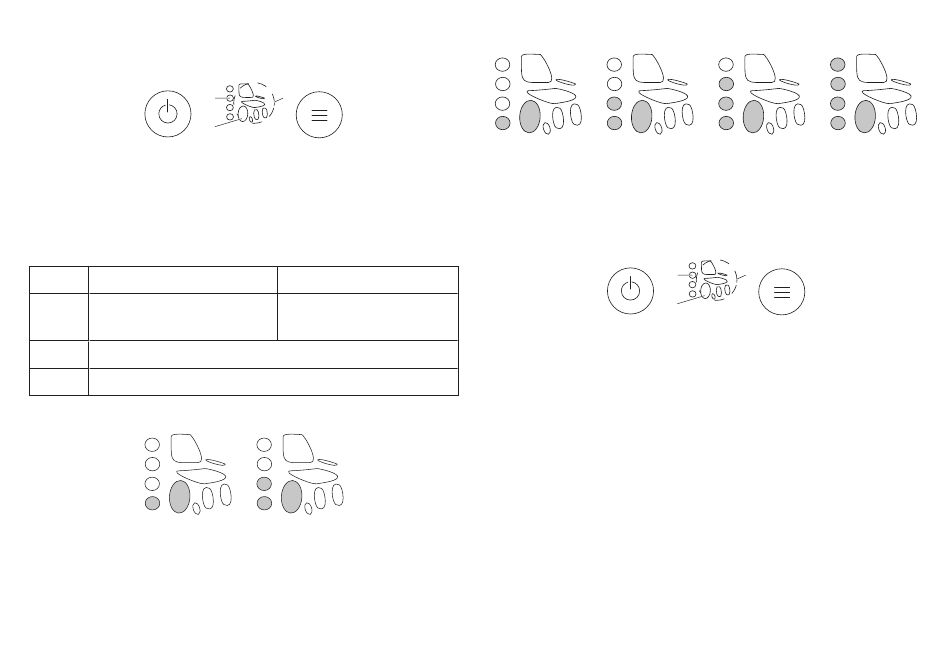

Drive and seating function indicators A to C are in the centre of the
remote module and contain LED lights that light up, pulse or flash
depending on the seating function, drive profile, and status (inhibit or
fault).
The drive and seating functions are indicated by the:
ACU
Attendant drive function
A
indicator
B
C
Attendant Drive Function Indicator (ACU Only)
The attendant drive function indicator shows the selected attendant
drive function using one or more LEDs. There can be up to four
attendant drive functions, one is set as a factory default.
1608055-E
B
CR and CR-LF
Compact remote drive
function indicator
Seating indicator
Drive indicator
Drive Function Indicator (CR and CR-LF Only)
The drive function indicator shows the selected compact remote drive
function using one or more LEDs. There can be up to 4 drive functions,
two are set as a factory default. For changing the drive function, refer
to 3.4 Mode Button, page 15.
Drive Function Indicator
A
C
The drive function indicator C lights up in combination with or
without other indicators when:
Power wheelchair is ready to drive, refer to 3.6.1 Attendant-in-
l
charge Indication (Attendant Control Unit), page 17 and 3.6.2
User-in-Charge Indication (Compact Remote Module), page 17.
A new drive function has been selected.
l
Power wheelchair can be driven at reduced speed only, refer to
l
3.6.6 Drive Slow-down Indication, page 19.
Joystick is not in centre position, refer to 3.6.5 OON Indication,
l
page 18.
Power wheelchair can not be driven at all, refer to 3.6.8 Blocked
l
Function Indication, page 19 and 3.5 Lock Mode, page 16.
2 Components
